Sliding Folding Bifold Barn Door Hardware

Model NO.: YMXT-ZD01
Ref.NO.: 150204-3469
Brief Descritpion: Folding Sliding Barn door hardware
Position: For interior door use
Application: Residential
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile Size: 40x6mm
Rail Length: Each rail length could be 1500mm(59inch),1700mm(67inch),1930mm(76inch) and so on.
Max Loading: 80kg(176LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: N/A

Details

More Introduction

This is the classic bifold barn door hardware. The barn door was usually used on both sides of the doorway against the wall. This door is perfect for a variety of decor styles, such as rustic style, industrial style, nordic, modern style, etc. It has become a choice for more and more households globally.

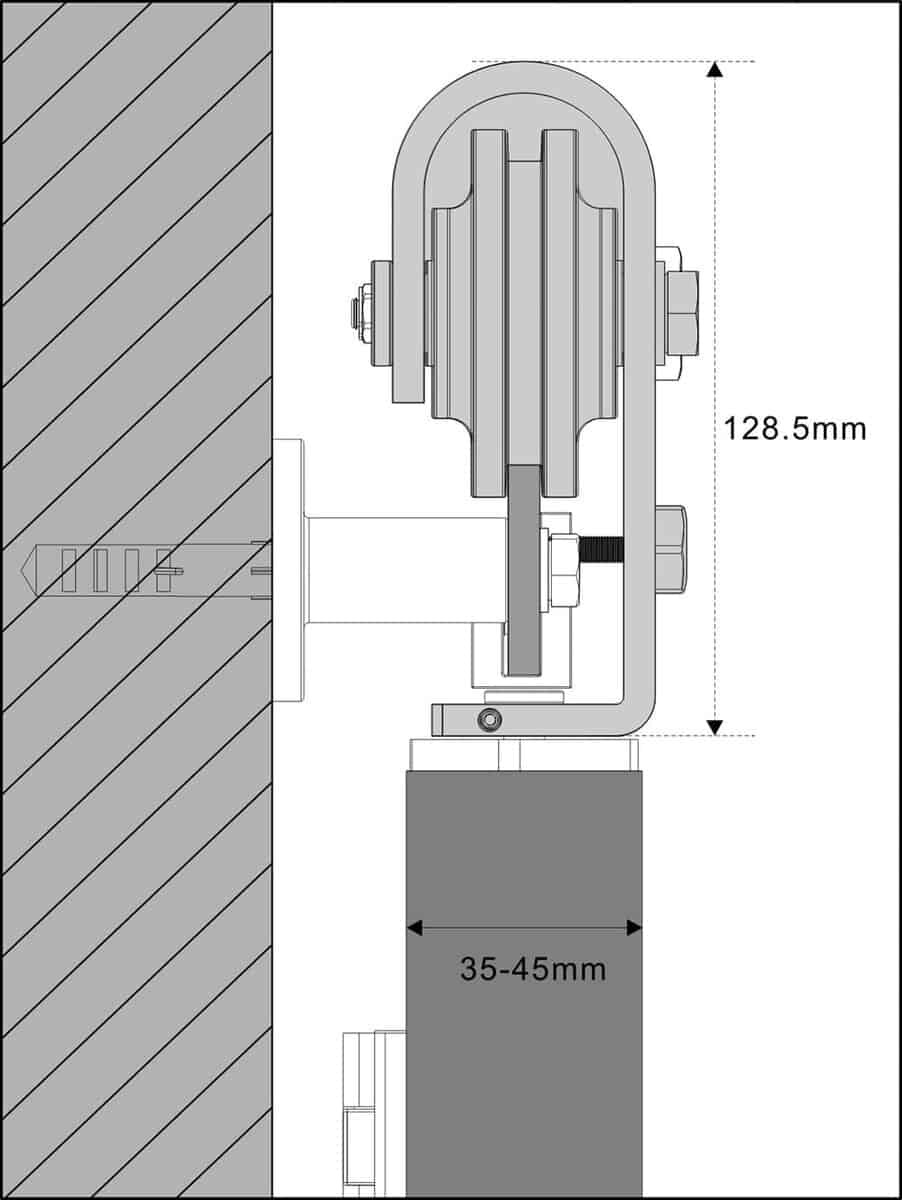

Dimension

Dimension

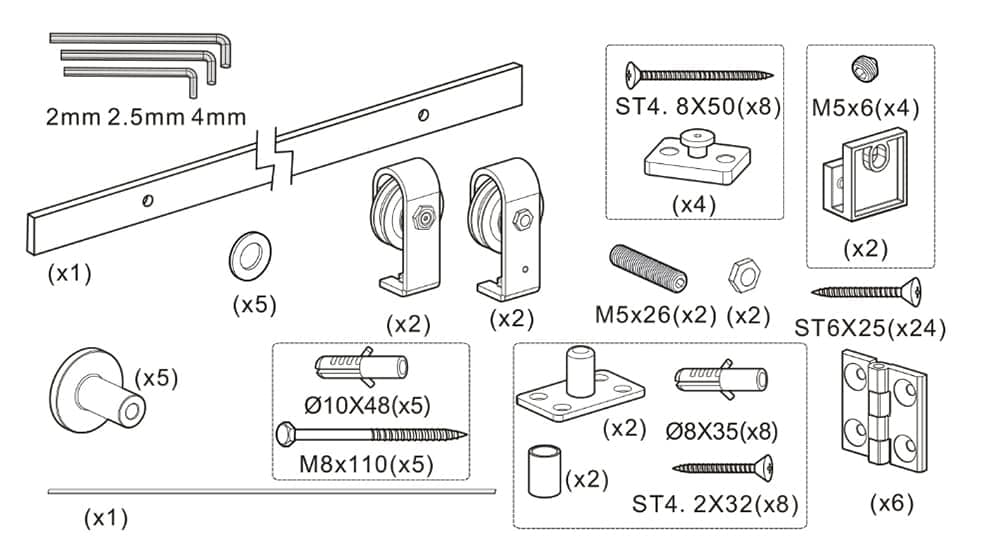

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 77sets or 56sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1950x1100x80mm
QTY/Pallet two options: 77or 56 sets
Pallet Size 204x93x107cm  or 204x93x82cm
Loading QTY 20GP:924sets  40GP:1848sets.   40HQ:2016sets
