Premium Black Powder Coated Sliding Barn Door Floor Guide for Enhanced Stability and Smooth Operation

Model NO.: QT-ZBQ11
Ref. NO.: 159900-0008
Brief Descritpion: Floor guide for sliding barn doors
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Steel
Surface Finish: Black powder coated
Working Cycles: 50000cycles
For Door Type: Wooden doors
For Door thickness: 35mm(1-3/8inch) to 45mm(1-3/4inch)
Features: Stainless steel is also available
Request a Quote

Details

Key Features:

  • Application: Suitable for both residential and commercial use, enhancing stability in sliding doors.
  • Material: Constructed from high-strength steel with a durable black powder-coated finish; stainless steel option available.
  • Compatibility: Designed for wooden doors with a thickness of 35mm (1-3/8 inch) to 45mm (1-3/4 inch).
  • Durability: Capable of withstanding up to 50,000 working cycles, ensuring long-lasting performance.
  • Silent Operation: Equipped with a wheel and bearing system to minimize noise during operation, promoting a quiet environment.
  • Easy Installation: Standardized accessories and adaptable design allow for straightforward DIY installation without the need for professional skills.
  • Versatile Use: Ideal for wardrobes, kitchen partitions, and balcony sliding doors, aligning with modern interior design aesthetics.

Packaging Details:

  • Packing Method: Each set is packed in a poly bag, with one set in an inner box, and 60 boxes in a carton.
  • Sales Unit Packing Type: Inner box
  • Sales Unit Packing Size: 115mm x 55mm x 50mm
  • Quantity per Carton: 60 sets
  • Carton Size: 375mm x 250mm x 270mm
  • Loading Quantity: 66,000 pieces for a 1x20GP container

This floor guide is designed to improve the overall quality of sliding door systems, providing users with a smooth and elegant experience. Ideal for distributors looking to offer high-quality solutions in the sliding door market.

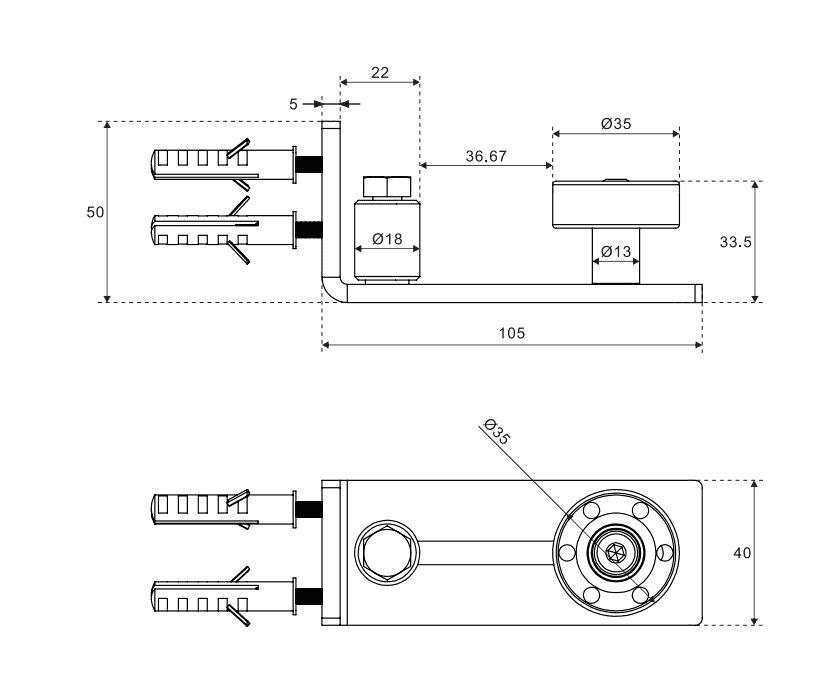

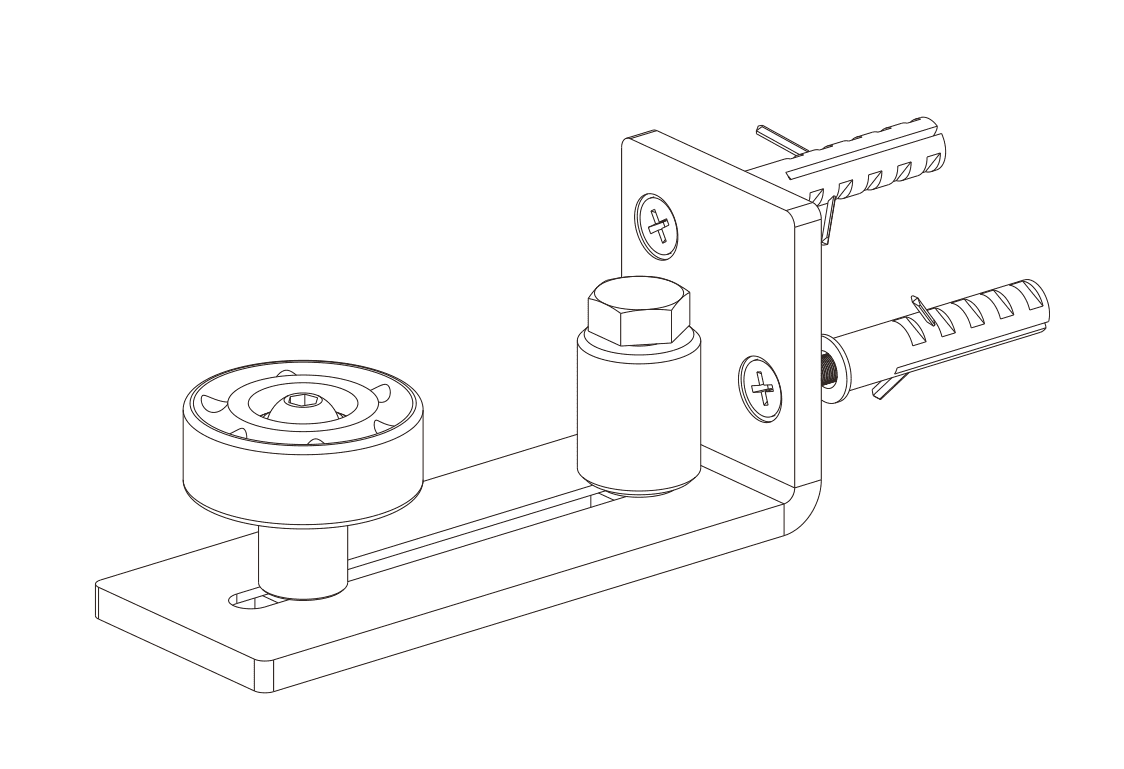

Illustration of a mechanical assembly with a metal bracket, round gear, bolt, and two wall anchors.Technical drawing of a mechanical component showing dimensions, circular and rectangular elements, and two lever mechanisms.
