Brushed Stainless Steel Sliding Barn Door Guide for Smooth Interior Operation

Model NO.: QT-ZBQ10
Ref. NO.: 159900-5689
Brief Descritpion: Stainless steel barn door guide for wall mounting
Position: For interior door use
Application: Both Residential and commercial use
Opening style: Sliding opening
Main Material: Stainless steel
Surface Finish: Brushed
For Door Type: Barn doors

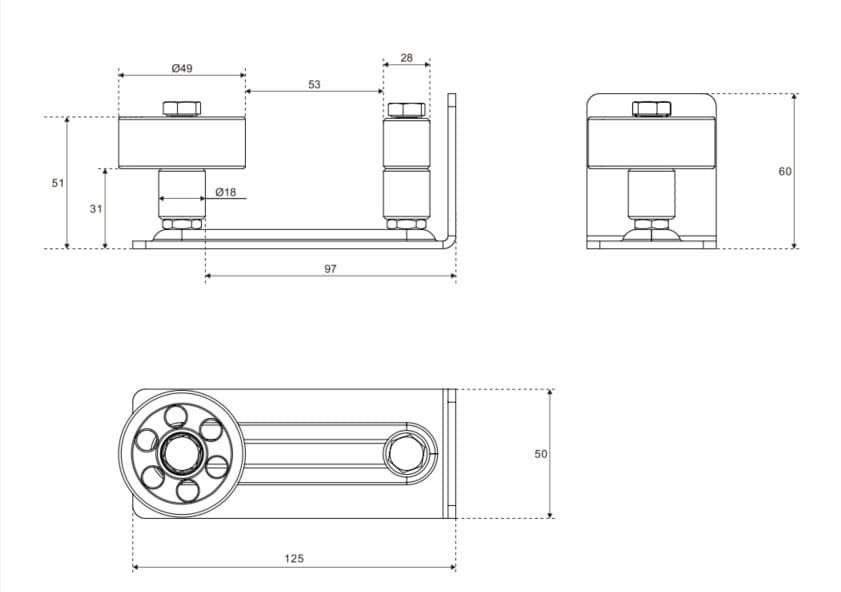

Length： 125mm (4.9inch)
Hole diameter on wall: 8mm (0.3inch)
Hole Center Distance: 20mm (0.79inch)
For Door thickness: 30mm(1.18inch) to 45mm(1.77inch)
Request a Quote

Description



  • Ref. NO.: 159900-5689
  • Description: Durable stainless steel barn door guide designed for wall mounting.
  • Position: Suitable for interior door applications.
  • Applications: Ideal for both residential and commercial use.
  • Opening Style: Sliding mechanism for smooth operation.
  • Material: High-quality stainless steel with a brushed surface finish.
  • Compatibility: Designed for barn doors with a thickness ranging from 30mm (1.18 inches) to 45mm (1.77 inches).
  • Dimensions:
    • Length: 125mm (4.9 inches)
    • Hole Diameter on Wall: 8mm (0.3 inches)
    • Hole Center Distance: 20mm (0.79 inches)

Key Features:

  • Smooth sliding operation due to a robust stainless steel wheel.
  • Versatile design accommodates various door thicknesses.
  • Ideal for enhancing the functionality and aesthetic of barn doors.

This product is a reliable choice for distributors looking to offer high-quality sliding door solutions.



By Allan Hu

Product Package & Shipping Size

Packing Method Each set is wrapped in an EPE bag and placed in a box, with 100 sets per carton.
Sales Unit Packing Type Carton
Sales Unit Packing Size 420mm x 300mm x 165mm
Loading Capacity Up to 40,000 pieces per 1x20GP Container
