Frameless Glass Alcove Sliding Shower Door with Stainless Steel Barn Door Hardware

Model NO.: LYF-FG01(TY-8805)
Ref. NO.: 150401-0191 (TY-8805)
Brief Description: Frameless glass shower door with Stainless steel barn door hardware
Position: For interior use
Opening Style: Sliding opening
Application: Both Residential and commercial use
Main Material: Stainless steel SS304, tempered glass
Surface Finish: Brushed stainless steel, clear glass
Shower size: L=1524mm(60inch), H=1905m(75inch), L=1524mm(60inch)or to be customized
Glass thickness: 8mm to 12mm

Details

More Introduction

This shower style is quite popular in North America, especially for a number of distinguished hotels like Marriot, Hilton, IHG, etc. The hardware is all made of high-grade stainless steel SS304, which makes the shower sturdy and durable. Plus the frameless glass brings a modern aesthetic look to the bathroom.

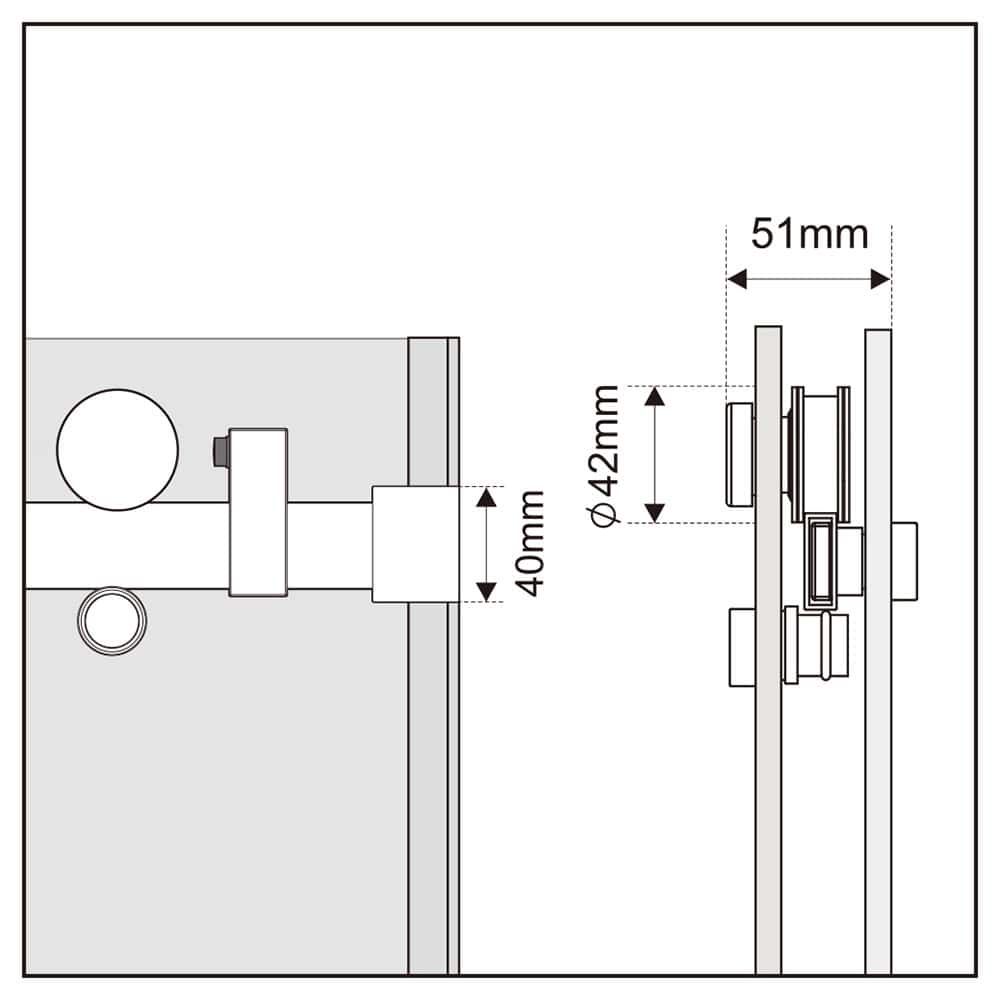

Dimension

Dimension

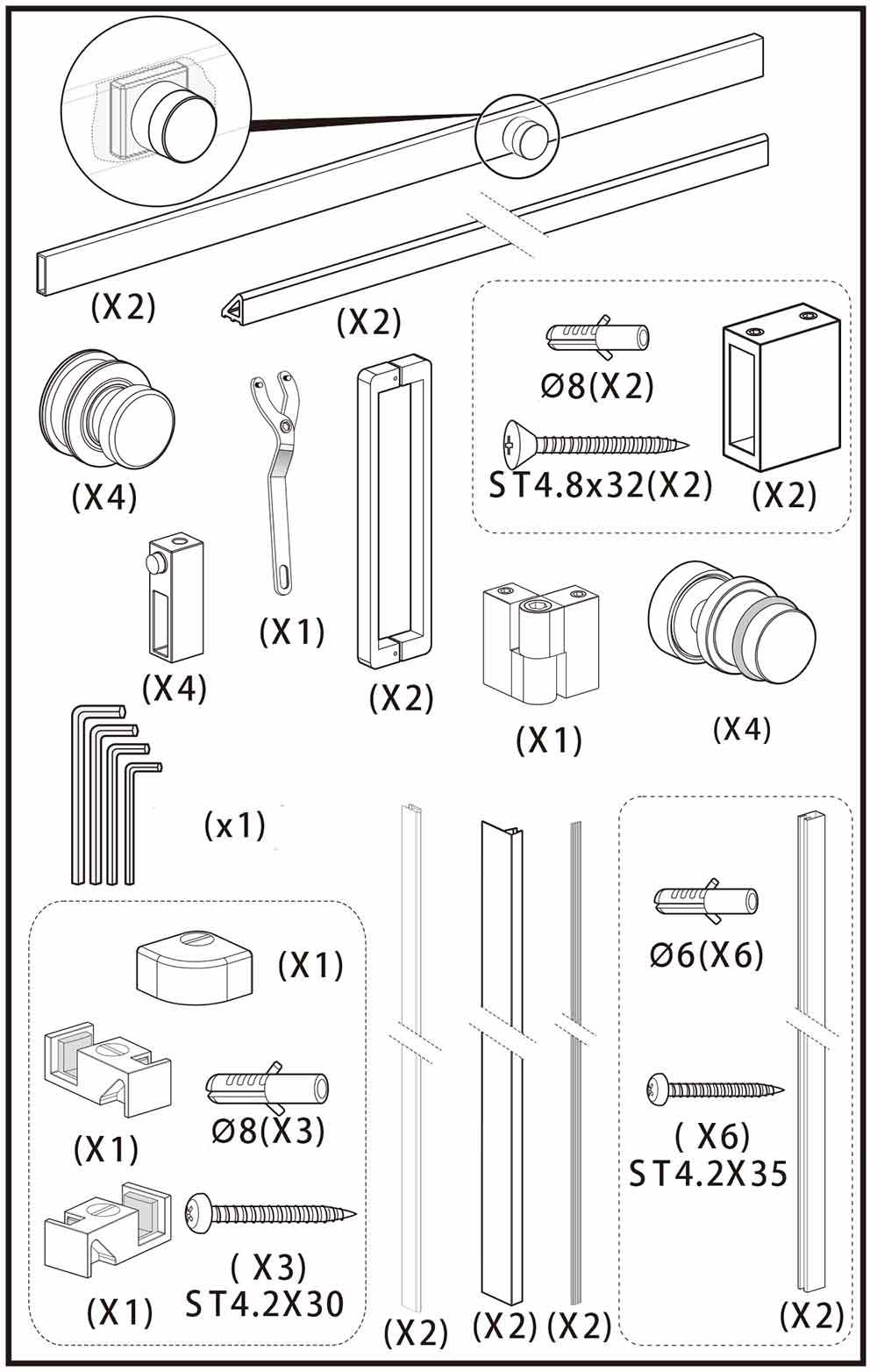

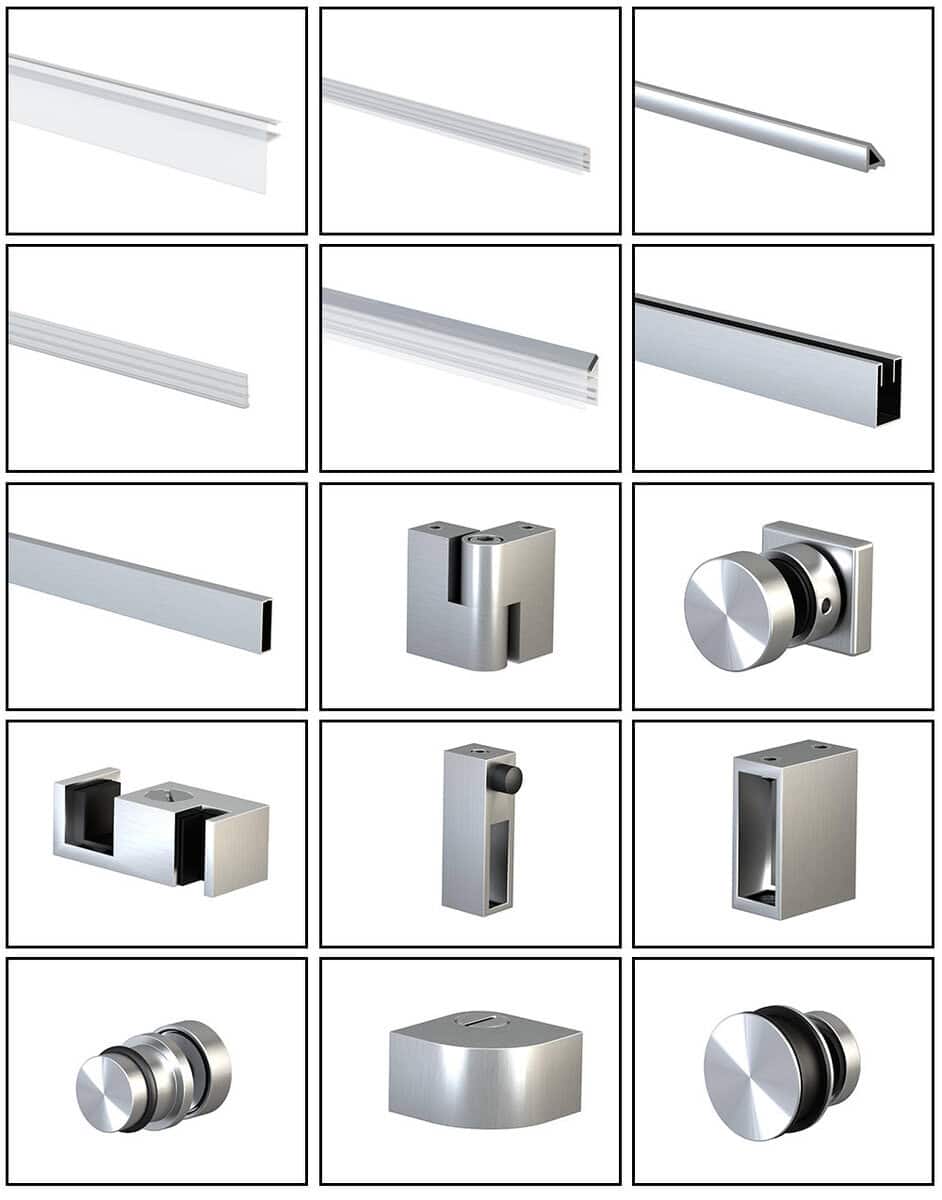

Part assembly

Part assembly

Part assembly


Product Package

Packing Method A complete set including 4 glass and 1 set sliding hardware, each part packed into a carton, with EPE or equivalent filling material inside the carton. Each carton is printed with a box mark showing the product model and packing data.
Sales Unit Packing Type Carton
Sales Unit Packing Size of glass 4×2030*865*45mm
Sales Unit Packing Size of hardware 2×1980*135*80mm
Loading QTY 60sets for 1x20GP and 130 sets for 1x40GP
