Glass Sliding Closet Door

Model NO.: MM-BL12&YGM02
Ref.NO.: 150900-0864&151802-0002
Brief Descritpion: One lite Closet Bypass Door 2132X1524mm(80inch x 60inch) with Sliding Door Hardware
Position: For interior Closet door use
Application: For residential use
Opening style: Sliding opening
Main Material: MDF
Surface Finish: PVC film
Door size 31in*78.6in*0.875in
Door Thickness 22mm
Others: 1. With bottom groove (to work with floor guide);
2. It’s One-piece slab wooden barn doors with 4mm tempered frosted glass.
Request a Quote

Details

Key Features:

  • Stunning Glass Design: The door includes a 4mm tempered frosted glass panel, seamlessly integrated into the door design.
  • Premium Construction: Constructed from high-density MDF, this door provides strength and durability.
  • Efficient Space Utilization: The sliding opening style efficiently saves space, making it ideal for installations in narrow areas.
  • Customizable and Versatile: Available in various designs to match your decor, this door can also be customized to fit your specific dimensions, ensuring a perfect fit for any closet space.

Technical Specifications:

  • Model Numbers: MM-BL12 & YGM02
  • Applications: Designed for interior closet use in residential settings
  • Door Dimensions: 31 inches x 78.6 inches x 0.875 inches (787mm x 1994mm x 22mm)
  • Door Thickness: 22mm (approximately 0.87 inches)
  • Material Composition: MDF with PVC film finish
  • Sliding System: Includes a robust 60-inch sliding track for smooth and effortless door movement
  • Additional Features: Equipped with a bottom groove, designed to work in conjunction with a floor guide for added stability during operation

Elevate your interior space with our One-Lite Closet Bypass Door, a perfect blend of functionality and aesthetic appeal. Its classic design ensures it will remain in style for years to come, making it a timeless addition to your home.

Product Package:

Packing Method A piece of full door (one-piece slabs) into a carton, with EPE or equivalent filling material inside the carton, then 10 cartons onto a pallet.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2060*850*100mm
QTY/Pallet 10PCS/PLT
Pallet size 2075*1050*860mm
Loading QTY 264PCS for 1x40HQ

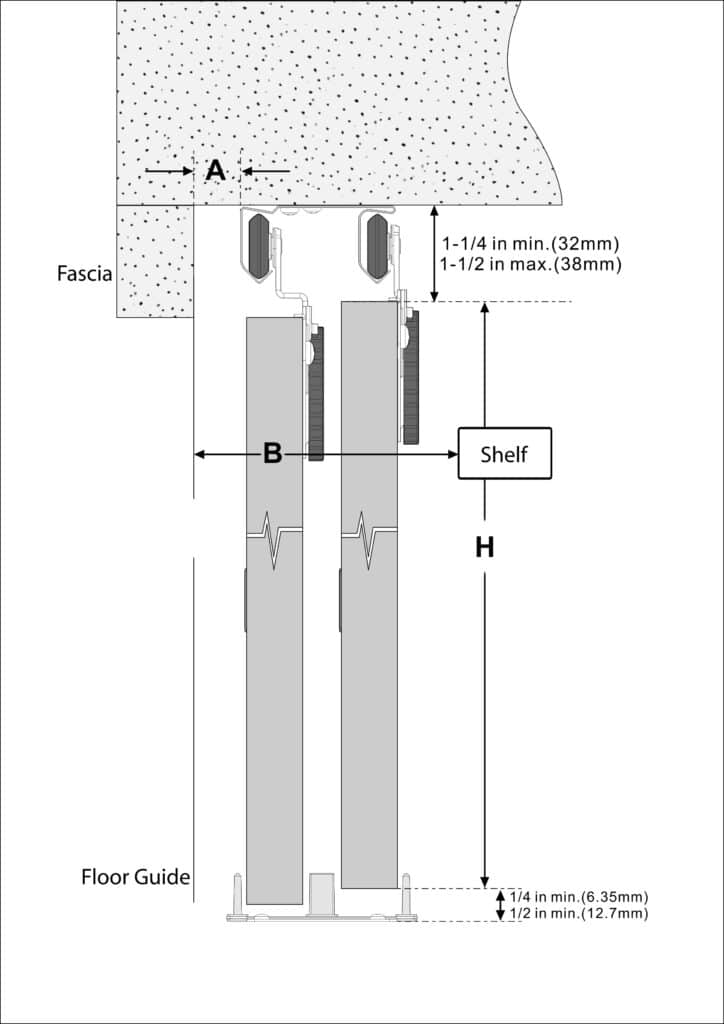

Diagram of the Glass Sliding Closet Door system showing precise measurements for fascia, shelf, floor guide, and dimensions A, B, H.

By Steven Huang
