Heavy Duty Hidden Track Sliding Pocket Door Hardware

Model NO.: YMXT-XC39
Ref.NO.: 150305-4244
Brief Description: MPP sliding pocket door system
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Aluminum, Carbon steel, Wood
Surface Finish: Anodization
Rail Profile size: 40x6mm
Rail Length: 1830mm(72inch), 2000mm(78-3/4inch), 2134mm(84inch), 2438mm(96inch)
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional

Details

More Introduction

Heavy-duty Door frame kits. Heavy gauge galvanized steel tube vertical uprights are 30% stiffer than wood-wrapped steel pieces. Self-adjusting floor brackets, drywall screws, and jamb screws are included. Less than 5lbs force is required to move the door. Anti-jump three-wheel hangers with high-quality ball bearing inside allow smooth and quiet door operation. Quick-release locking tab of the door clamp fixing could make remove the door without tearing apart the wall. A solid one-piece pine wood track header replaces the finger joint glued version making it durable. Track and steel vertical uprights can be cut to fit the different door opening sizes.

Dimension

Dimension

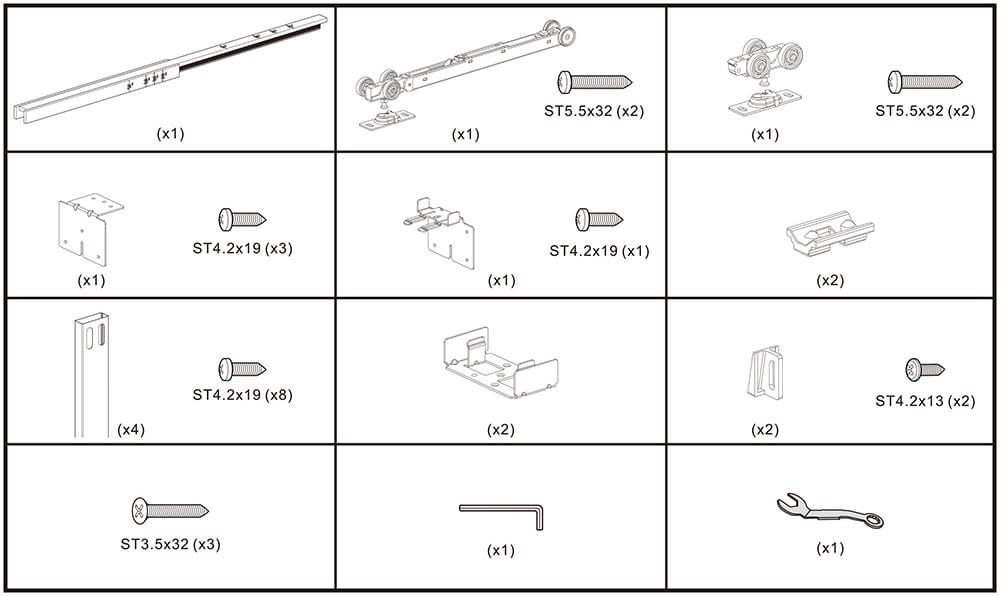

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 60 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2165*200*75mm
QTY/Pallet 60/PLT
Pallet size 2260*1150*1080mm
Loading QTY 600/20GP, 1200/40GP
