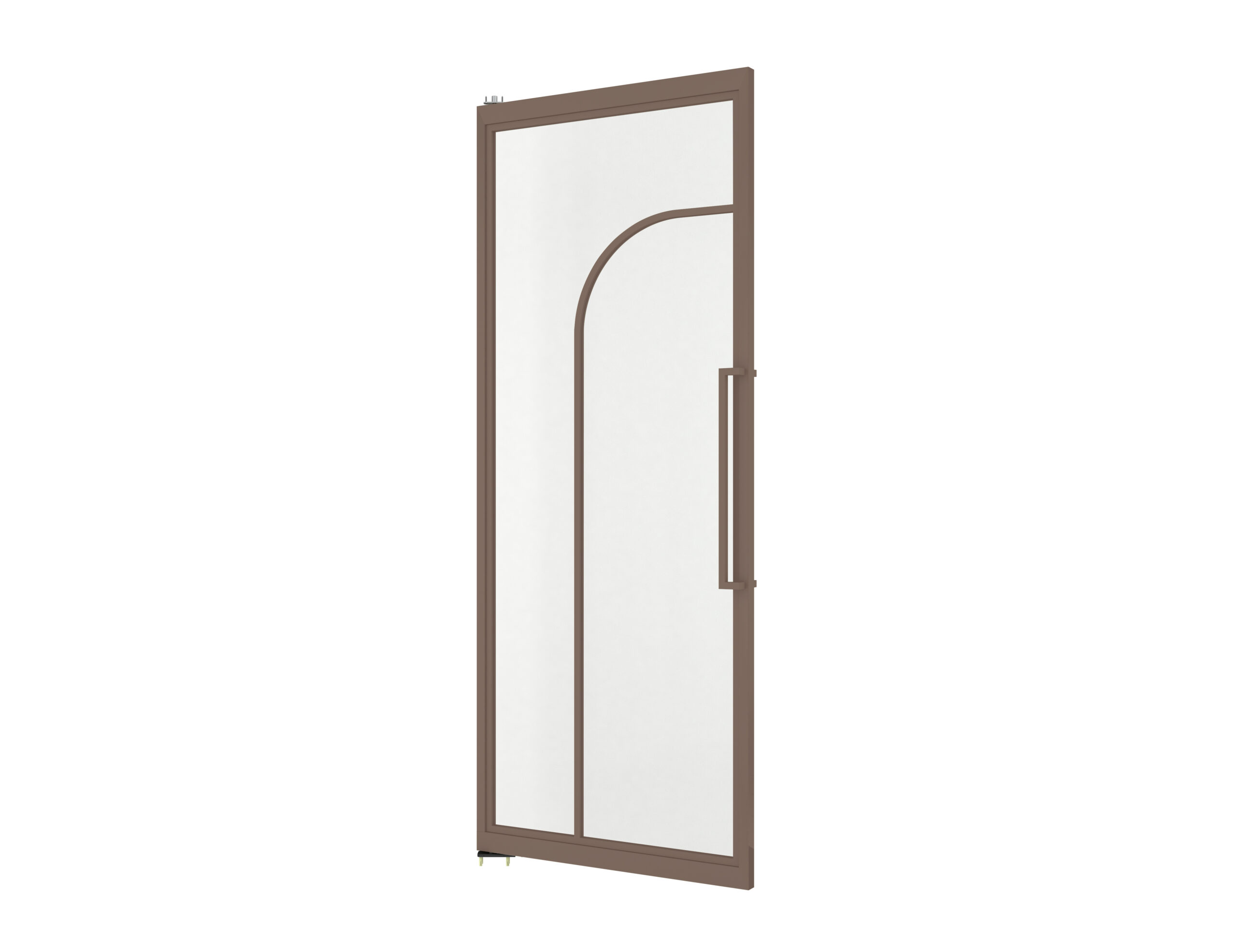

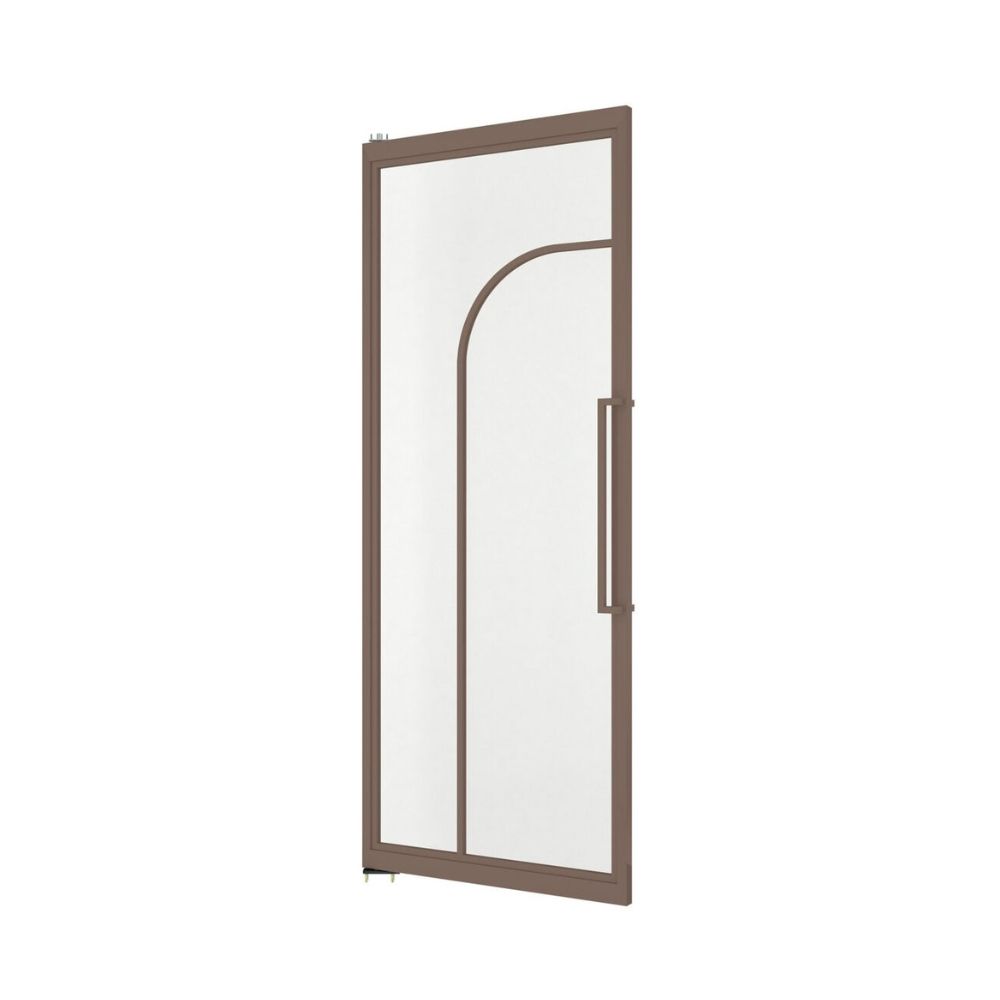

Metal Frame steel glass pivot door Residential and commercial use

Model NO.: TKM-YY24
Ref. NO.: 151000-3450
Brief Description: Metal Frame steel glass pivot door
Position: For interior door use
Application: Both Residential and commercial use
Opening style: Swing opening
Main Material: Carbon steel,Tempered glass
Surface Finish: RAL 8014 Bronze powder coating
Door size 2315x930mm or customized

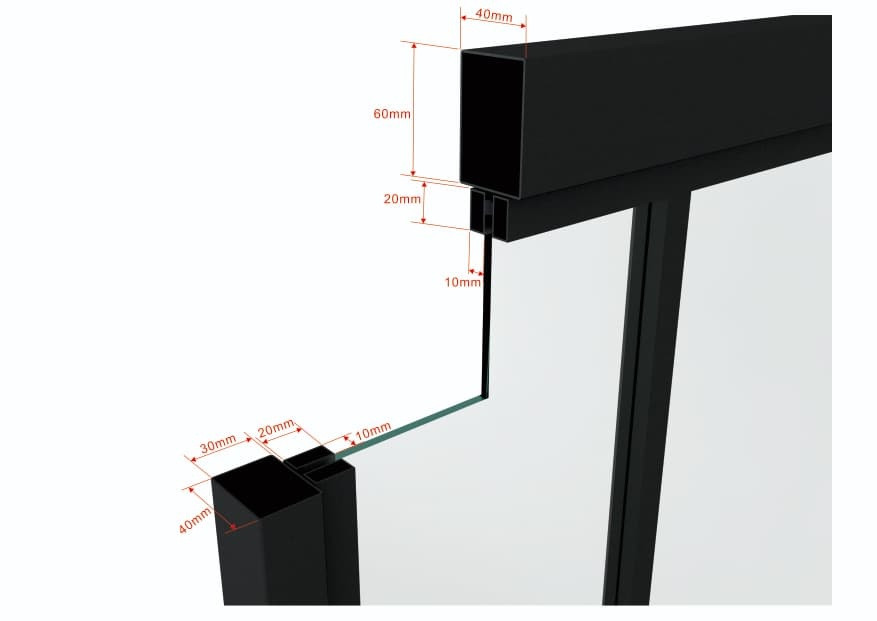

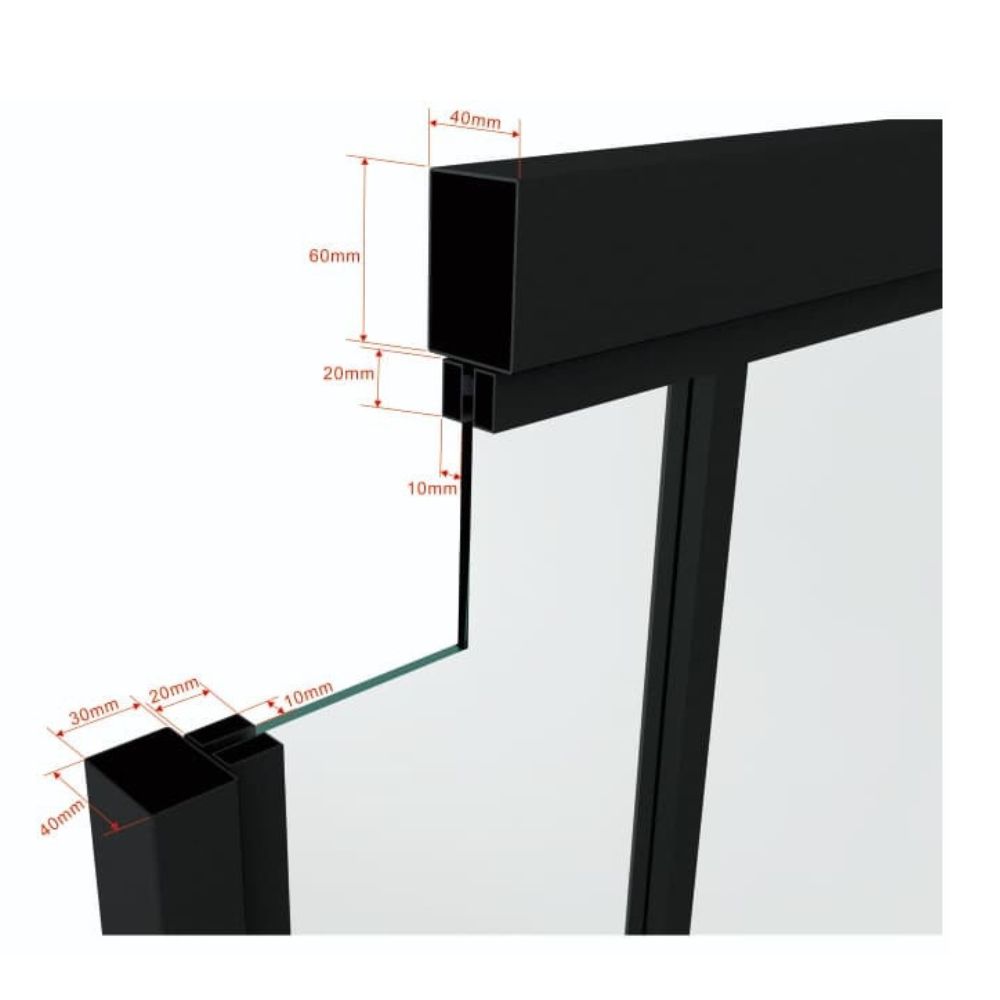

Door&Frame thickness 40mm
Glass thickness 4mm
Glass Pattern: Clear

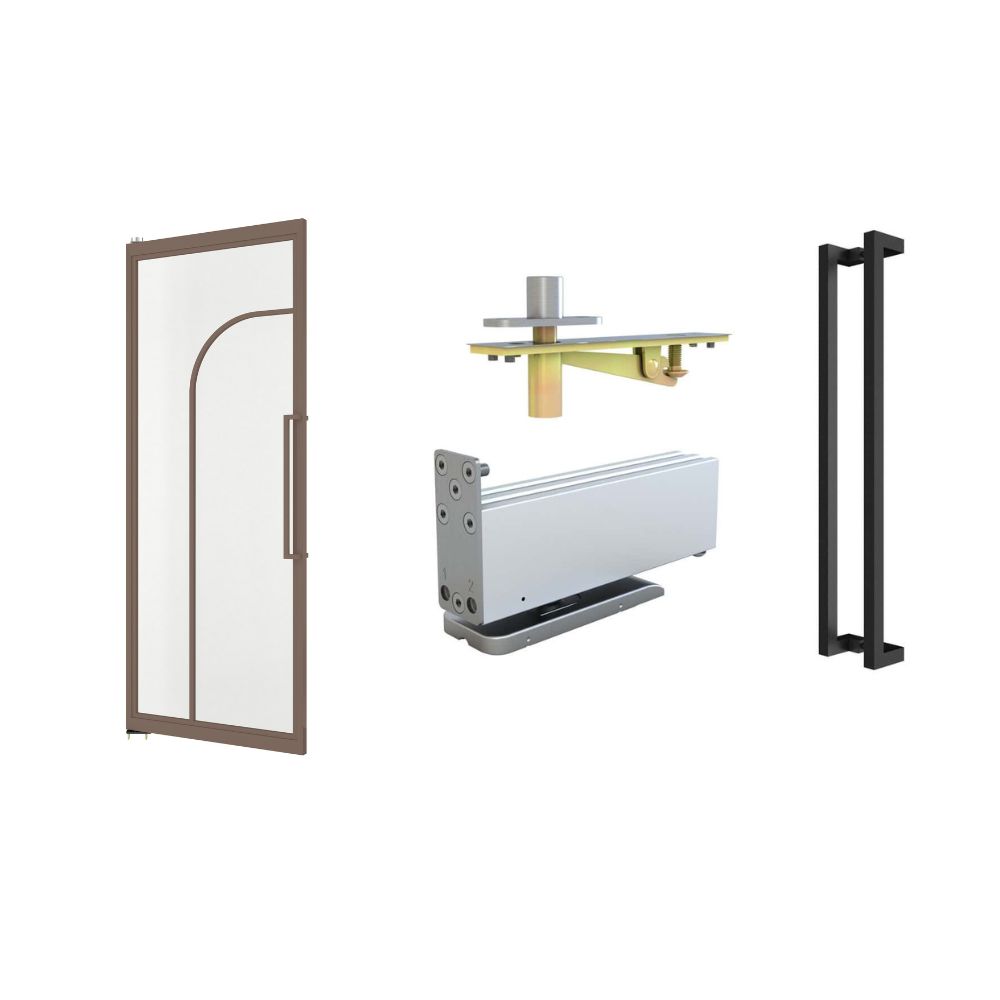

Others: With door frame and hinges,handles are also optional
Request a Quote

Description

Make a bold architectural statement with the TKM-YY24 Metal Frame Steel Glass Pivot Door (Ref. No. 151000-3450), a sophisticated interior feature that combines industrial elegance with innovative bidirectional functionality.

Key Features:

  • Warm Bronze Finish: The RAL 8014 bronze powder coating delivers rich, warm industrial character. This distinctive finish adds earthy sophistication while providing excellent protection against scratches and daily wear. The bronze tone creates a striking focal point that pairs beautifully with natural materials and contemporary palettes.
  • Industrial Steel & Glass Construction: The high-quality carbon steel frame provides outstanding structural strength, while the 4mm clear tempered glass panel invites abundant natural light. At 40mm thick, the door and frame system offers premium quality feel with excellent stability and sound insulation.
  • Elegant Bidirectional Operation: Experience the graceful, silent swing that pivot doors are celebrated for. A gentle push in either direction triggers smooth, one-motion operation that flows naturally without resistance. Each opening and closing becomes an effortless, elegant experience.
  • Advanced Soft-Close Technology: The integrated soft-close function ensures the door returns gently to the zero position after each use. The self-closing mechanism works automatically in both directions, while the hold-open function keeps the door positioned as needed—offering versatile convenience for daily life.
  • Modern Minimalist Aesthetic: Without visible door frames, the pivot design creates a seamless, frameless appearance that maximizes visual space. This clean, contemporary look adds architectural interest while maintaining the clean sightlines essential to modern interior design.

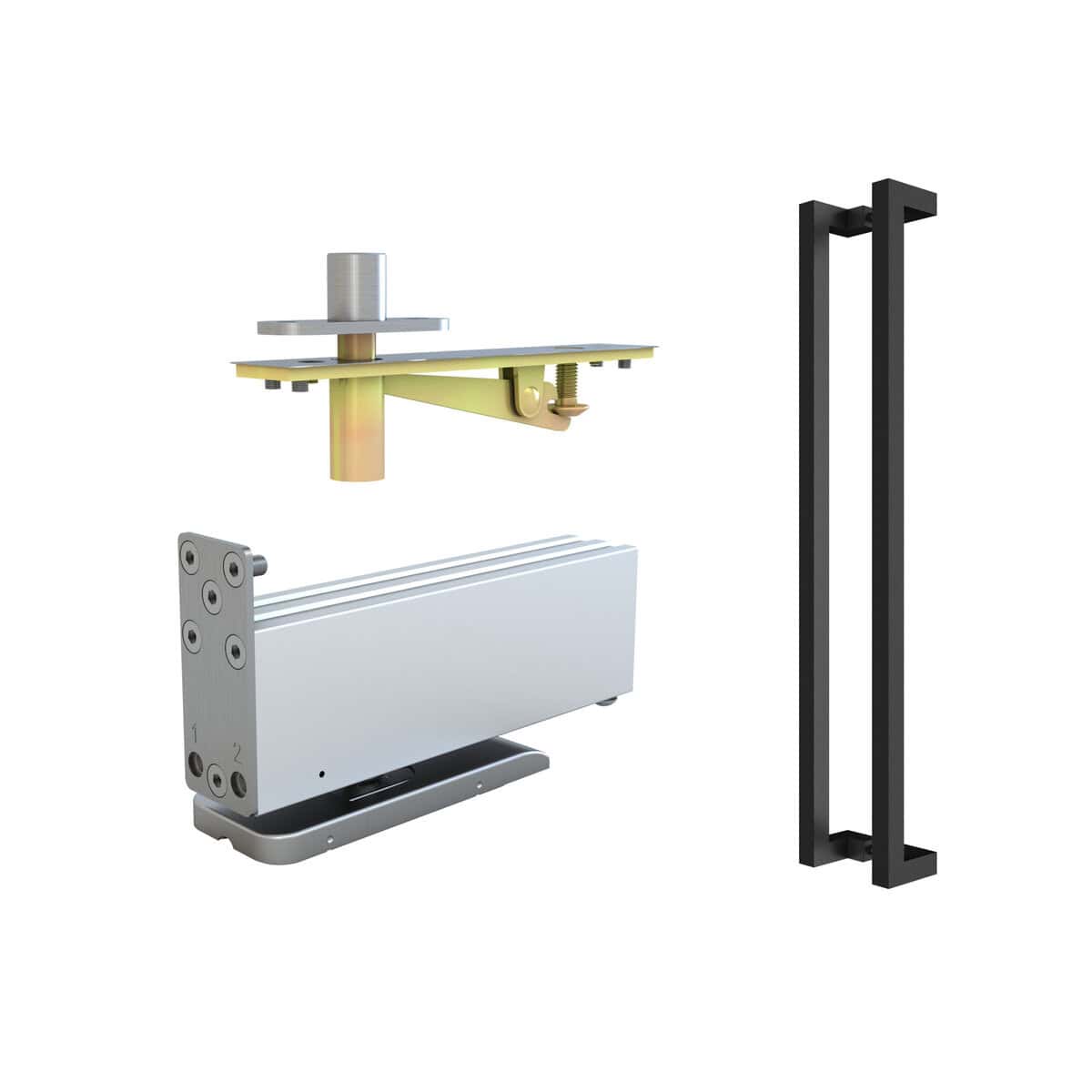

  • Complete Installation Ready: The TKM-YY24 arrives with door frame and precision-engineered pivot hinges for straightforward installation. Optional handle configurations allow customization to match your design preferences.
  • Versatile Interior Application: Suitable for both residential and commercial settings including entryways, feature walls, offices, and executive spaces. Standard 2315×930mm dimension or custom sizing available for your specific project requirements.

Partner with Us for Your Next Project:

At Tengyu, we specialize in delivering high-capacity door solutions for large-scale residential developments and commercial interior projects. The TKM-YY24 Pivot Door offers the perfect combination of architectural sophistication and practical innovation. We provide flexible ordering, technical support for pivot door installations, and reliable logistics to ensure your project stays on schedule and within vision.

Contact us today to discuss the TKM-YY24 Steel Glass Pivot Door and discover how our elegant door solutions can elevate your next interior application.

Product Package & Shipping Size

Packing Method Each door has a cardboard box with EPE strips and 4 corner protectors around the box,then a certain amount will be placed in a plywood pallet,this packing method is suitable for physical stores,if you need to sell online,we also have stronger mail order packaging.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2405*1055*80mm
QTY/Pallet 12PCS/PLT
Pallet size 2410*1065*1100mm
Laoding QTY 100PCS for 1x20GP and 220PCS for 1x40GP
