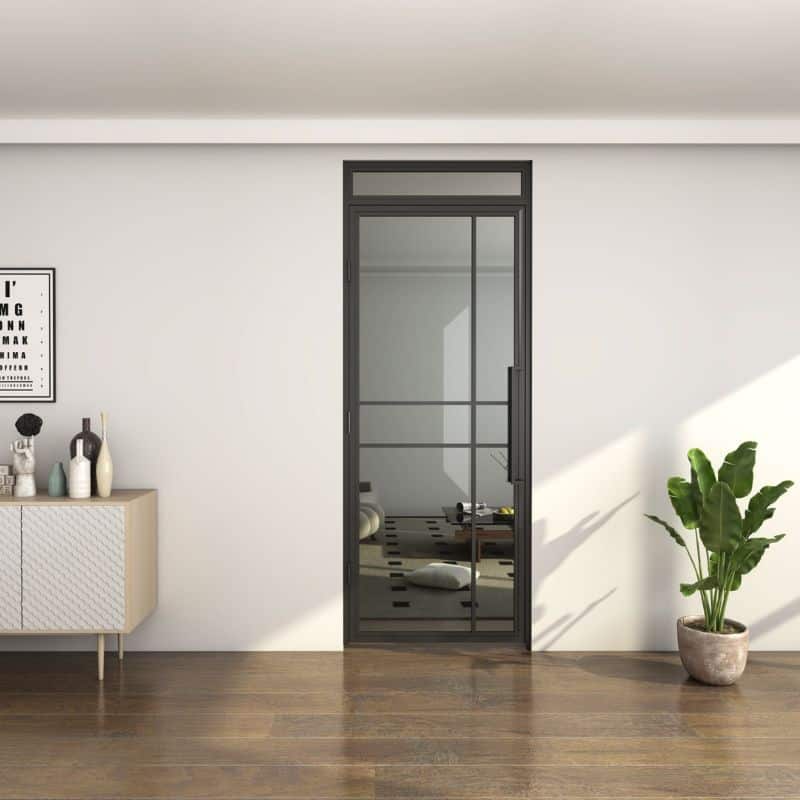

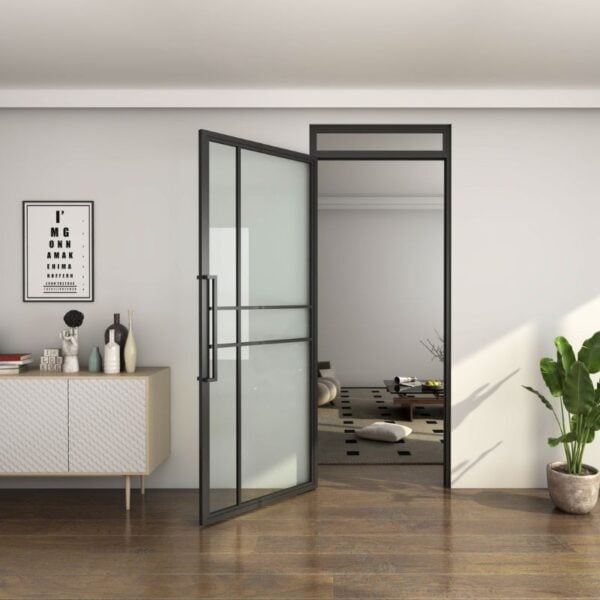

Steel & glass door with fanlight in white wall; sideboard left, potted plant right on wooden floor.

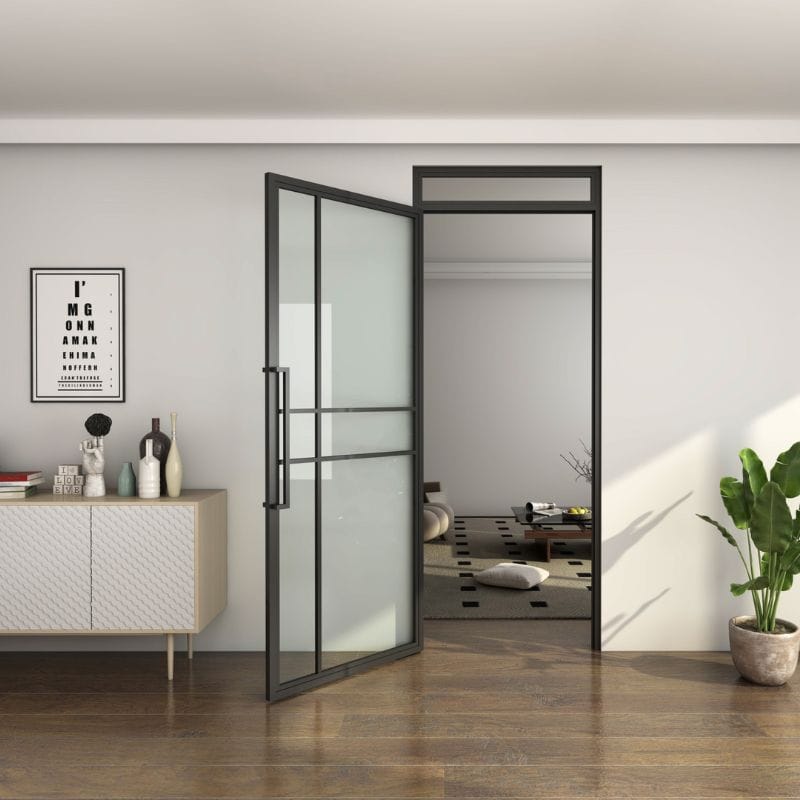

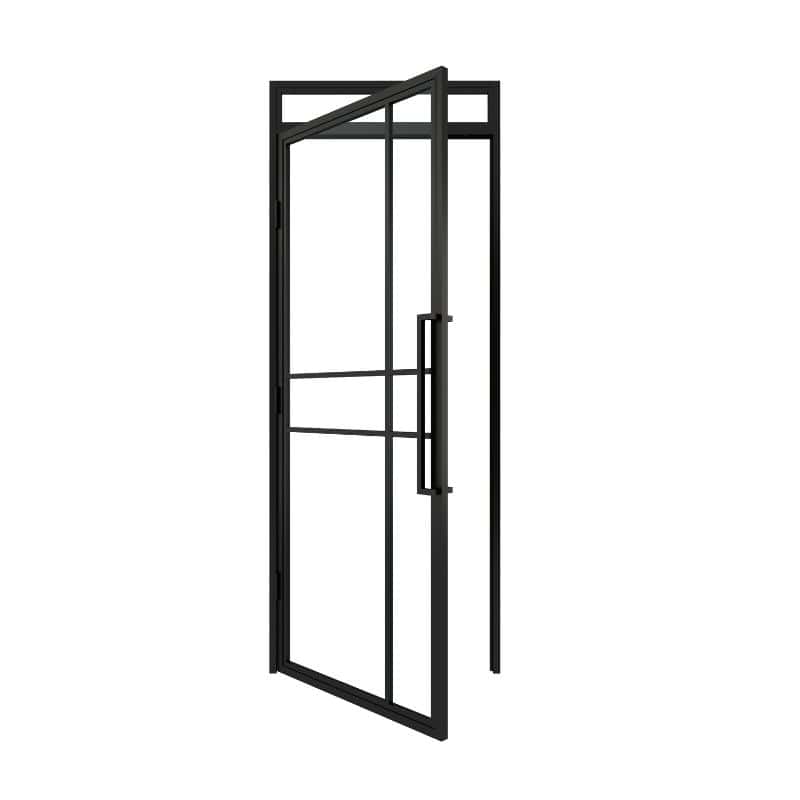

Black steel & glass single-leaf door with fanlight, partially open in matching frame. Bulk orders available.

Steel & glass door with fanlight open to a modern living room with a rug, coffee table, and green potted plant nearby.

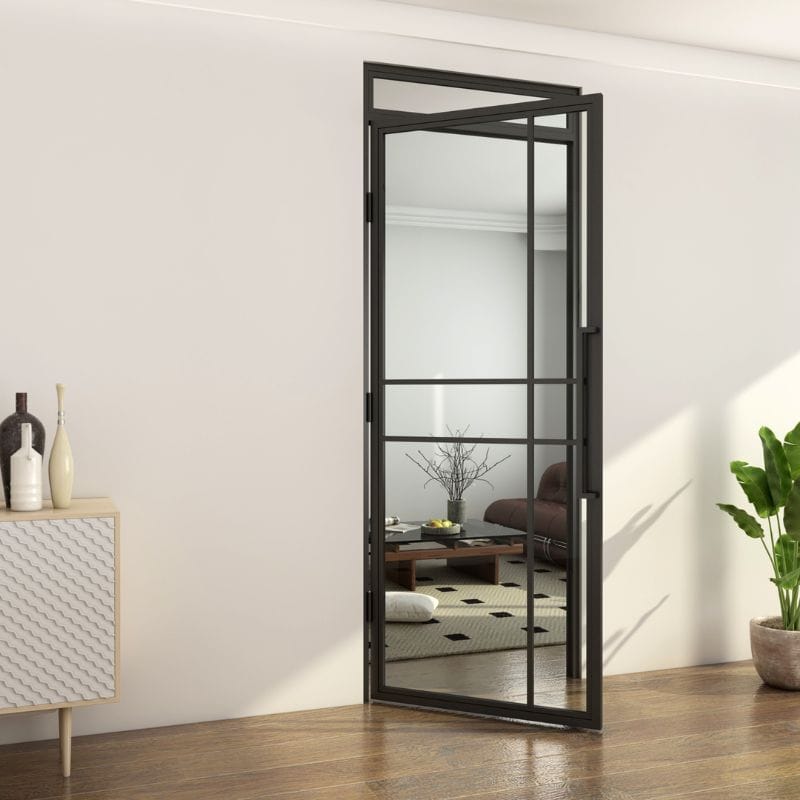

Black steel & glass door with fanlight stands open to a minimalist room with sideboard, decor, plant, and light wall.

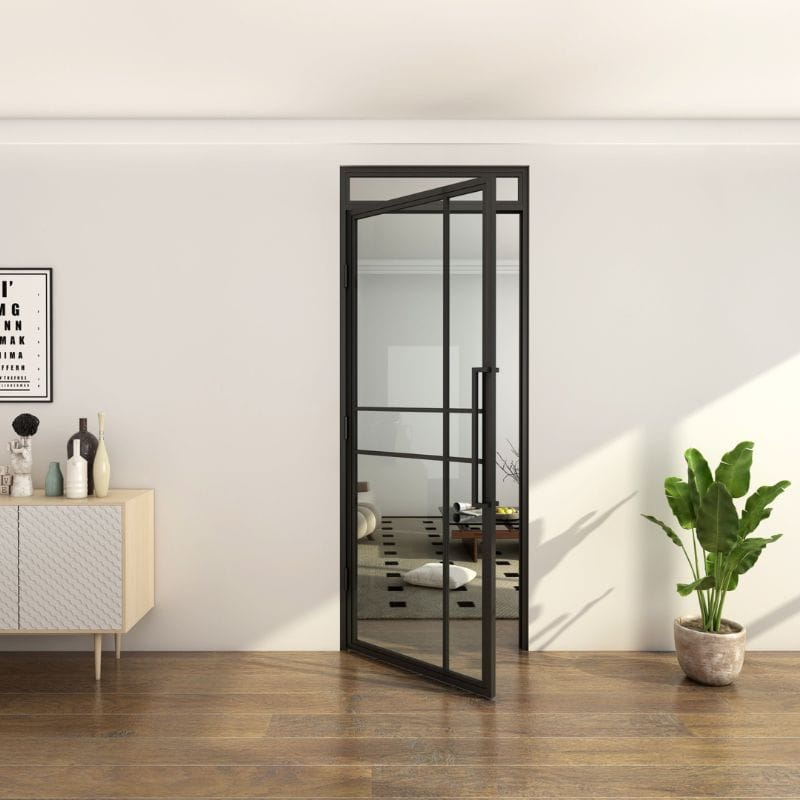

Open steel and glass door with fanlight links hallway with cabinet and plant to a living room with sofa, table, and rug.

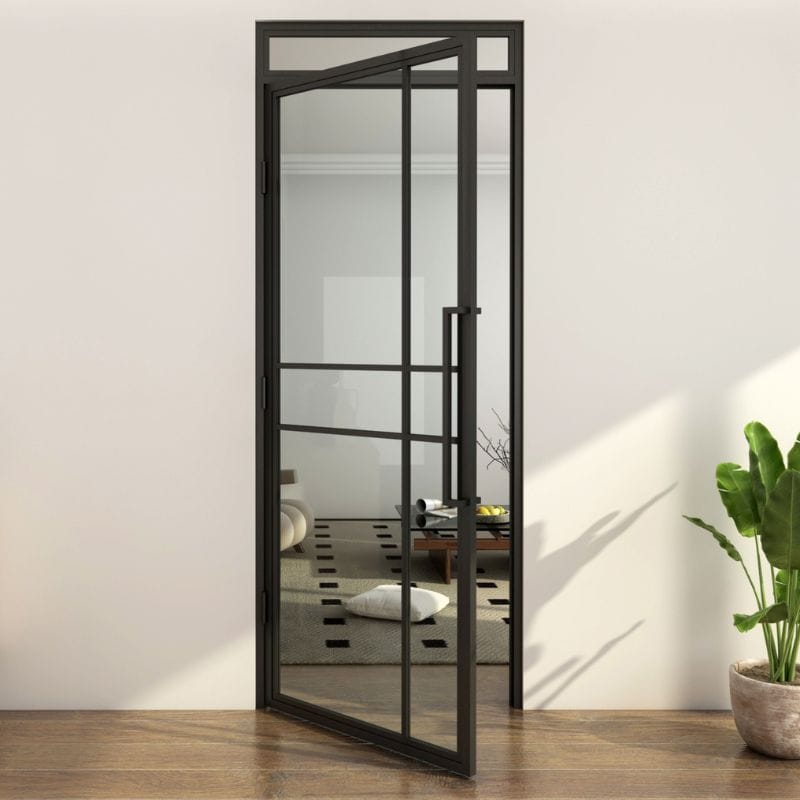

Black-framed steel & glass door with fanlight, open in modern room with wood floors, art, white sideboard, potted plant.

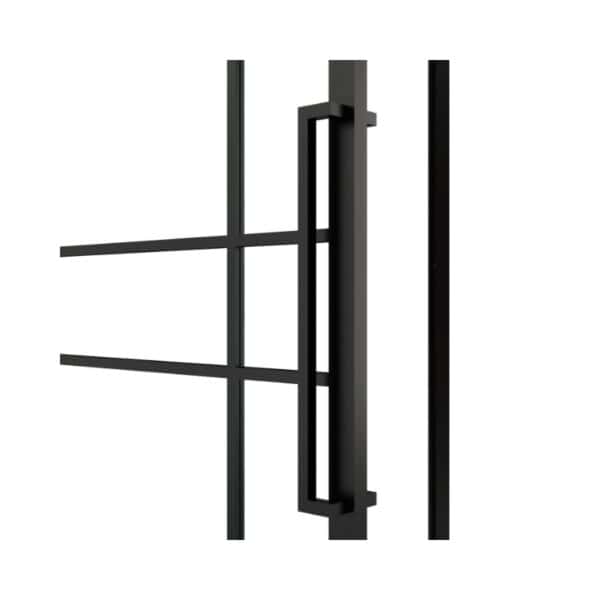

Single-leaf steel & glass door with fanlight, black metal handle, geometric bars; modern style on white background.

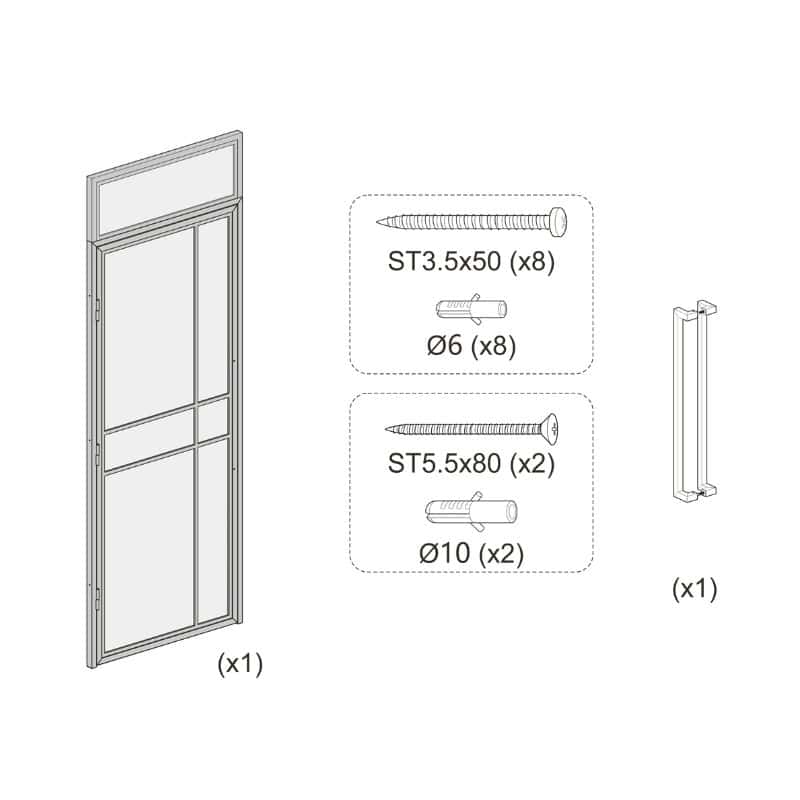

Line drawing of single-leaf steel & glass door with fanlight, frame, handle, screws, and quantity markers. Customizable & bulk.

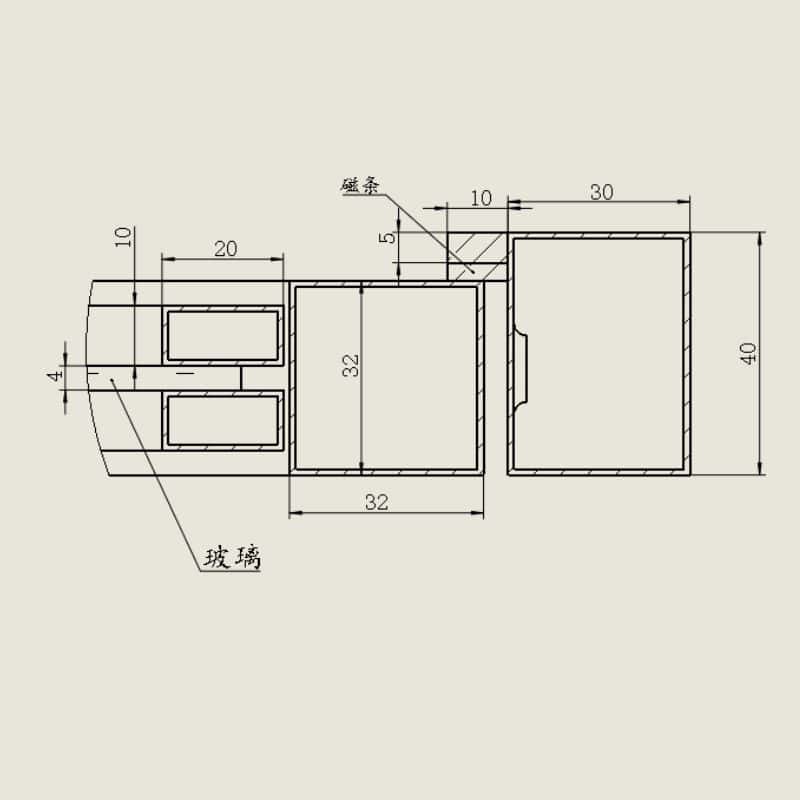

Technical drawing of single-leaf steel & glass door with fanlight, mm measurements, labeled glass (玻璃), customizable options.

Single-Leaf Steel & Glass Door with Integrated Fanlight – Customizable & Bulk Available

Model NO.:	TMK-YY16-SY
Ref.No.:	159806-8021
Brief Descritpion:	Steel framed glass swing door with fanlight
Position:	For interior door use
Application:	For bathroom or kitchen,residential or commercial
Opening style:	Swing opening
Main Material:	Carbon steel,Tempered glass
Surface Finish:	Black powder coating
Door size	265899640mm
Door Thickness	40mm
Glass thickness	4mm
Glass Pattern:	clear glass
Durablity:	100000 working cycles

Details

Bold, modern and customizable — the TMK-YY16-SY steel-framed glass swing door with integrated fanlight is engineered for interior spaces that need light, durability, and a clean architectural look. Ideal for residential or commercial bathrooms and kitchens, this single-leaf swing door brings daylight deeper into rooms while maintaining privacy options through customizable glazing.

Why customers choose TMK-YY16-SY

Integrated fanlight design: The fixed fanlight is welded to the door frame to distribute load and create a continuous vertical glazing line that increases natural light.
Solid construction: Carbon steel frames with high-quality black powder coating for a premium, low‑maintenance finish.
Safety glass: Tempered glass (standard clear; frosted or other options available on request) for strength and safety.
High durability: Rated to 100,000 working cycles — built for long-term interior use.
Customizable: Glass thickness, pattern (clear/frosted/custom), and glazing options available to suit privacy and aesthetic needs.
Bulk-friendly: Packing and palletization optimized for large-volume shipping and easy handling.

Applications

Interior doors for bathrooms, kitchens
Residential projects (apartments, houses)
Commercial interiors (offices, hospitality, retail backrooms)
Any interior partition where light transfer and a slim industrial frame are desired

The TMK-YY16-SY steel-framed tempered glass swing door with integrated fanlight delivers a sleek, industrial look with maximum vertical daylighting. Built from carbon steel with a durable black powder coat and fitted with tempered glazing, this interior door is ideal for bathrooms and kitchens in residential or commercial projects. Custom glazing and bulk-order packaging available.

Contact us for pricing, customization options, and delivery lead times. Bulk order discounts and custom packaging available — provide your quantity and destination for an immediate quote.

Product Package

Packing Method	A piece of full door into a carton,with EPE or equivalent filling material inside the carton,then 13 cartons onto a pallet.The outer carton can be painted company logo or paste the color paper of product info.
Sales Unit Packing Type	Carton
Sales Unit Packing Size	2755101085mm
QTY/Pallet	13 PCS/PLT
Pallet size	277511001300mm
Laoding QTY	88 PCS for 1x20GP and 208 PCS for 1x40HQ
