Sleek Black Finish Stainless Steel Pull Handle for Interior Glass Doors

Model NO.: FS-HX05
Ref. NO.: 159900-2705
Brief Descritpion: Steel glass door handle
Position: For interior door use
Application: Both Residential and commercial use
Opening style: Pull opening
Main Material: Stainless steel
Surface Finish: Black powder coating
For Door Type: Steel glass doors
Length: 620mm (24.4inch)
Hole Center Distance: 600mm (23.6inch)
Pipe Profile Dimension: Diameter 20mm (0.8inch)
For Door thickness: 25mm(1inch) to 35mm(1.38inch)
Request a Quote

Details

Key Features:

  • Model & Reference: FS-HX05 / Ref. NO.: 159900-2705
  • Type: Steel glass door handle designed for interior use.
  • Applications: Suitable for both residential and commercial environments.
  • Opening Style: Pull opening mechanism for easy access.
  • Material: Constructed from durable stainless steel for longevity.
  • Surface Finish: Elegant black powder coating enhances aesthetics and durability.
  • Compatibility: Specifically designed for steel glass doors.
  • Dimensions:
    • Length: 620mm (24.4 inches)
    • Hole Center Distance: 600mm (23.6 inches)
    • Pipe Profile Dimension: Diameter of 20mm (0.8 inches)
    • Door Thickness Compatibility: 25mm (1 inch) to 35mm (1.38 inches)

Packaging Information:

  • Packing Method: Each set is wrapped in an EPE bag and placed in a box; 20 sets per carton.
  • Sales Unit Packing Type: Carton
  • Carton Dimensions: 645mm x 515mm x 375mm
  • Loading Capacity: 7920 pieces per 1x20GP container.

Additional Notes: The FS-HX05 handle features a long square tube design for a modern aesthetic, making it an ideal choice for enhancing the look of any space while providing functional ease.

This product is an excellent addition to your inventory, appealing to a wide range of customers seeking stylish and practical door hardware solutions.

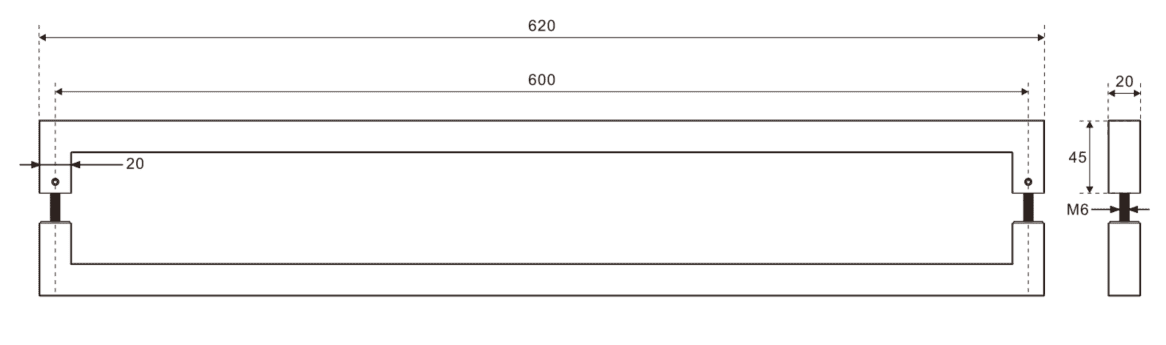

Technical drawing of a sleek 620mm stainless steel pull handle for glass doors, M6 bolt, 20mm edge width, 45mm height.

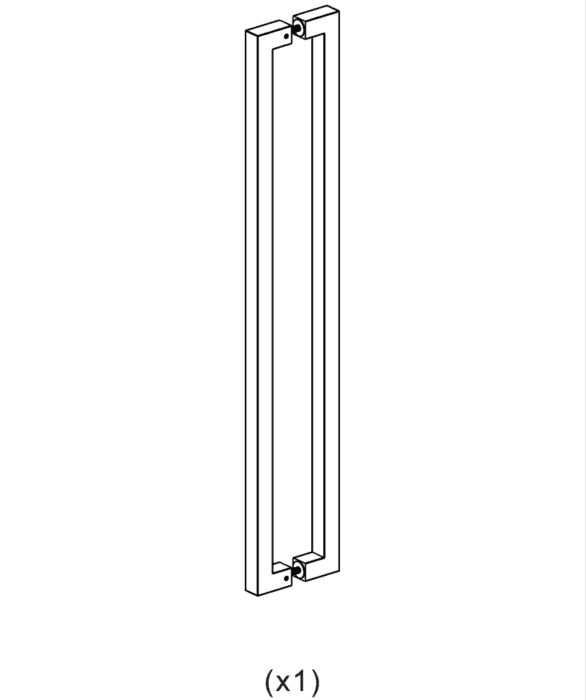

Sleek black stainless steel rectangular pull handle with two brackets (x1) for interior glass doors.
