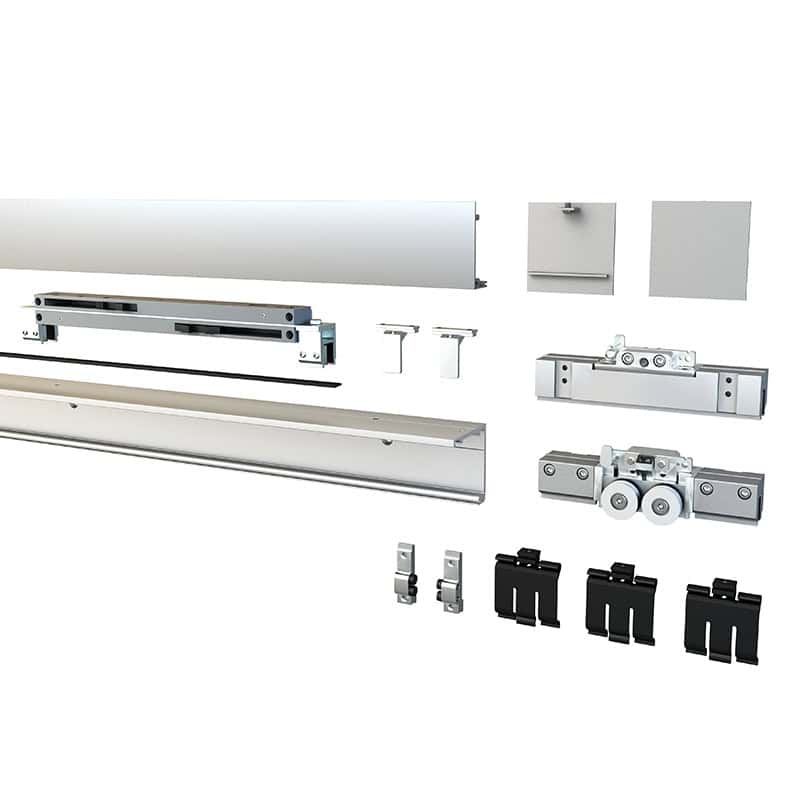

Sliding Glass Door Track System
| Model NO.: | YMXT-XC14 |
| Ref. NO.: | 150305-0121 |
| Brief Descritpion: | Alu track sliding glass door system |
| Position: | For interior door use |
| Application: | Residential |
| Main Material: | Aluminum |
| Surface Finish: | Silver anodization |
| Cover profile size: | 75mm |
| Rail Length: | 2000mm(78-3/4inch), or to be customized |
| Max Loading: | 80kg (176LBS) with Soft closing & 120kg W/O soft closing |
| Working Cycles: | 100000cycles |
| For Door Type: | Glass door |
| For Door thickness: | 10mm to 12mm |
| Soft Closing: | Optional |
| Features: | 1. It has a simple appearance, 2. Height can be adjusted ± 4mm, and it is more convenient to adjust from the front; 3. Glass door and wooden door pulleys and rails are universal, only need to increase the wooden door connectors and replace the swing stop instantly; 4. With soft close glass does not need to open the hole; 5. Door width(with soft close ) ≥ 700mm 6.Door width(without soft close ) ≥ 400mm |
| Other | Suitable for external mounting |
Details
The Tengyu YMXT-XC14 is a high-quality aluminum sliding glass door track system designed for residential interior doors. This system features a sleek silver anodized finish and a 75mm cover profile size for a modern, minimalist look. The track is available in a standard 2000mm (78-3/4 inch) length, but can also be customized to fit your specific needs. It can support door weights up to 80kg (176 lbs) with the optional soft closing feature, or up to 120kg without soft closing. This durable system is built to last, with a rated 100,000-cycle lifespan. It accommodates glass door thicknesses from 10-12mm and can be adjusted +/- 4mm in height for easy installation and a precise fit. Key features include:
- Simple, elegant design
- Front height adjustment for convenience
- Universal track for glass or wooden doors (wooden door connectors sold separately)
- Soft closing option for gentle door operation (no glass hole required)
- Supports door widths from 700mm with soft close, or 400mm without
- Suitable for external mounting
With its versatility, durability, and smooth operation, the Tengyu YMXT-XC14 sliding glass door track system is an excellent choice for upgrading the functionality and style of your interior spaces.

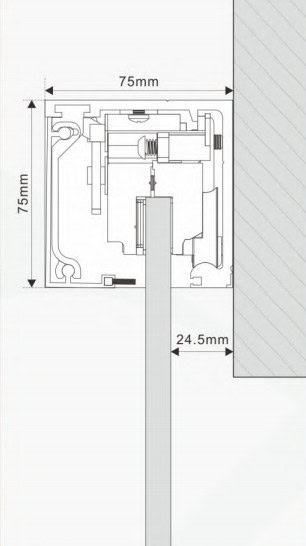

Dimension

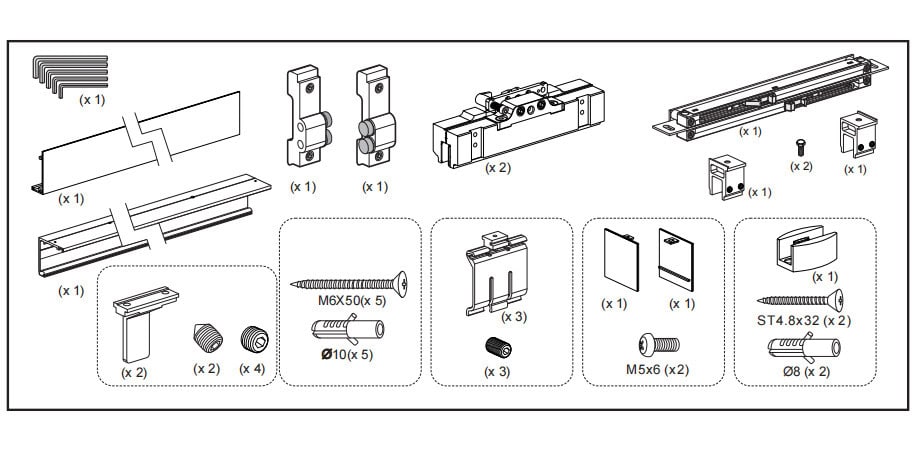

Part assembly
Product Package
| Packing Method | Components into boxes and a complete set into a carton,then into wooden crate. |
| Sales Unit Packing Type | Carton |
| Sales Unit Packing Size(hardware) | 2030*130*80 mm |
| QTY/Pallet | 84/PLT |
| Pallet Size | 2110*1020*1125mm |
| Loading QTY | 840sets/20GP |
