Stainless Steel Brushed Finish Barn Door Handle for Residential and Commercial Sliding Doors

Model NO.:	FS-HX03
Ref. NO.:	159900-2513
Brief Descritpion:	Barn door handle
Position:	For interior door use
Application:	Both Residential and commercial use
Door Opening Type：	Sliding opening
Main Material:	SS304
Surface Finish:	brushed
For Door Type:	Wooden doors
Length：	305mm(12inch)
Hole Center Distance:	203mm (8inch)
Pipe Profile Dimension:	Diameter 25mm (1inch)
For Door thickness:	35mm(1-3/8inch) to 45mm(1-3/4inch)
Features:	double side with H handle

Details

Key Features:

Model Number: FS-HX03
Reference Number: 159900-2513
Type: Barn Door Handle
Usage: Designed for interior doors, suitable for both residential and commercial applications.
Door Opening Mechanism: Sliding opening.
Material: Constructed from durable SS304 stainless steel with a brushed surface finish.
Compatibility: Specifically designed for wooden doors.
Dimensions:
- Length: 305mm (12 inches)
- Hole Center Distance: 203mm (8 inches)
- Pipe Profile Diameter: 25mm (1 inch)
- Door Thickness: Compatible with doors ranging from 35mm (1-3/8 inches) to 45mm (1-3/4 inches).
Design: Features a double-sided H handle for easy access from both sides.

Packaging Details:

Packing Method: Each set is packed in a box, with 10 boxes per carton.
Sales Unit Packing Type: Box
Sales Unit Packing Size: 160mm x 35mm x 315mm
Quantity per Carton: 10 sets
Carton Size: 335mm x 325mm x 190mm
Loading Capacity: 13,090 sets for a 20-foot container.

Versatile Applications: Ideal for use in various settings including barns, warehouses, storefronts, and entry doors in restaurants and libraries. Suitable for both swinging and sliding barn doors, making it a versatile choice for any interior door installation.

This barn door handle combines functionality and durability, making it an excellent addition to your product offerings.

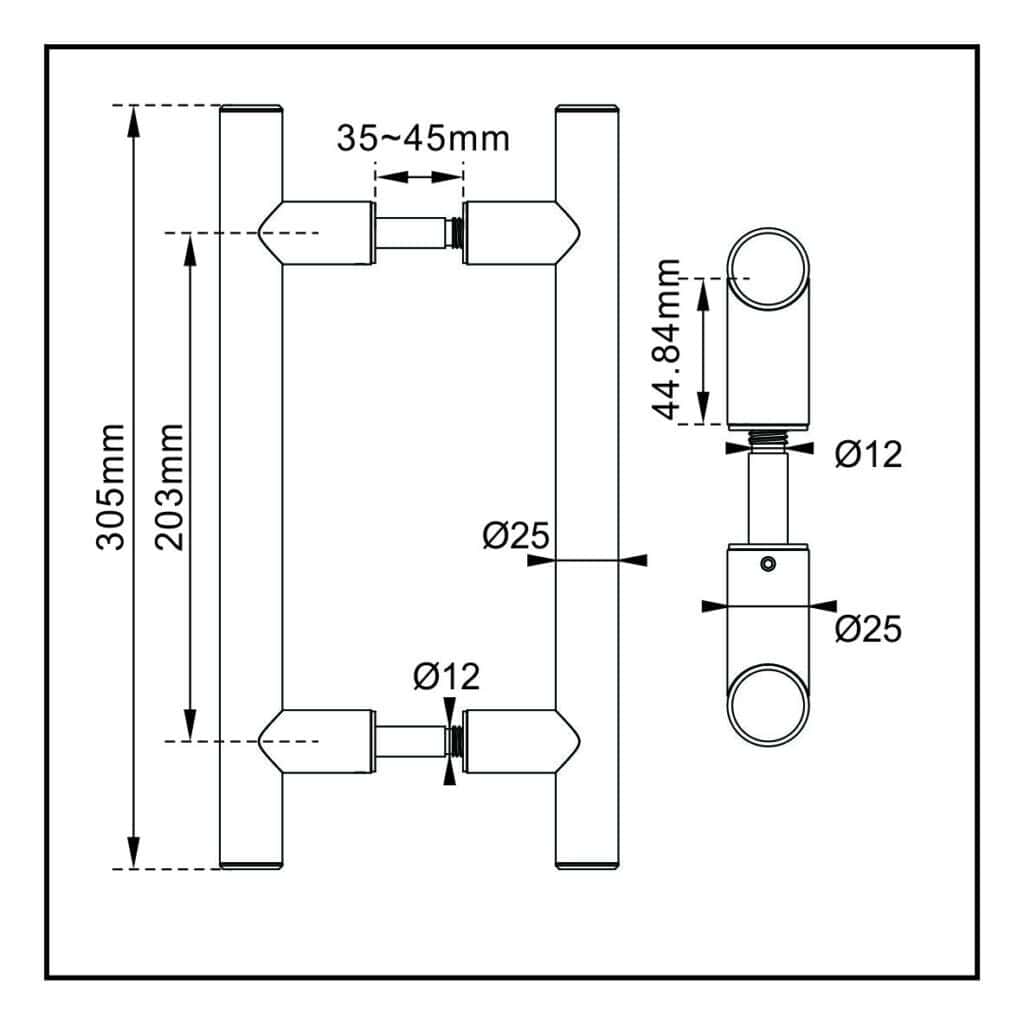

Technical illustration of 305mm Brushed Stainless Steel Barn Door Handle for residential/commercial doors, featuring a sleek design.
