Stainless Steel Glass Outdoor Door Window Awning Canopy

Model NO.: YP-A03 (RC008)
Ref. NO.: 150501-0031
Brief Description: Rod style Glass door canopy
Position: For outdoor use
Application: Both Residential and commercial use
Main Material: Stainless steel SS304, Laminated tempered glass
Surface Finish: Brushed stainless steel, clear glass
Glass Size: 150x90cm
For Glass Thickness: 5mm+0.76mm+5mm

Details

More Introduction

The door canopy brings a modern-tech look to the exterior of your home or business. The laminated tempered glass and stainless steel brackets enhance the exterior aesthetics. What’s more, it offers protection from the elements for yourself and will keep your door entrance area sheltered too.

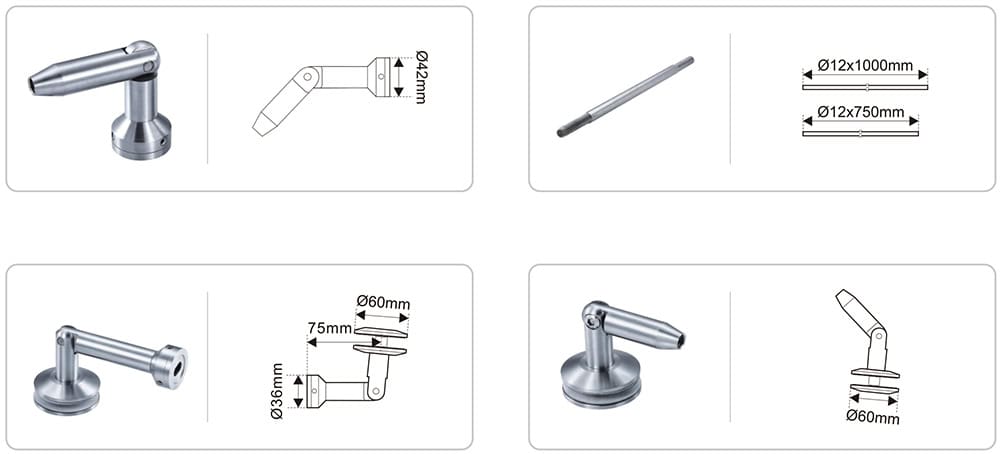

Dimension

Dimension

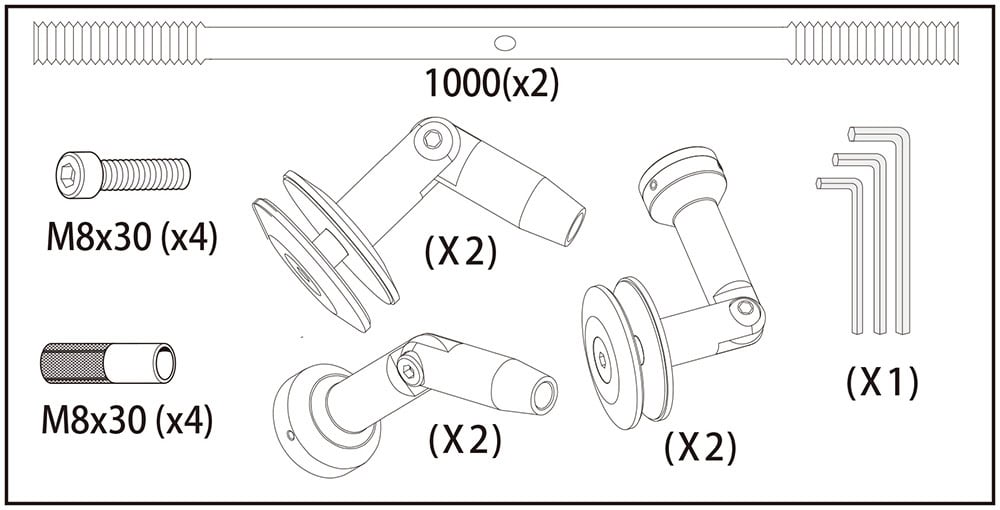

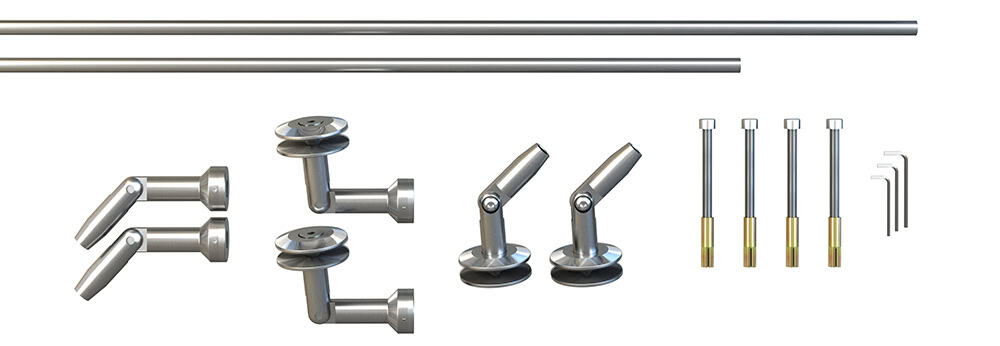

Part assembly

Part assembly

Part assembly


Product Package

Packing Method A full set (incl.Glass and the hardware) into a carton, with EPE or equivalent filling material inside the carton. 13cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1600*980*69mm
QTY/Pallet 13sets/CTN
Pallet Size 1655*1035*1100mm
Loading QTY 182sets for 1x20GP and 364sets for 1x40GP
