Glass Swing Door, Steel Framed, New Style

Experience modern elegance and enhanced security with our steel framed glass swing door. Maximize space and natural light while adding a touch of contemporary sophistication to your space.

Model NO.: TKM-YY16(TY2.112.310.44)
Ref.No.: 151000-0423
Brief Descritpion: New style steel framed glass swing door
Position: For interior door use
Application: Both Residential and commercial use
Opening Style: Swing opening
Main Material: Carbon steel, Tempered glass
Surface Finish: Black powder coating
Door Size 2358*996x40mmmm
Door Thickness 40mm
Glass thickness 4mm
Glass Pattern: clear glass
Durability: 100000 working cycles

Details

This steel-framed glass swing door is a modern and stylish entrance solution for both residential and commercial spaces. The sturdy steel frame provides superior strength and durability, while the large glass panels allow natural light to flow through, creating an open and airy atmosphere.
The door features a sleek and minimalist design with clean lines that complement contemporary architectural styles. The steel frame is available in various finishes like brushed stainless steel or powder-coated colors to match your desired aesthetic.
The tempered glass panels ensure safety and can be customized with different opacities, tints, or patterns to achieve your desired level of privacy. The door can be configured as a single swing door or double swing door for a French door look.
This swing door system is highly versatile, offering the option for inswing or outswing opening, as well as different hinge styles like standard butt hinges or concealed pivot hinges for a seamless appearance. High-quality hardware like handles, locks, and closers can be selected to further enhance functionality and security.
With its combination of modern design, durable materials, and customizable options, this steel-framed glass swing door is an excellent choice for entryways, patios, offices, retail spaces, and more. It provides an elegant transition between indoor and outdoor spaces while maximizing natural light.

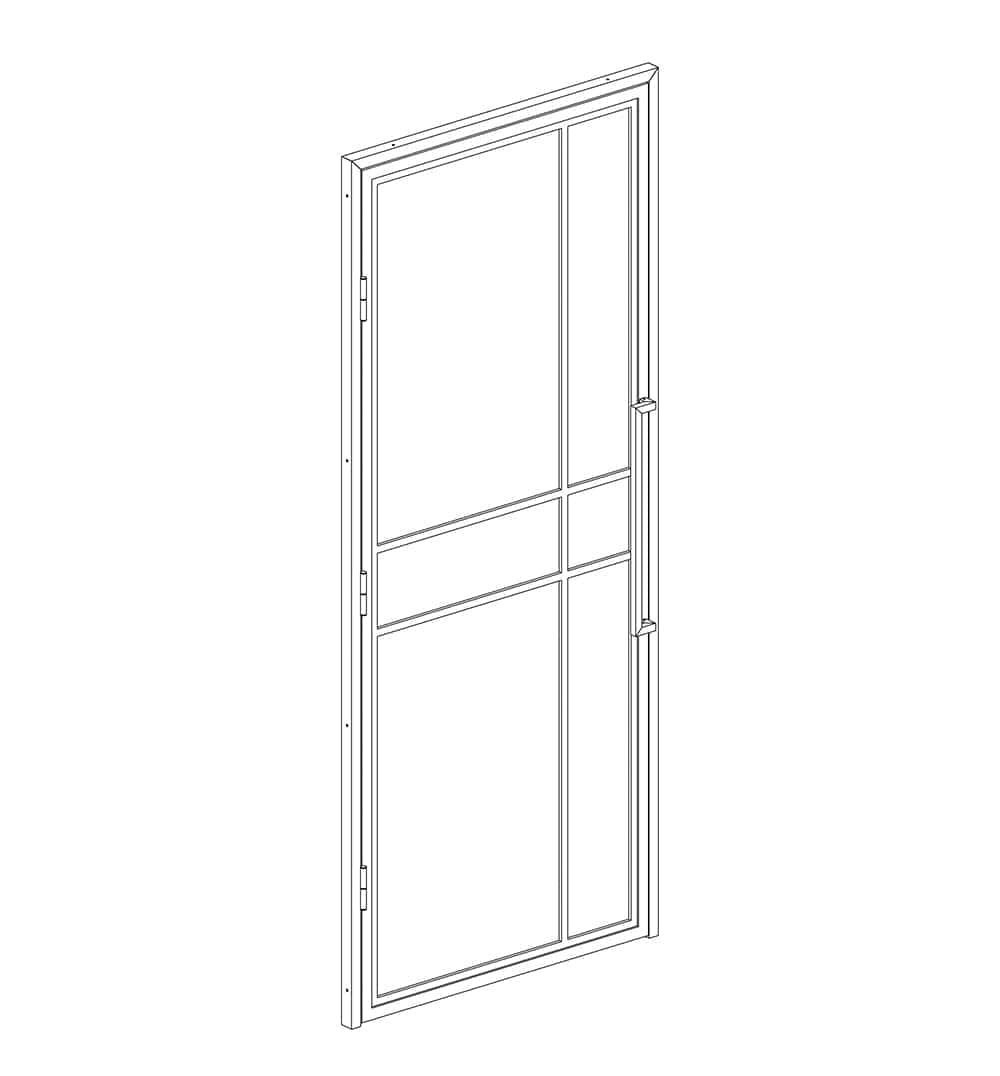

Line drawings

Line drawings

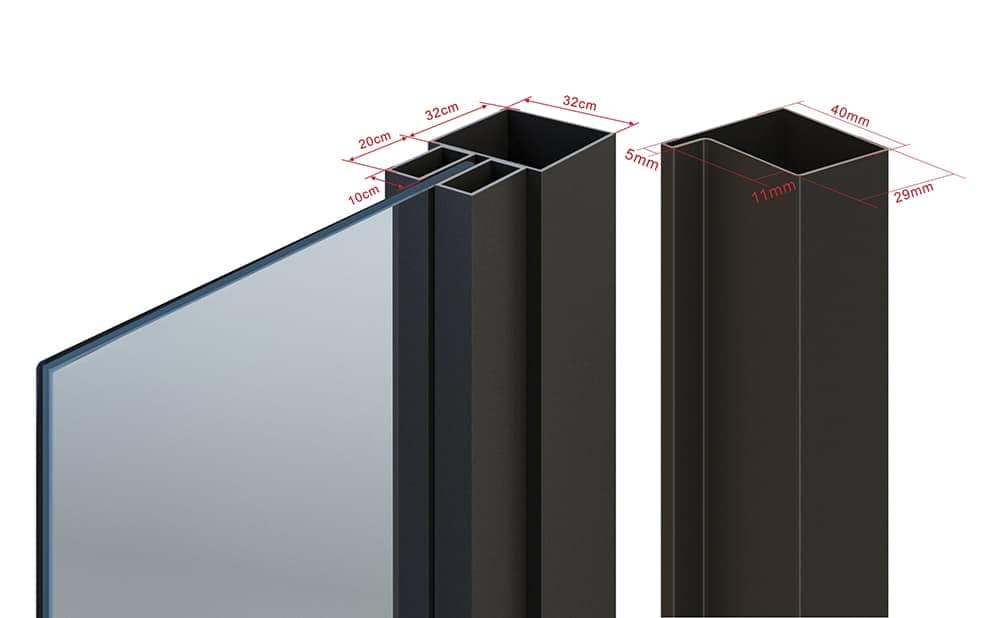

Size

Size


Product Package

Packing Method A piece of full door into a carton, with EPE or equivalent filling material inside the carton, then 13 cartons onto a pallet. The outer carton can be painted company logo or pasted the color paper product info.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2450*1085*90mm
QTY/Pallet 13 PCS/PLT
Pallet Size 2470*1105*1300mm
Loading QTY 90PCS for 1x20GP and 242PCS for 1x40HQ
