Sturdy Aluminum Floor Guide for Sealed Glass Doors with 8-10mm Thickness

Model NO.:	QT-ZBQ13
Ref. NO.:	159900-4188
Brief Descritpion:	Aluminum floor guide for glass doors
Position:	For interior door use
Application:	Both Residential and commercial use
Opening style:	Sliding opening
Main Material:	Aluminum
Surface Finish:	Silver painting
For Door Type:	Glass doors
Length：	45mm (1.77inch)
Hole diameter on floor:	8mm (0.3inch)
Hole Center Distance:	34mm (1.34inch)
For Door thickness:	8mm(0.31inch) to 10mm(0.39inch)

Details

Key Features:

Model Number: QT-ZBQ13
Ref. Number: 159900-4188
Material: Durable aluminum with a sleek silver painted finish.
Design: Specifically designed for sliding glass doors used in both residential and commercial settings.
Dimensions:
- Length: 45mm (1.77 inches)
- Hole Diameter: 8mm (0.3 inches)
- Hole Center Distance: 34mm (1.34 inches)
- Suitable for Door Thickness: 8mm (0.31 inches) to 10mm (0.39 inches)
Packaging: Each set is wrapped in EPE and packed into a box; 100 sets per carton.
Carton Size: 270mm x 200mm x 250mm
Loading Capacity: 60,000 pieces per 1x20GP container.

This aluminum floor guide offers a modern and clean aesthetic, making it an ideal accessory for glass doors. Its robust construction and compatibility with varying door thicknesses ensure reliability and ease of installation for a range of applications.

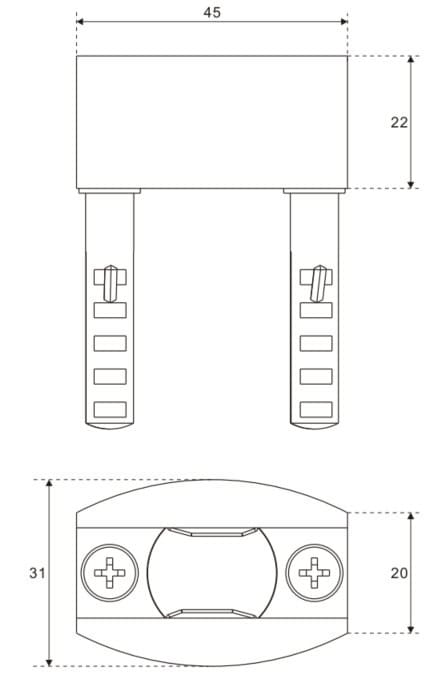

The diagram shows a mechanical part (45mm x 22mm) with adjustable legs. The bottom view is a 31mm diameter, 20mm high aluminum guide for 8-10mm glass doors.

Illustration of assembly components for 8-10mm thick sealed glass doors: mounting bracket, two ST4.8x32 screws, and Ø8 wall anchors.
