Black Barn Door Handle

Model NO.: FS(TY2.137.001.44)
Ref. NO.: 150204-1690
Brief Description: Barn door handle
Position: For interior door use
Application: Both Residential and commercial use
Door Opening Type: Sliding opening
Main Material: Carbon steel
Surface Finish: Black powder coating
For Door Type: Wooden doors
Length: 300mm(11.8inch)
Hole Center Distance: 180mm (7inch)
Pipe Profile Dimension: Diameter 25mm (1inch)
For Door thickness: 35mm(1-3/8inch) to 45mm(1-3/4inch)
Features: One side is with finger pull and the other side with H handle

Details

More Introduction

As for sliding barn door, since the space between the door and the wall is narrow, it becomes a problem bothering our customers how to select the door handle. This handle is one side with a flat finger pull-back plate and the other side with a pipe handle. The finger pull-back plate thickness is 6mm, it’s the perfect design for the sliding door handle.

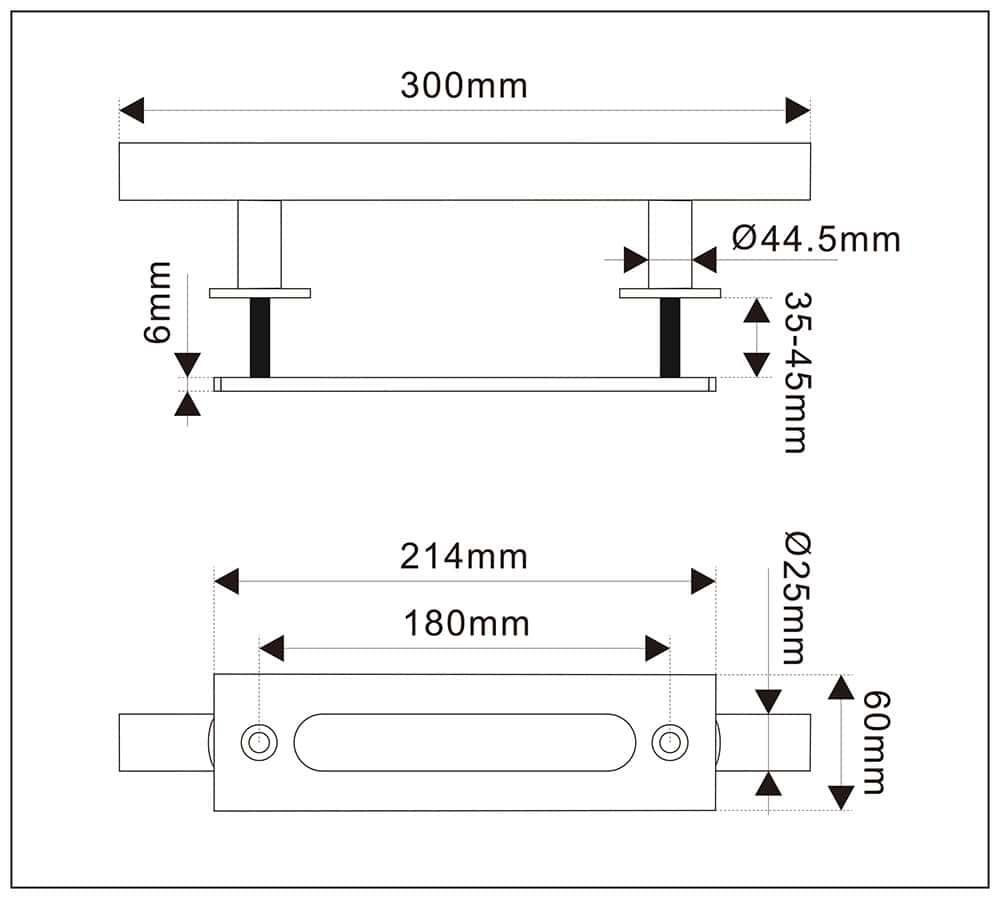

Dimension

Dimension


Product Package

Packing Method A full set into boxes and 10 boxes into a carton
Sales Unit Packing Type Box
Sales Unit Packing Size 85*40*360mm
QTY/Pallet 10sets/CTN
Pallet size N/A
Loading QTY 18000sets for 1x20GP
