150101-0017 Stainless Steel Sliding Glass Door Track Kit

Model NO.: YMXT-YG63
Ref.NO.: 150101-0017
Brief Descritpion: Stainless steel glass sliding door hardware track kit
Position: For interior door use
Application: For both residential&commercial
Main Material: Stainless steel
Surface Finish: Brushed stainless steel
Rail Length: 2000mm(78-3/4inch), or to be customized
Max Loading: 120kg
Working Cycles: 100000cycles
For Door Type: Glass doors
For Door Thickness: 8-12mm
Features: For both residential&commercial

Details

More Introduction

This sliding system is quite suitable both for commercial and residential use. Firstly it’s durable as it’s sustainable for up to 100000working cycles with softing closing max loading of 120kg. The stainless steel sliding track hardware system is perfect with different thicknesses of glass. It is an ideal solution for where space is at a premium and aesthetics are important such as offices, hotel rooms, laundry rooms, closets, bathrooms, and multifamily units. The stainless steel hanges glide along on nylon wheels, and smooth and quiet operation makes it appropriate for shared spaces. Each hanger is equipped with an anti-rise pin to ensure the door can not be lifted off the track. It meets the performance requirement of ANSI/BHMA 156.14.

Dimension

Dimension

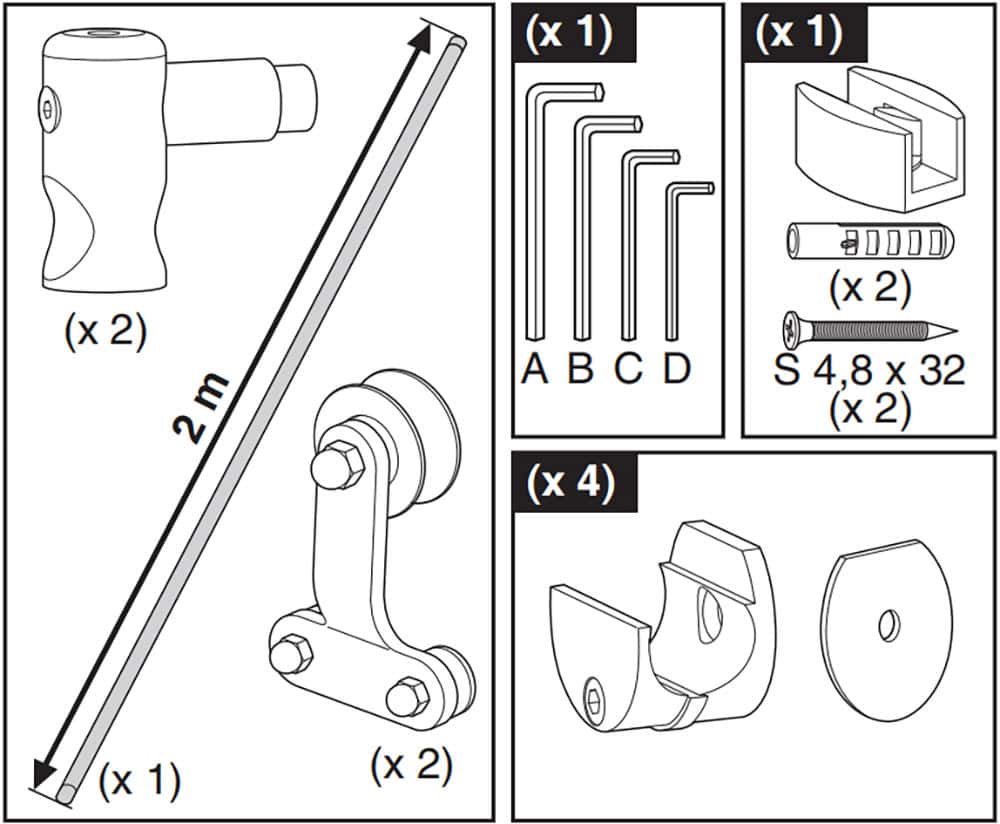

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 66 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040*140*70 MM
QTY/Pallet 66/PLT
Pallet Size 2090*910*970MM
Loading QTY 1040sets/20GP, 2080sets/40GP,2400set/40HQ
