159900-0237 Flat Track Connector As for Sliding Barn Door

Model NO.: YMXT-BG01-S
Ref.NO.: 159900-0237
Brief Descritpion: Flat track connector as for sliding barn door
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Product Size 80×28.5x4mm (3-1/8 x 1-1/8 x 7/16inch)
For Rail Profile Size: 40*6mm
Connection Type: Countersunk screws
Caution: Holes need to be pre-drilled on the end of the flat track

Details

More Introduction

With this track connector, every two sliding barn door kits (with track profile size 40x6mm) could be connected to one piece to be double doors. In the same way, one sliding track could be divided into two pieces to save the packing size and to be connected by this item in installation and in use. There is the disadvantage that holes need be pre-drilled on the end of the flat track in order to make this connection.

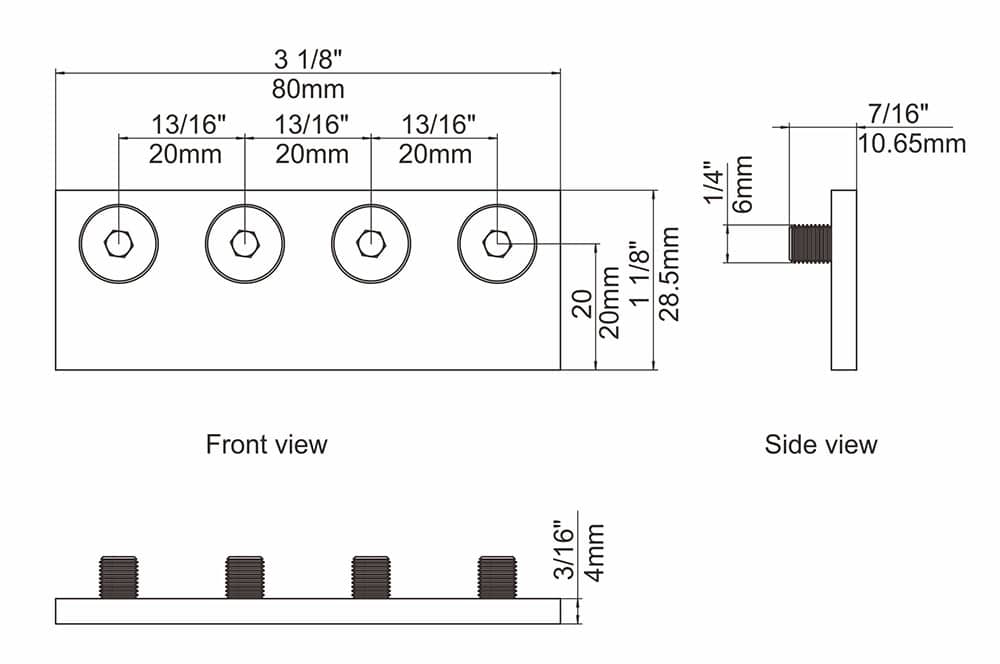

Dimension

Dimension


Product Package

Packing Method One connector into boxes and 10 boxes into a carton, two actuators into boxes and 40 boxes into a carton
Sales Unit Packing Type Carton
Sales Unit Packing Size 80*54*54mm
