159900-2624 Flat Track Connector As for Sliding Barn Door

Model NO.: YMXT-BG01-S
Ref.NO.: 159900-2624
Brief Descritpion: Flat track connector as for sliding barn door
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Product Size: 80*51*17mm
Rail Profile Size: 40*6mm
Connection Type: Sleeve with tightened screws
Feature: Holes need to be pre-drilled on the end of the flat track

Details

More Introduction

With this track connector, every two sliding barn door kits (with track profile size 40x6mm) could be connected to one piece to be double doors. Thanks to the connection style of the sleeve with tightened screws, There is no need to be pre-drilled on the end. However, Since the sliding roller can not slide through this connector, it can not be used for the single-door kit.

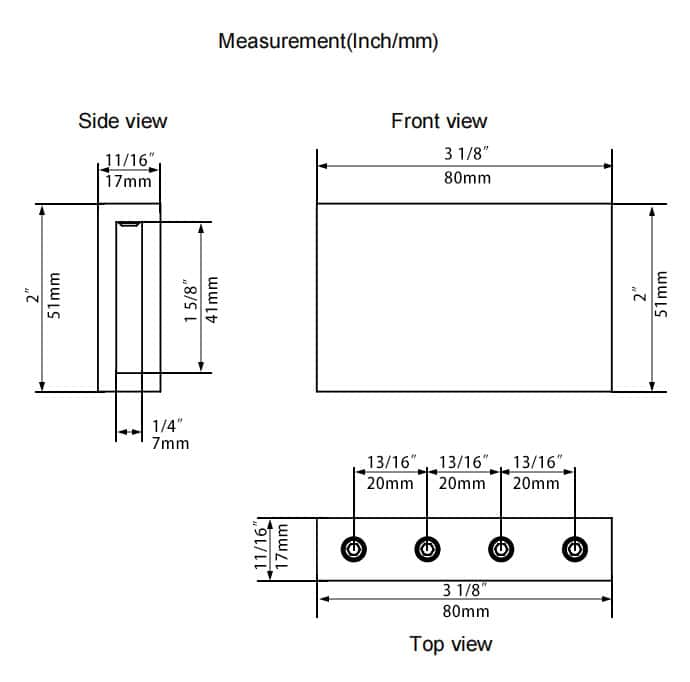

Dimension

Dimension

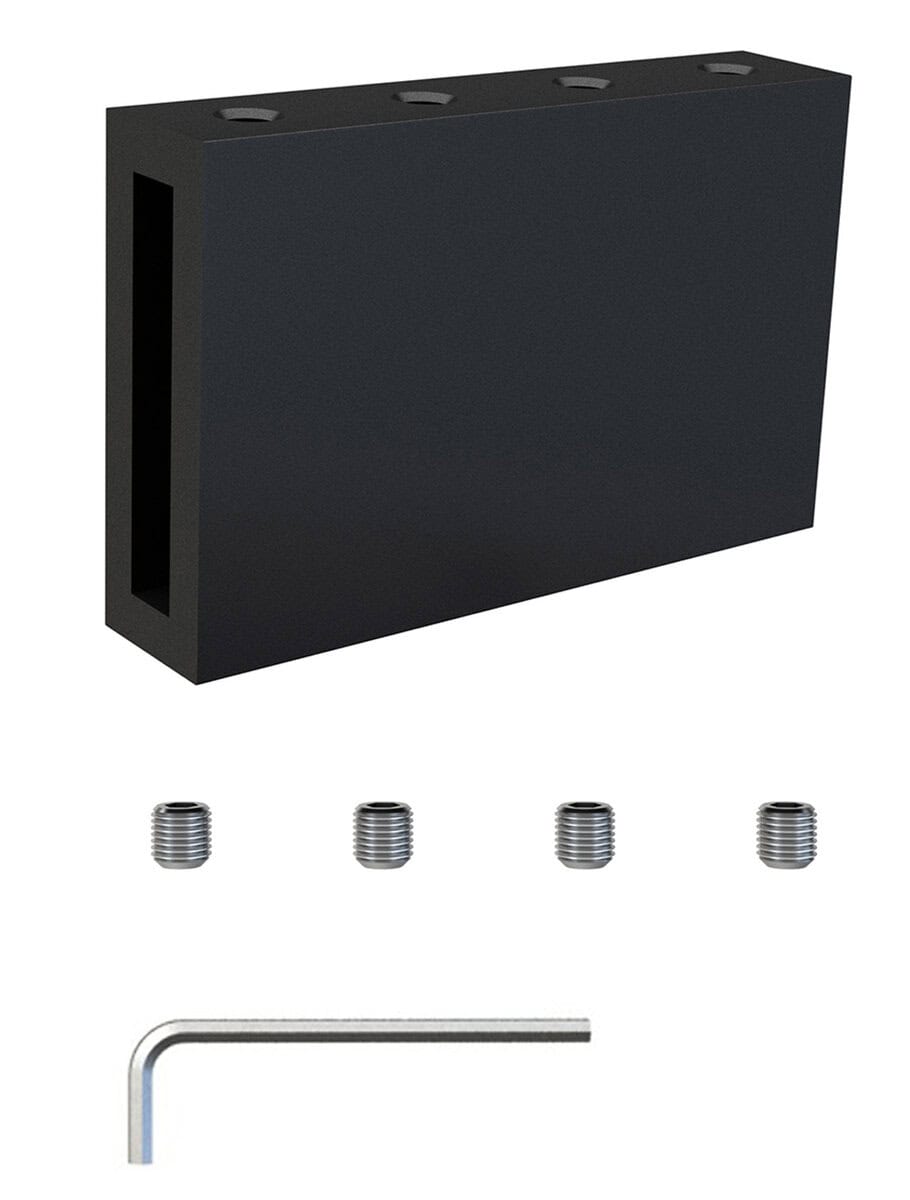

Part assembly

Part assembly


Product Package

Packing Method One connector into boxes and 10 boxes into a carton, two actuators into boxes and 40 boxes into a carton
Sales Unit Packing Type Carton
Sales Unit Packing Size 100*60*30mm
