159900-4173 Soft Close Mechanism for Flat Tracks

Model NO.: TY2.133.052&TY2.133.041
Ref.NO.: 159900-4173
Brief Descritpion: Soft-close mechanism for flat tracks
Position: For interior door use
Application: Residential
Main Material: Plastic
Surface Finish: Black
Product Size: Refer to the diagram
For Rail Thickness: 6mm
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For track Type: Flat tracks
Features: 1. There is no need to drill holes on the track;

2. The barn door hardware (without the soft closing) with 6mm flat track thickness could be upgraded with this soft closing set.

Details

More Introduction

This soft-close function is installed behind the track to suit our flat barn door kit. It allows the barn door to close softly by bringing it to a smooth stop in its final position. This exceptional feature creates less force to close the doors and allows the door to automatically glide gently into position. With the latest design of the soft-close, there is no need to drill holes on the track.If your current sliding barn door (without the soft closing) is with 6mm flat track thickness, could be upgraded with this soft closing set.

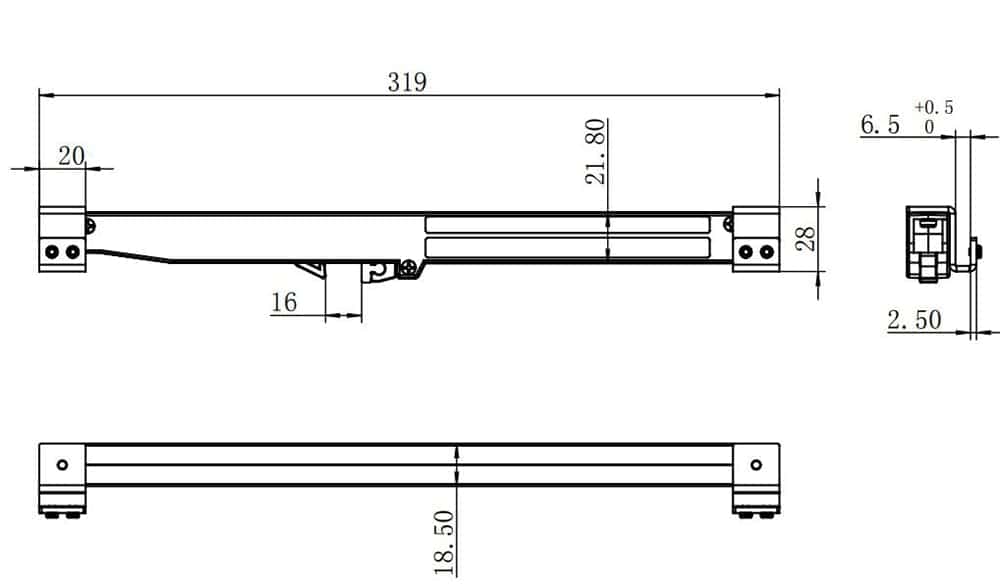

Dimension

Dimension

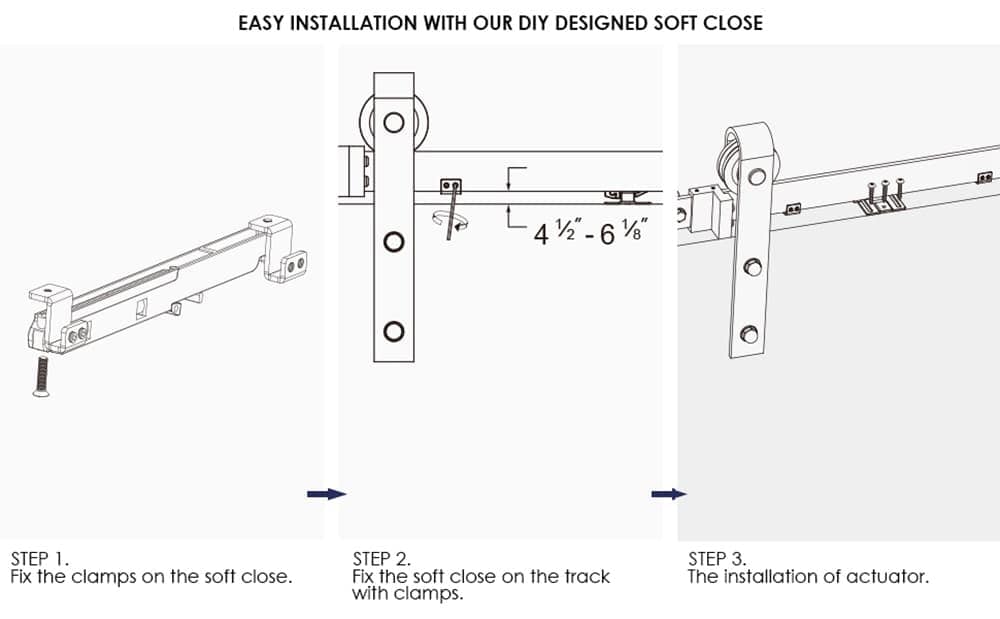

Installation Steps

Installation Steps


Product Package

Packing Method Components into boxes and a complete set into a carton
Sales Unit Packing Type Carton
Sales Unit Packing Size 270*200*250mm
QTY/Pallet 50pcs/carton
