2 Step Steel Stringer Outdoor Stair Riser, Screws included

Model NO.: QT-FT02
Ref.NO.: 151700-0009
Brief Description: 2 Step Steel Stringer Stair riser. (screws included)
Designed to build a sturdy and lasting staircase, it can be used in residential/commercial applications.
Position: For outdoor stairs use
Application: For residential/commercial
Main Material: Steel
Surface Finish: Matt Black Powder-coated Black
Size: Lengh*Height 530*504mm

Details

The TENGYU 2-Step Steel Stringer Outdoor Stair Riser is a durable and reliable solution for your exterior staircase needs. Crafted from high-quality steel, this stair riser is designed to withstand the elements and provide long-lasting performance in outdoor settings.

Featuring a sturdy 2-step design, this outdoor stair riser offers a convenient and safe way to navigate small height differences around your property. Whether you need to access a raised deck, patio, or garden area, these steps provide a stable and secure footing for you and your guests.

The steel stringers are expertly engineered to ensure maximum strength and stability. The robust construction can support heavy loads, making it suitable for high-traffic areas. The corrosion-resistant finish protects the steel from rust and weathering, ensuring that your outdoor stair riser maintains its structural integrity and attractive appearance for years to come.

Installation Manual

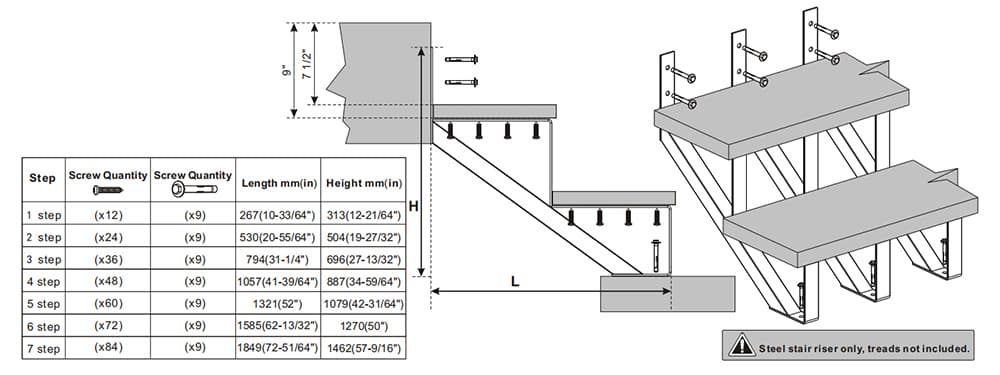

Technical drawing of a 2 Step Steel Stringer Outdoor Stair Riser with detailed measurements and screw assembly guide, indicating parts and dimensions.

STAIR RISER – INSTRUCTIONS

  1. Bolt stringers to deck (for concrete base) with provided Hex Sleeve Anchor Bolts, not more than 3′ apart (treads may extend over side of each riser by 6″). First tread should be 9″ down from deck surface (7-1/2″ once treads are installed).
  2. Bolt bottom of stringers to landing or concrete pad with provided Hex Sleeve Anchor Bolts – ensure stringers are parallel.
  3. Starting half way up, install treads using provided Self-Tapping Screws (ST6.3).
  4. Please remember not to over-tighten.

DO NOT OVER TIGHTEN




Product Package

Packing Method This product can be installed single, two, three, with a cable tie to fix the bracket; Wrap pearl cotton and put it in a carton. The screws are put into the box and then put into the carton. Both ends of the bracket are protected by paper corner guards.Finally, the carton outer blister packing
Sales Unit Packing Type Carton
Sales Unit Packing Size 790*470*55mm
QTY/Pallet 30 PCS/PLT
