Alu Track Sliding Glass Door System

Model NO.: YMXT-XC14
Ref.NO.: ref 150304-0082+159900-4378
Brief Descritpion: Alu track sliding glass door system
Position: For interior door use
Application: Residential
Main Material: Aluminum
Surface Finish: Black Powder Coating

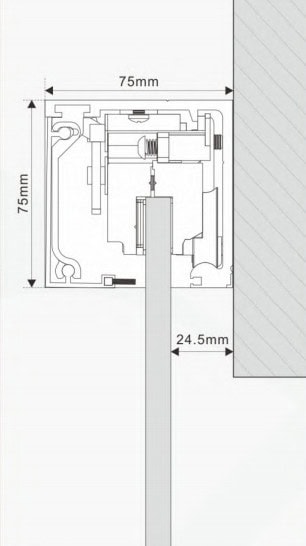

Cover profile size: 75mm
Rail Length: 2000mm(78-3/4inch), or to be customized
Max Loading: 80kg (176LBS) with Soft closing & 120kg W/O soft closing
Working Cycles: 100000cycles
For Door Type: Glass door
For Door thickness: 10mm to 12mm
Soft Closing: Optional
Features: 1. It has a simple appearance,
2. Height can be adjusted ± 4mm, and it is more convenient to adjust from the front;
3. Glass door and wooden door pulleys and rails are universal, only need to increase the wooden door connectors and replace the swing stop instantly;
4. With soft close glass does not need to open the hole;
5. Door width(with soft close ) ≥ 700mm
6.Door width(without soft close ) ≥ 400mm
Other Suitable for external mounting


The Alu Track Sliding Glass Door System (Model NO. YMXT-XC14) is a high-quality interior door solution designed for residential use. This system features a sleek and modern black powder-coated aluminum frame, providing both durability and style.
Key features of the Alu Track Sliding Glass Door System include:
Adjustable height: The door height can be easily adjusted by ± 4mm from the front, making installation and maintenance more convenient.
Versatile design: The pulleys and rails are universal, allowing for use with both glass and wooden doors. Wooden door connectors can be added, and the swing stop can be instantly replaced to accommodate different door types.
Soft closing mechanism (optional): The soft closing feature ensures gentle and smooth door closure. When using this option, no holes need to be drilled in the glass door.
Door width compatibility: With the soft close option, the minimum door width is 700mm. Without the soft close, the minimum door width is 400mm.
The rail length is 2000mm (78-3/4 inches) but can be customized to fit your specific requirements. The system is designed to support glass doors with a thickness of 10mm to 12mm. The maximum loading capacity is 80kg (176 lbs) with the soft closing mechanism and 120kg without it. The Alu Track Sliding Glass Door System has been tested to withstand 100,000 working cycles, ensuring long-lasting performance.
This product is a popular choice in the market, known for its simple appearance, ingenious rail cover design, and gentle sliding closure when equipped with a soft closing mechanism.

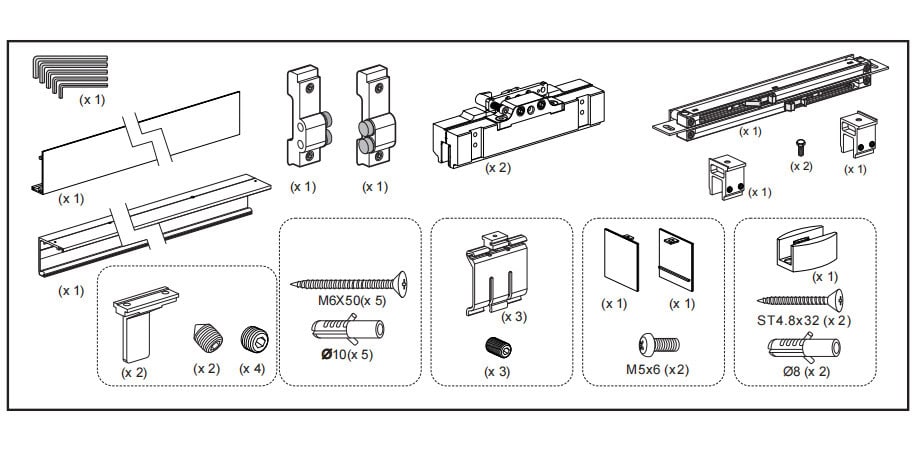

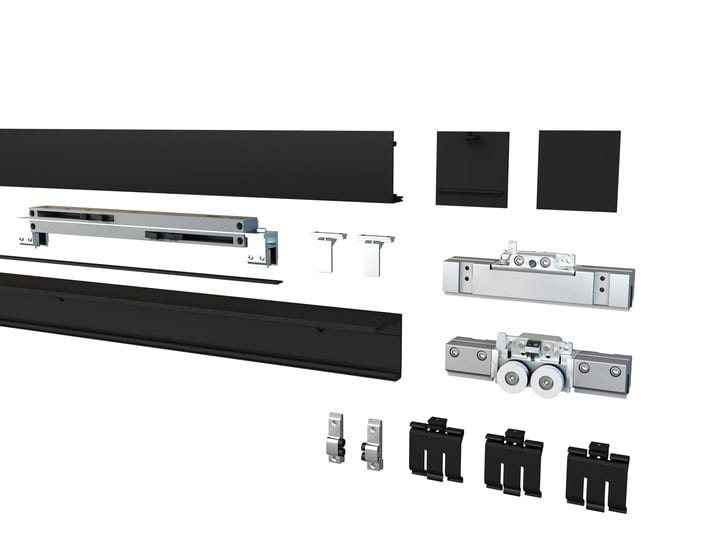

Part assembly

Product Package

Packing Method Components into boxes and a complete set into a carton,then into wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size(hardware) 2030*130*80 mm
QTY/Pallet 84/PLT
Pallet Size 2110*1020*1125mm
Loading QTY 840sets/20GP
