Western Glass Sliding Door System, Aluminum Track, 72×76 inch

Model NO.: YMXT-XC19
Ref.NO.: 150304-0095
Brief Descritpion: Aluminum track sliding glass door system
Position: For interior door use
Application: Both Residential&Commercial
Main Material: Aluminum
Surface Finish: Anodization or black powder coating
Cover&Rail Profile Size: 65x48mm
Rail Length: 2000mm(78-3/4inch),or to be customized
Max Loading: 80kg(176LBS) with Soft closing
Working Cycles: 100000cycles
For Door Type: Glass doors
For Door Thickness: 6mm to 12mm
Soft Closing: Included(Optional)
Features: No need glass cutting/drilling for the soft closing
Others: It’s very quiet and smooth sliding with noise less than 40DB

Details

More Introduction

This is quite a European-style aluminum track sliding glass door system, the hanging wheels and doorstops are concealed inside the track, which makes the entire sliding door quite simple but decent. It’s quite durable, which could be sustainable for more than 100000 working cycles. The softening closing is included in the product as a default configuration, which guarantees the comfortable using experience as well as the safety preventing from the fingers being hit when the doors are slammed down.

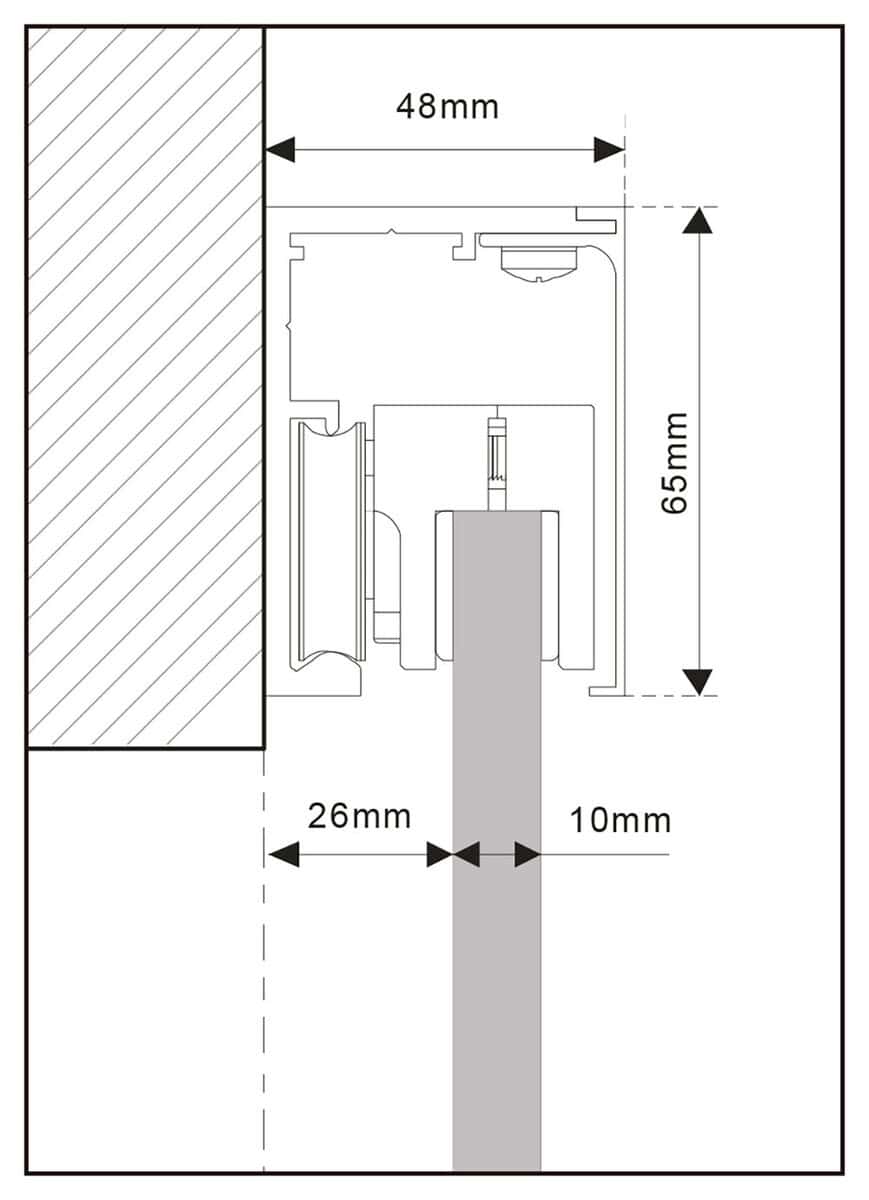

Dimension

Dimension

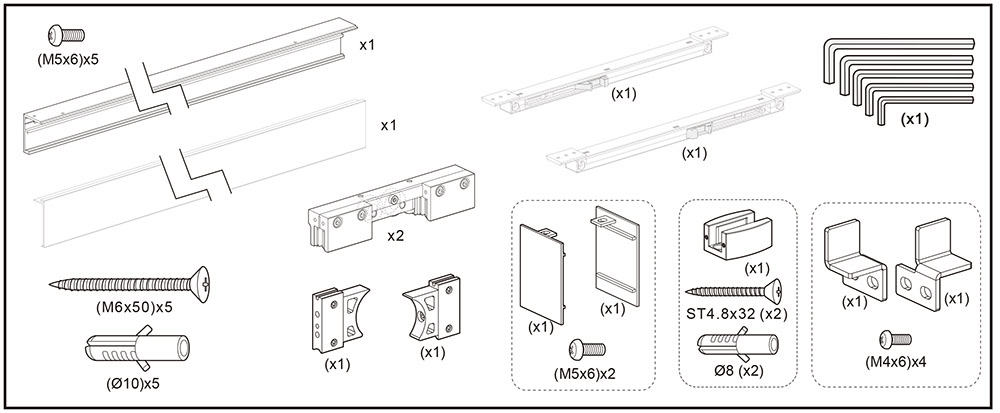

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 72 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040*140*80mm
QTY/Pallet 72/PLT
Pallet Size 2120*900*1120mm
Loading QTY 864sets/20GP, 1872sets/40GP
