Sliding Glass Door System, with Alminum Track, without Aluminum Cover

Upgrade your interiors with this YMXT-XC31 aluminum track sliding glass door system, which effortlessly combines simplicity and sophistication. Designed for both commercial and residential use, it is the perfect choice to elevate space with an elegant interior transformation.

Model NO.: YMXT-XC31
Ref.NO.: 150305-4382&159900-5686
Brief Descritpion: Aluminum track sliding glass door system without aluminum cover
Position: For interior door use
Application: For both commercial & residential use
Main Material: Aluminum
Surface Finish: Anodization
Rail Length: 2000mm(78-3/4inch)
Max Loading: 800kg(176LBS)
Working Cycles: 100000cycles
For Door Type: Glass door
For Door thickness: 10mm(3/8″)
Door Size : 2175*965mm
Soft Closing: Included
Features: This is quite suitable for commercial use, like for hospitality projects.
Request a Quote

Description

Constructed primarily from aluminum, our sliding glass door system boasts an anodized surface finish.

The rail spans a length of 2000mm (78-3/4 inch), promising to carry a load of up to 80kg (176 lbs), attesting to its robust structure.

Notably, the door system is compatible with glass doors having a thickness of 10mm (3/8″). It can accommodate a door size of 2175*965mm, with the flexibility of customizing the glass door size as per your requirements.

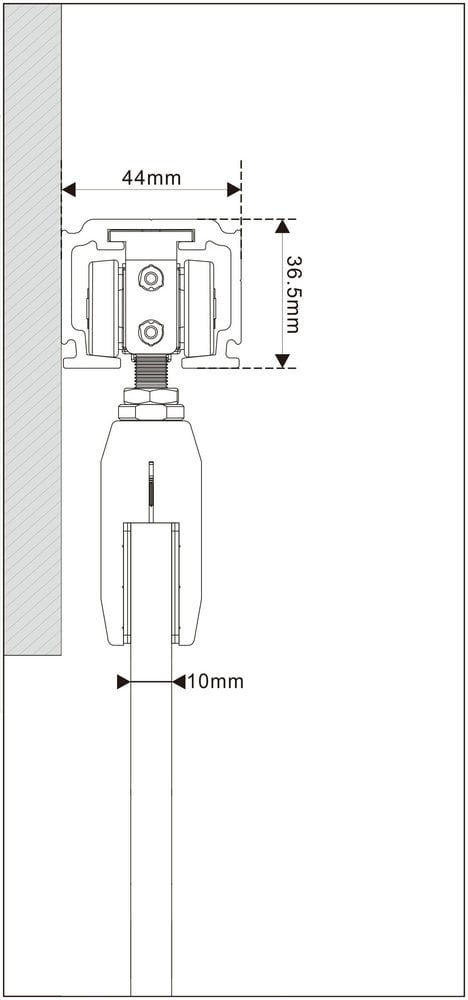

The concealed hanging wheels and doorstops inside the track set this sliding glass door system apart. This design element renders it a sense of simplicity yet decency, adhering to European-style aesthetics.

Additionally, our sliding glass door system’s durability can be gauged by its ability to endure more than 100,000 working cycles.

For an enhanced user experience, it comes with a soft closing feature, ensuring safety by preventing fingers from getting hurt when the doors are abruptly closed.

In short, contact us today and order our product.



By Jane Li

Product Package & Shipping Size

Packing Method Components into boxes and a complete set into a carton, one glass into a carton. 11 sets into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size(hardware) 2040*125*60 mm
QTY/Pallet 112/PLT
Pallet Size 2240*880*1120mm
Loading QTY 1344sets/20GP
