150305-4189 Alu Track Sliding Glass Door System with Alu Cover

Model NO.: YMXT-XC29
Ref.NO.: 150305-4189
Brief Descritpion: Alu track sliding glass door system with alu cover
Position: For interior door use
Application: Residential
Main Material: Aluminum
Surface Finish: Anodization aluminum
Cover Profile Size: 55*65mm
Rail Length: 2000mm(78-3/4inch),or to be customized
Max Loading: 60kg(176LBS)
Working Cycles: 50000cycles
For Door Type: Glass door
For Door Thickness: 8mm(1-3/8inch) to 10mm(1-3/4inch)
Soft Closing: Available
Features: For residential, narrow cover

Details

More Introduction

This is a quite European-style aluminum track sliding glass door system, the hanging wheels and doorstops are concealed inside the track, which makes the entire sliding door quite simple but decent. The narrow cover makes it more modern and simple. It’s quite durable, which could be sustainable for more than 50000 working cycles. The softing closing is included in the product as a default configuration, which guarantees the comfortable using experience as well as the safety preventing from the fingers being hit when the doors are slammed down.

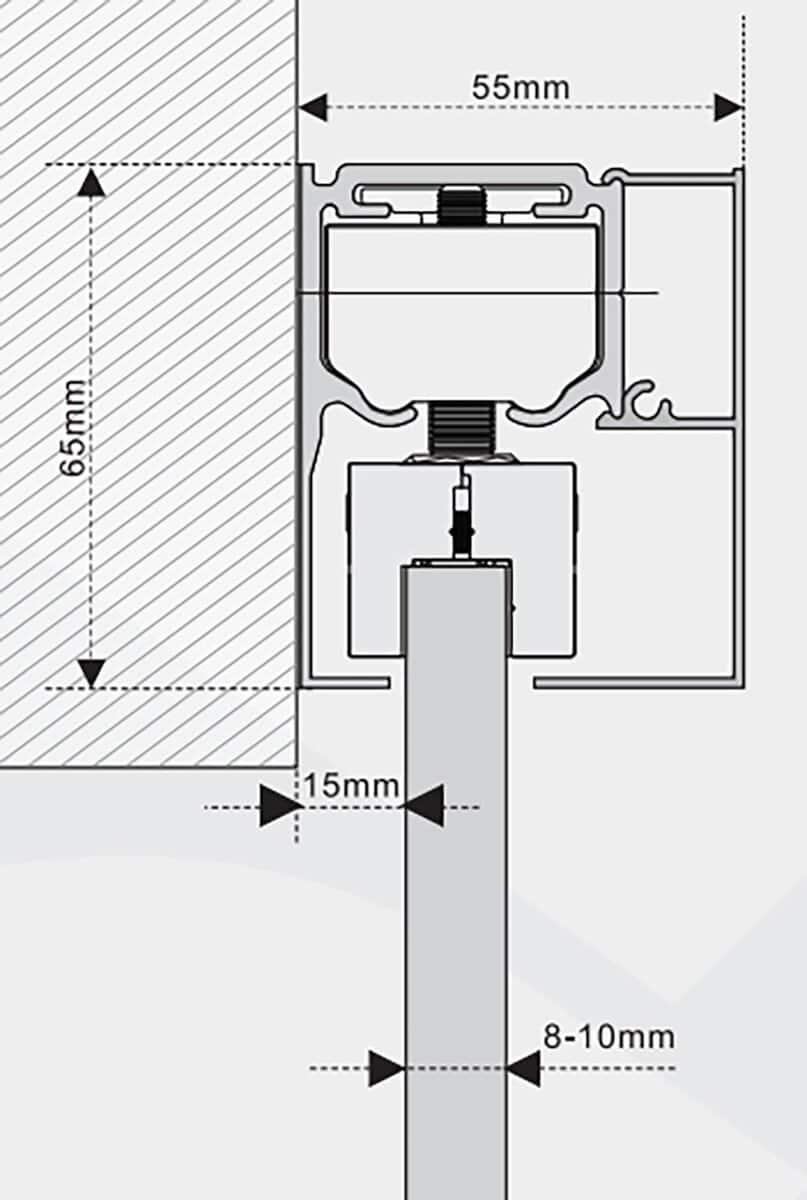

Dimension

Dimension

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 40 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2030*125*75mm
QTY/Pallet 104/PLT
Pallet Size 2140x1110x1130mm
Loading QTY 1040sets/20GP,2080/40GP
