Metal Frame steel glass pivot door interior door use Carbon steel & Tempered glass

Model NO.: TKM-YY22
Ref. NO.: 151000-3448

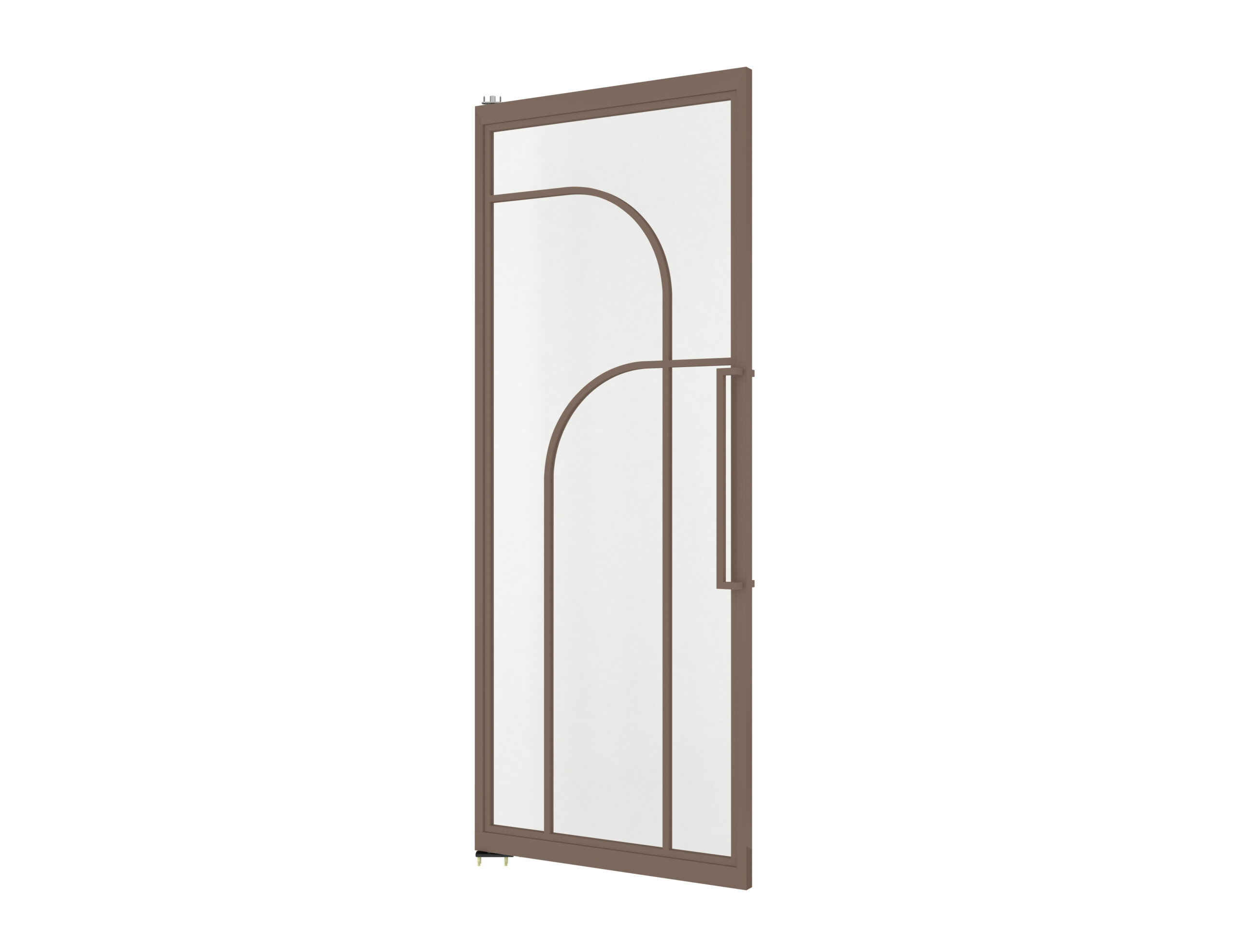

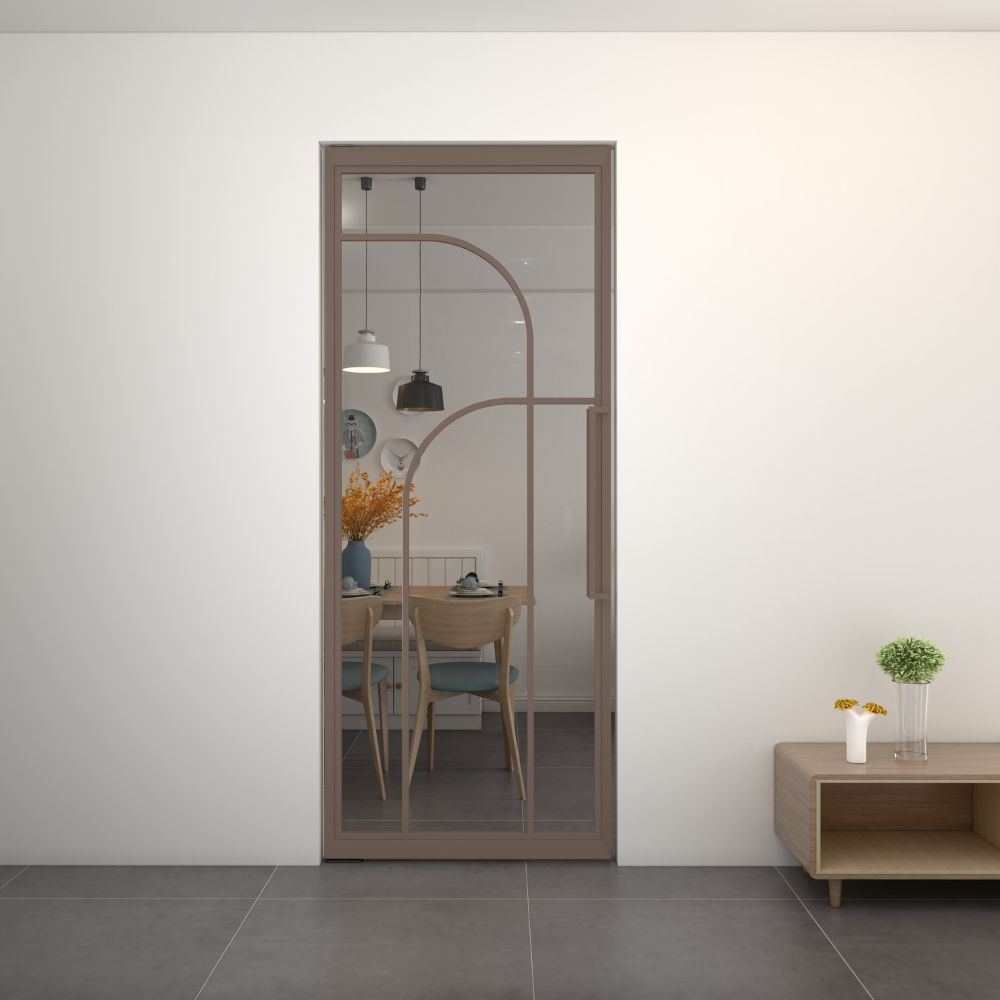

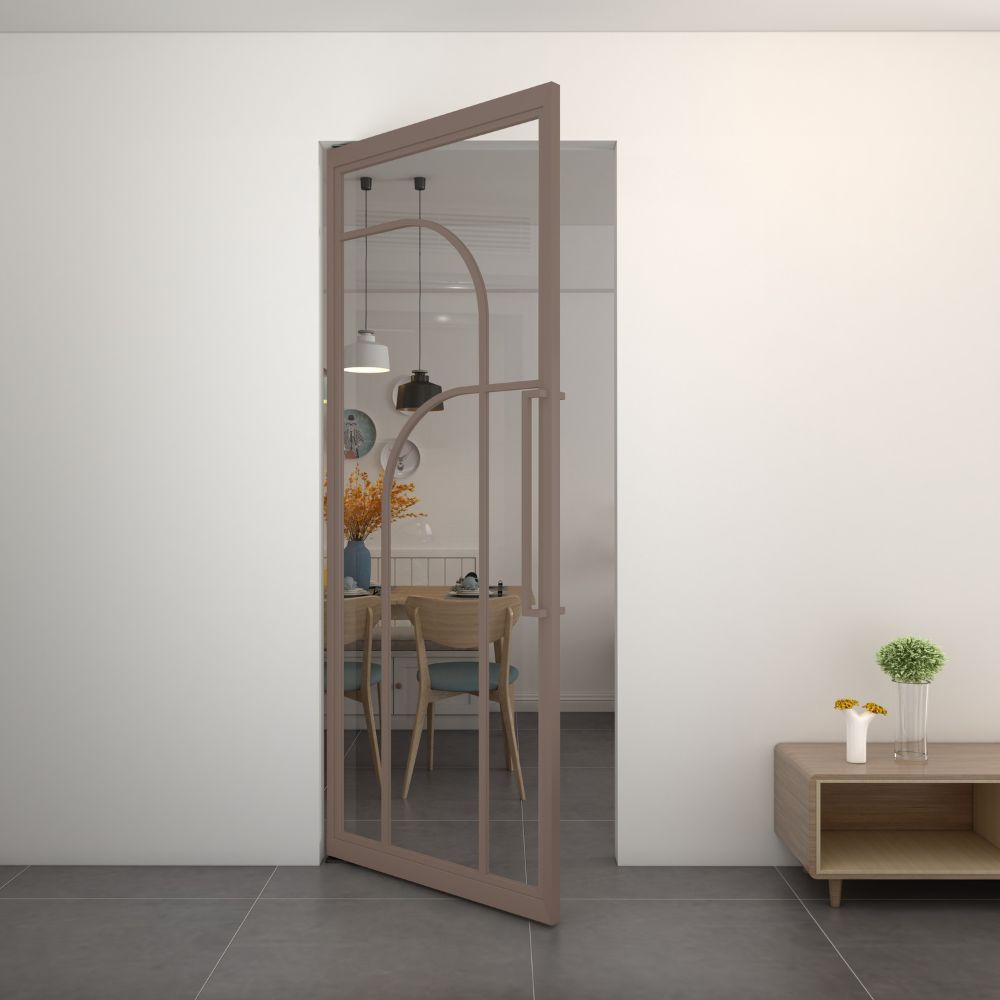

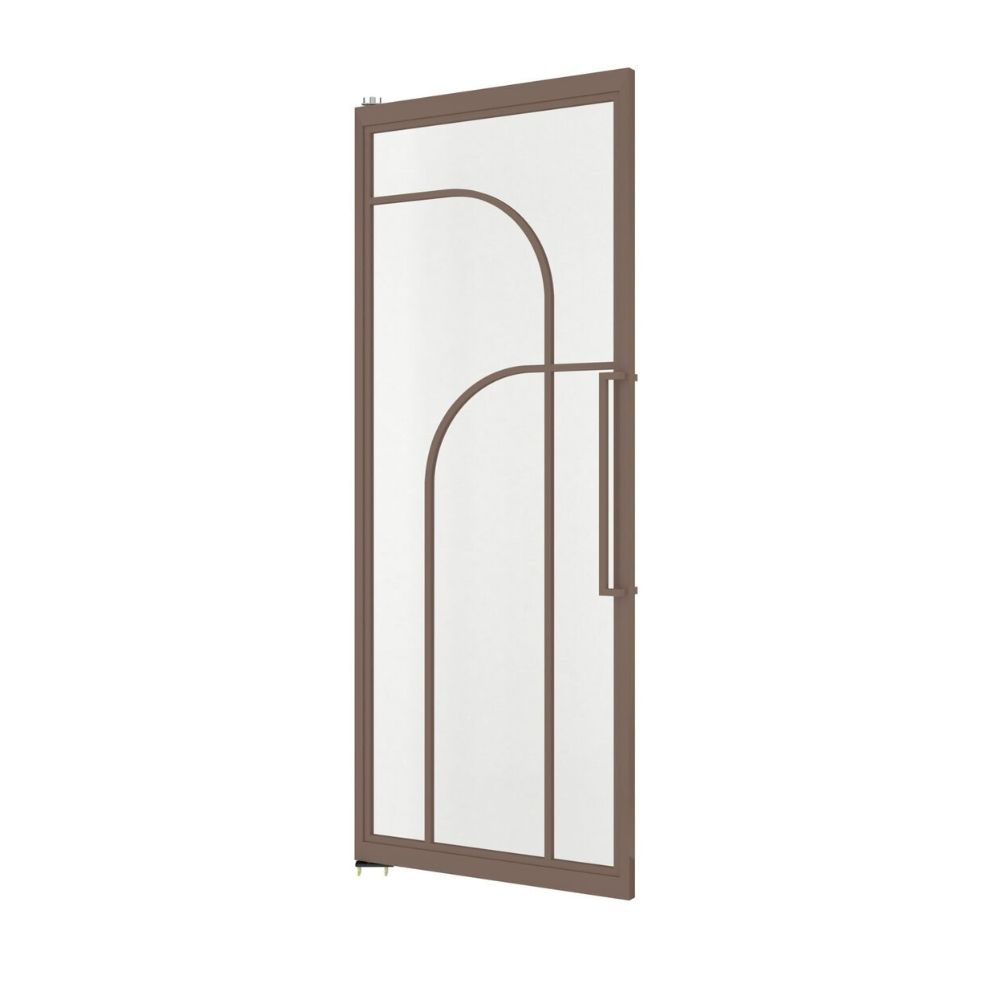

Brief Description: Metal Frame steel glass pivot door
Position: For interior door use
Application: Both Residential and commercial use
Opening style: Swing opening
Main Material: Carbon steel, Tempered glass
Surface Finish: RAL 8014 Bronze powder coating
Door size 2315x930mm or customized

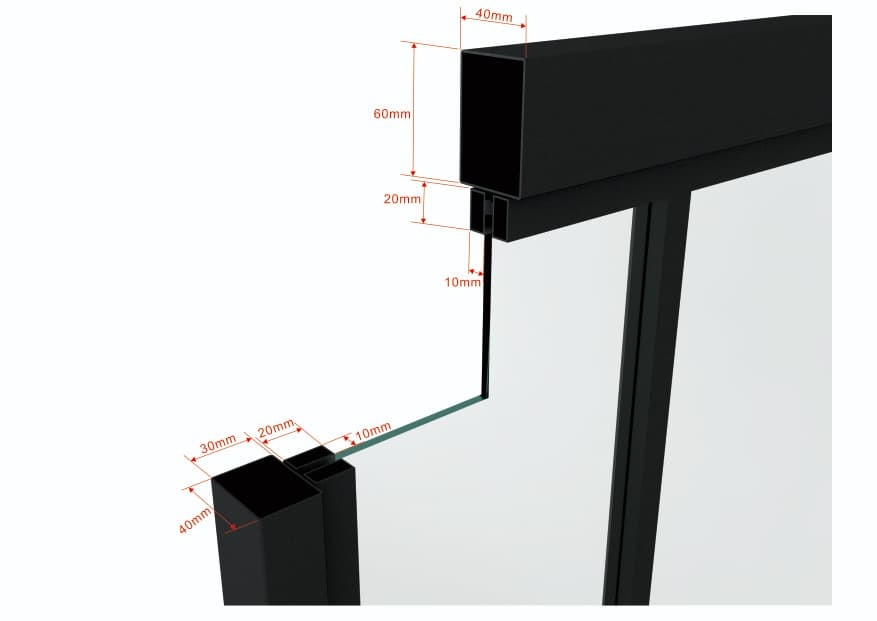

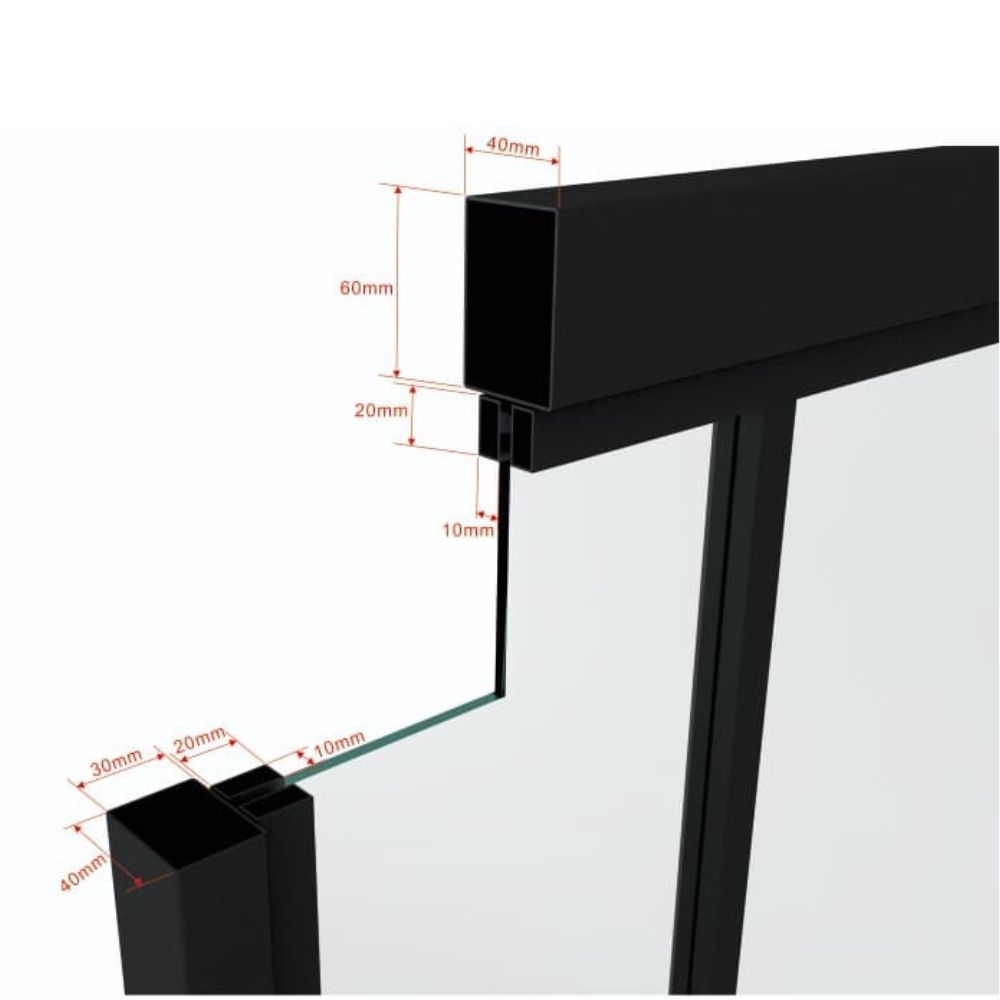

Door & Frame thickness 40mm
Glass thickness 4mm
Glass Pattern: Clear

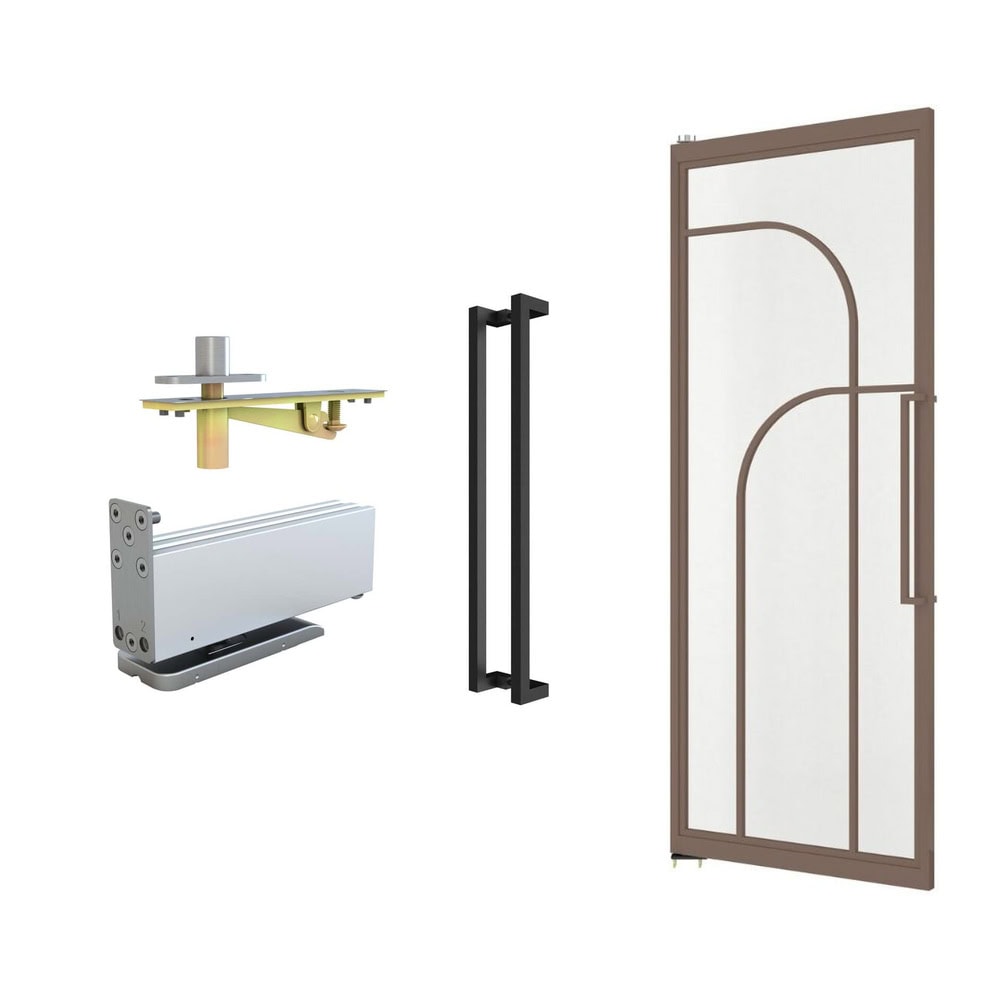

Others: With door frame and hinges, handles are also optional
Request a Quote

Description

Elevate your architectural vision with the TKM-YY22 Metal Frame Steel Glass Pivot Door. This premium interior solution redefines modern transitions by replacing traditional side-hung hinges with a sophisticated vertical axis rotation. The pivot mechanism allows the door to swing elegantly in both directions, creating a seamless and stylish flow between living or working areas. Designed for both high-end residential projects and professional commercial environments, this door serves as a minimalist focal point that prioritizes both form and function.

Key Features:

  • Model: TKM-YY22 (Ref. No. 151000-3448)
  • Precision Engineering: Featuring a 2315mm height and 930mm width with a 40mm profile thickness, this unit provides a substantial, high-quality feel while maintaining a sleek silhouette.
  • Superior Materials & Finish: Built from robust carbon steel and finished with a RAL 8014 Bronze powder coating, the frame offers exceptional durability and a warm, contemporary aesthetic. The 4mm clear tempered glass ensures safety while maximizing natural light transmission across rooms.

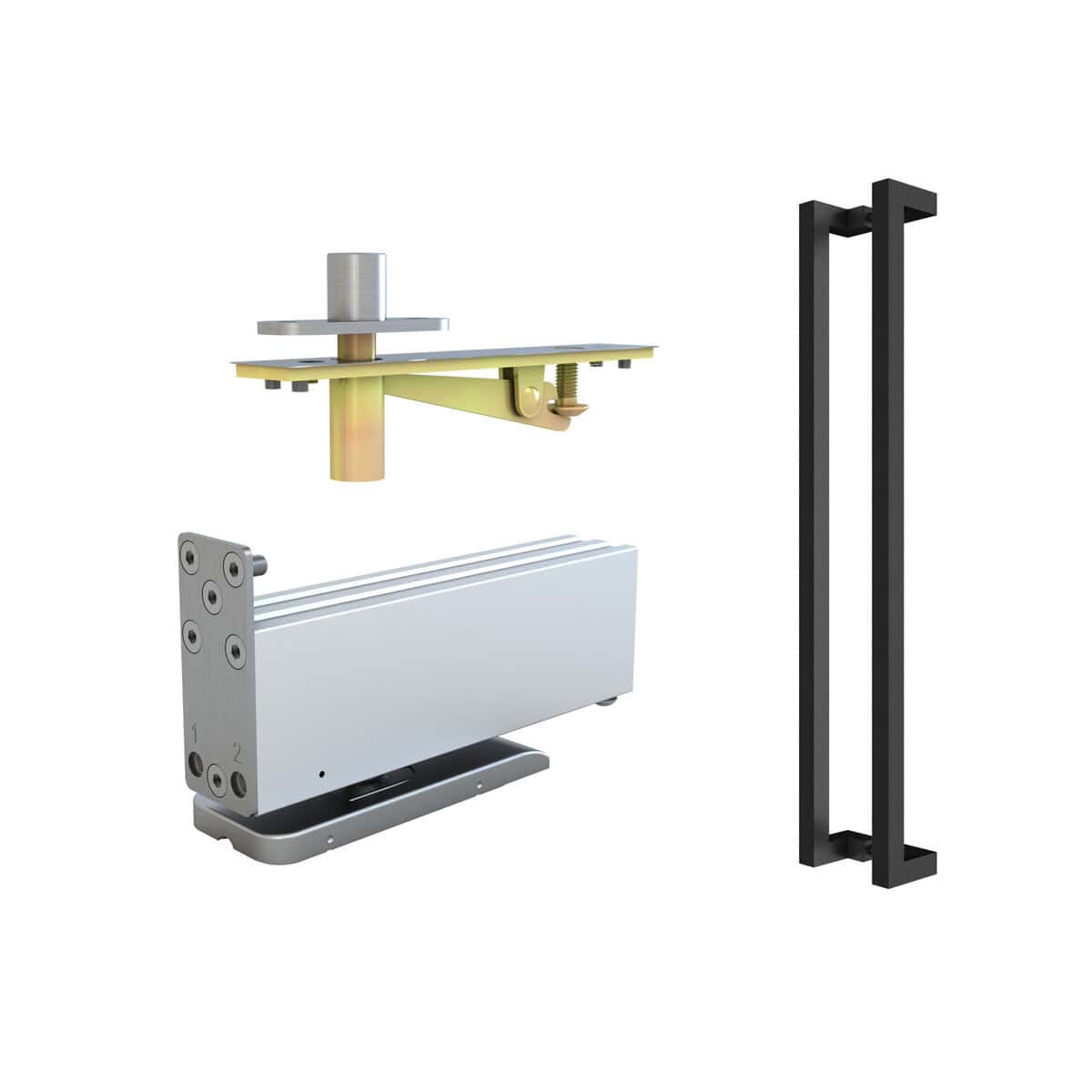

  • Advanced Pivot Technology: The specialized hardware includes a soft-close function that gently returns the door to the zero position, preventing slamming. The integrated hold-open function at specific angles allows for unobstructed passage when required, operating with a smooth, silent motion.
  • Versatile Installation: Unlike traditional doors that require heavy framing, this pivot system offers a cleaner look that can be installed in diverse interior settings. Optional handles and various customized sizes are available to meet specific project requirements.
  • Secure Logistics: Each unit is meticulously protected with EPE strips and corner protectors within a reinforced carton. For large-scale developments, we provide efficient palletized loading, accommodating 100 pieces per 20GP container or 220 pieces per 40GP container.

Partner with Us for Your Next Project:

At Tengyu, we provide high-performance door solutions tailored for contractors, architects, and wholesalers. Our TKM-YY22 Pivot Door offers the reliability and aesthetic appeal necessary for premium interior design. We offer extensive customization and flexible shipping methods to align with your project timeline and delivery needs.

Contact us today to discuss the TKM-YY22 Metal Frame Steel Glass Pivot Door and discover how our precision-engineered door systems can transform your interior spaces.

Product Package & Shipping Size

Packing Method Each door has a cardboard box with EPE strips and 4 corner protectors around the box, then a certain amount will be placed in a plywood pallet, this packing method is suitable for physical stores, if you need to sell online, we also have stronger mail order packaging.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2405*1055*80mm
QTY/Pallet 12PCS/PLT
Pallet size 2410*1065*1100mm
Laoding QTY 100PCS for 1x20GP and 220PCS for 1x40GP
