Natural MDF Cover Sliding Wooden Door System for Interior Door

Model NO.: YMXT-XC09
Ref.NO.: 150305-0025
Brief Description: Natural MDF cover sliding wooden door system
Position: For interior door use
Application: Residential
Main Material: Aluminum,MDF,pine
Surface Finish: Anodization aluminum and natural MDF, natural pine
Cover profile Size: 130*12mm
Rail Length: 2000mm(78-3/4inch),or to be customized
Max Loading: 60kg(176LBS)
Working Cycles: 30000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 35mm(1-3/8inch) to 45mm(1-3/4inch)
Soft Closing: Available
Features: The MDF and the pine parts need to be painted or stained by the end users to match the door panel and the furniture
Others: FSC is available.

Details

More Introduction

The MDF cover and MDF caps make the sliding system quite feasible to match different door finish or your furniture finish, adding a contemporary look to your home.
With the soft closing, the sliding closing will be quite gentle. Furthermore, this sliding door system helps save space compared to most hinged swing doors.

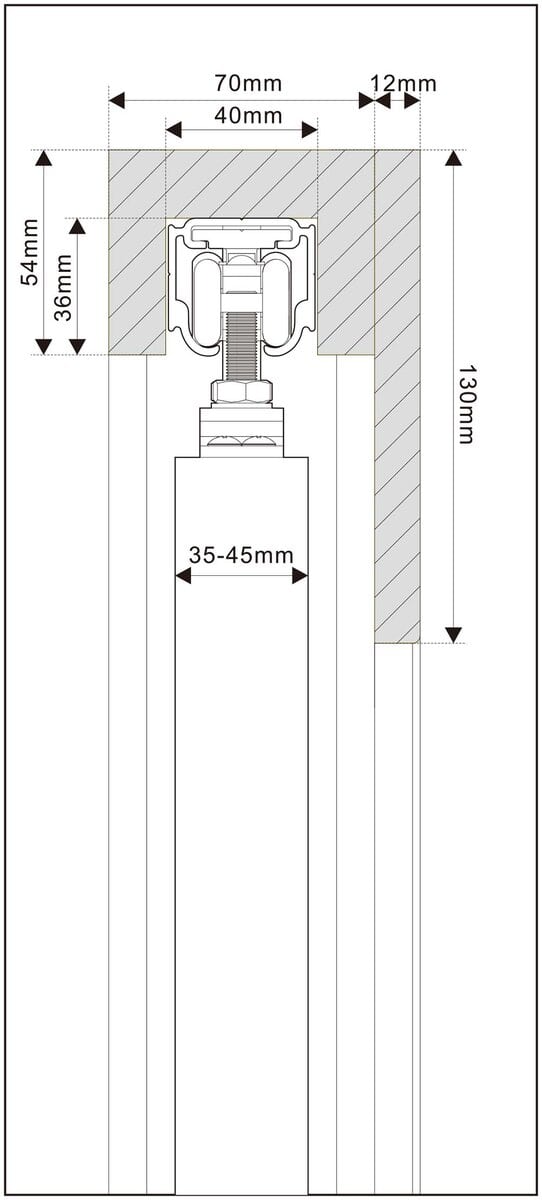

Dimension

Dimension

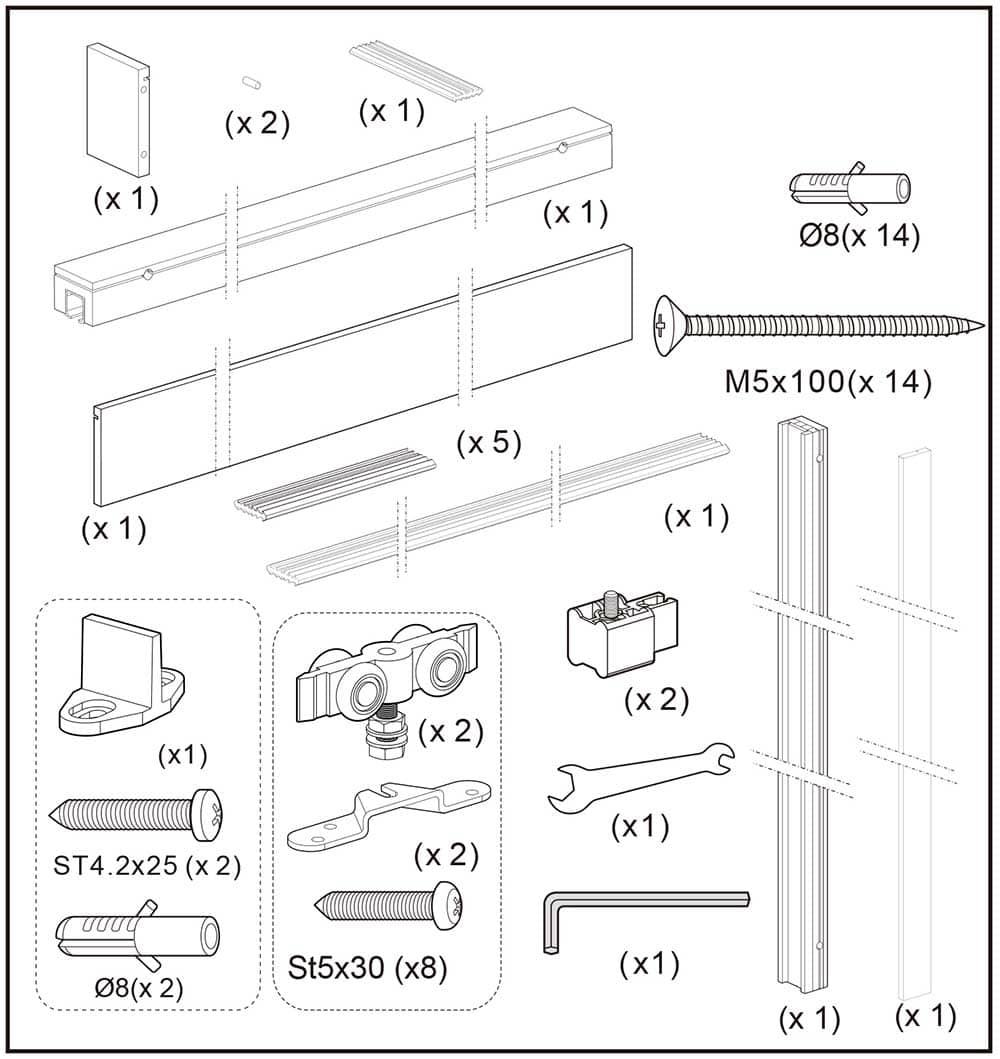

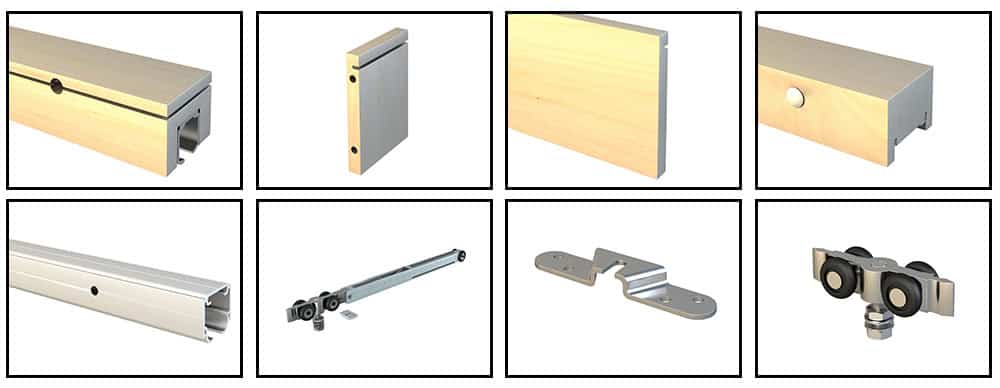

Part assembly

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 40 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2190*170*100mm
QTY/Pallet 40/PLT
Pallet Size 2250*1000*1080mm
Loading QTY 400sets/20GP,800/40GP
