Aluminum Track for Glass Door

Searching for an upgrade to your wholesale product selection? Discover the 150305-0014 aluminum track for GModel, a European-inspired track system designed for interior glass doors.



Model NO.: YMXT-XC02
Ref.NO.: 150305-0014
Brief Descritpion: Kidal for glass door
Position: For interior door use
Application: Residential
Main Material: Aluminum
Surface Finish: Anodization aluminum
Rail Length: 2000mm(78-3/4inch),or to be customized
Max Loading: 60kg(176LBS) with soft-close
Working Cycles: 30000cycles
For Door Type: Wooden doors, metal frame doors
For Door Thickness: 8mm to 12mm
Soft Closing: Optional
Others: Without soft-close max loading will be 80KGS(176LBS) working cycles will be 50000cycles

Details

Our aluminum track, designed for residential use, boasts a sleek and elegant design crafted from high-quality anodized aluminum to ensure durability and long-lasting performance.

Featuring a rail length of 2000mm (78-3/4 inches) or customizable options, it accommodates wooden doors and metal frame doors with thicknesses ranging from 8mm to 12mm. With hanging wheels and door stops cleverly concealed within the track, it also presents a streamlined and minimalist aesthetic.

The aluminum track supports a maximum loading capacity of 60kg (176 lbs) with soft-close and 80kg (176 lbs) without soft-close, while offering 30,000 working cycles with soft-close and 50,000 working cycles without soft-close for dependable performance.

Experience enhanced comfort and safety with the optional soft-close feature, which prevents finger injuries from door slams. Don’t wait; add this sophisticated track to your wholesale product lineup today!

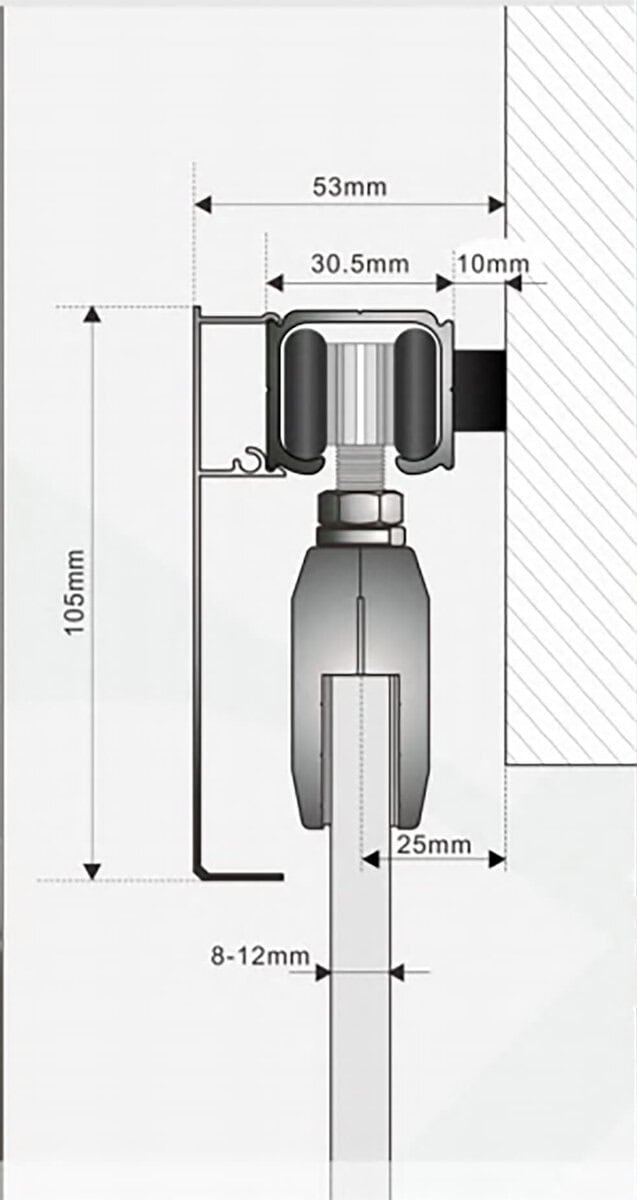

Dimension

Dimension

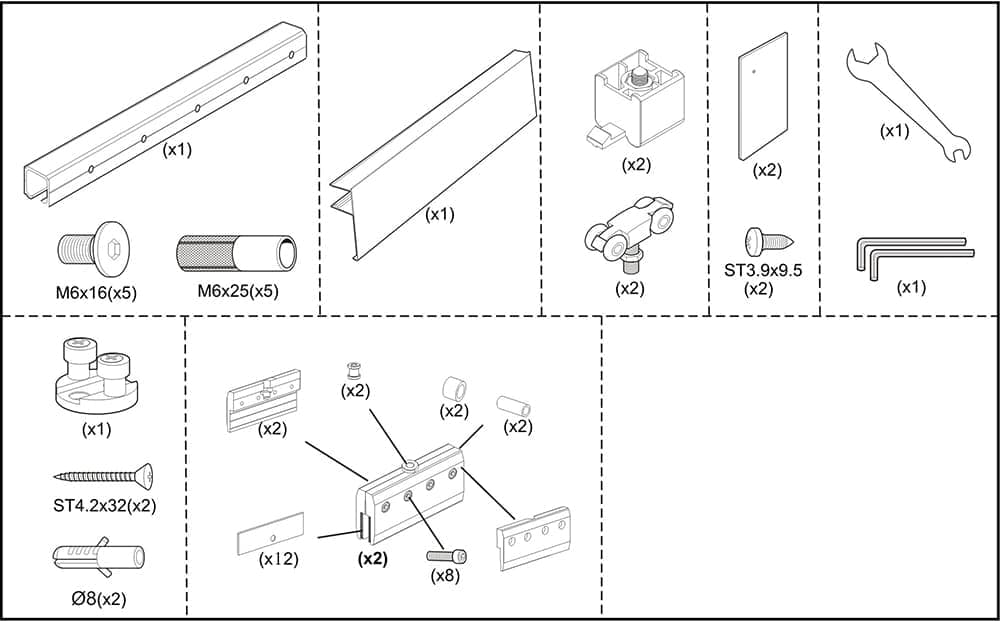

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 104 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040*125*75mm
QTY/Pallet 104/PLT
Pallet Size 2140*1140*1070mm
Loading QTY 1040sets/20GP, 2080/40GP
