Double Sliding Bypass Barn Door Hardware System

Model NO.: YMXT-BG01(TSQ04 PYPASS bracket)
Ref.NO.: 150204-0555
Brief Description: Sliding bypassing barn door system
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile Size: 40x6mm
Rail Length: Two piece of rail, each rail length could be 1524mm(60inch), 1830mm(72inch), 2000mm(78-3/4inch), 2134mm(84inch), 2438mm(96inch) and so on.
Max Loading: 200kg(440LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional

Details

More Introduction

This is classic barn door hardware but for bypassing doors thanks to the use of bypassing bracket. The barn door was originally used as a warehouse door on the farm, It was later incorporated into interior use with an improved design.
Because the sliding barn doors are perfect for a variety of decor styles, such as rustic style, industrial style, nordic, modern style, etc., it becomes a choice of more and more households globally.

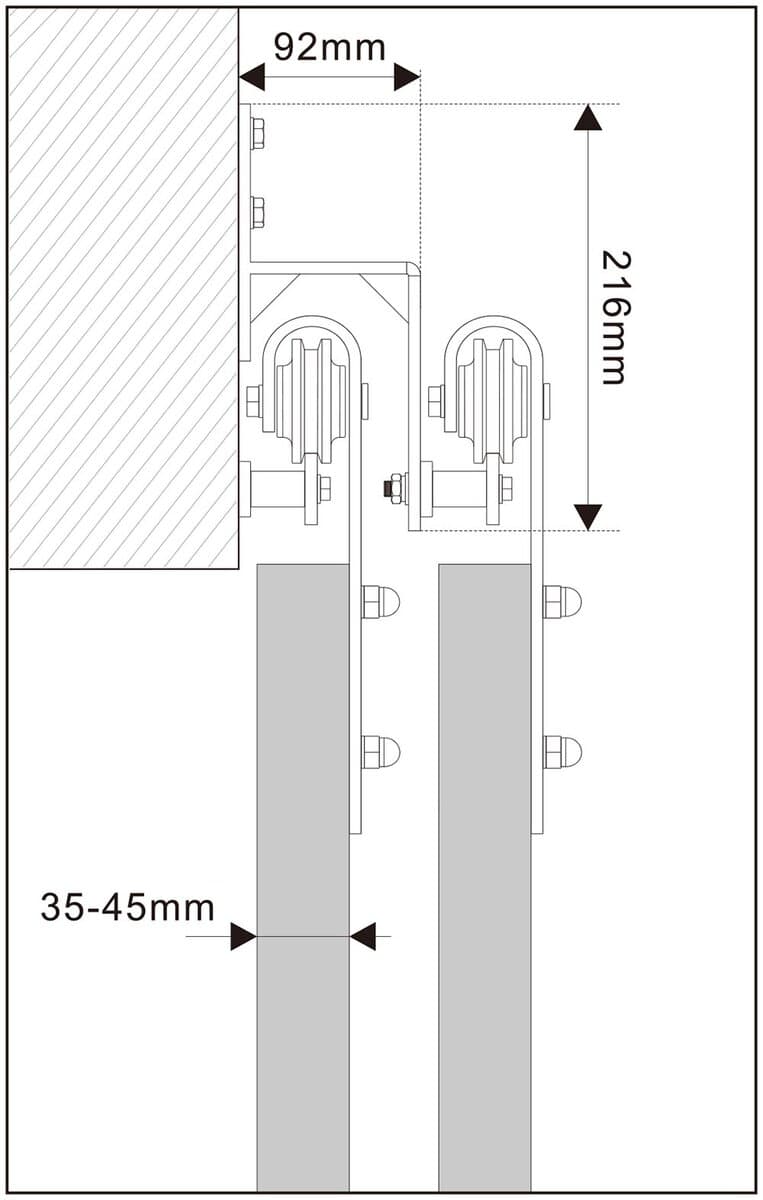

Dimension

Dimension

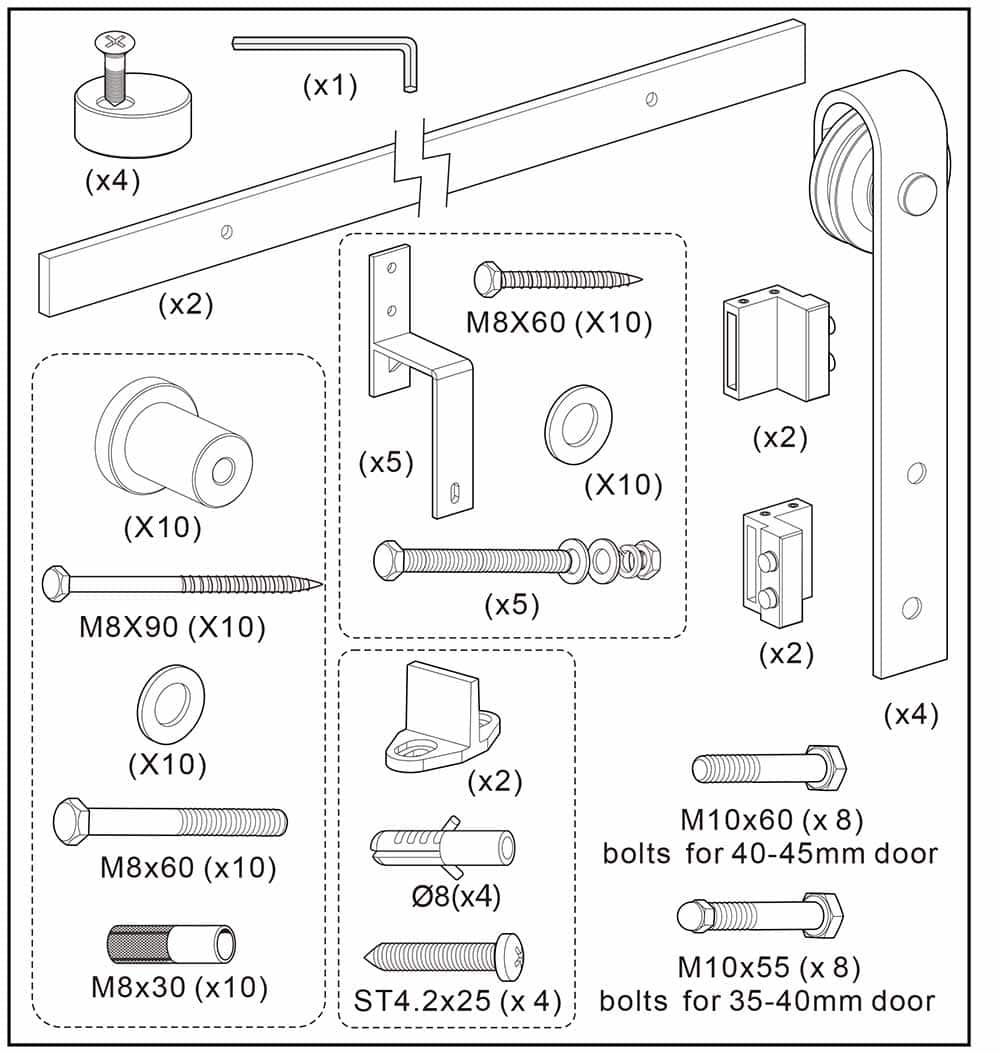

Part assembly

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 88sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1870*150*80mm (for rail length 1830mm)
QTY/Pallet 66sets/PLT
Pallet Size 196x96x106cm
Loading QTY 792sets for 1x20GP;2016sets for 1x40HQ
