Frameless Steel Pivot Door with Glass

Model NO.: TKM-YA02
Ref.NO.: 151000-2121
Brief Descritpion: Frameless steel glass pivot door-luxury
Position: For interior door use
Application: For bathroom or kitchen, residential or commercial
Opening Style: Swing opening
Main Material: Carbon steel, Tempered glass
Surface Finish: Black powder coating
Door Size 2315*930*40mm
Door Thickness 40mm
Glass Thickness 5mm
Glass Pattern Clear glass
Durability 100000 working cycles

Details

Introducing our stunning Frameless Steel Pivot Door with Glass, the perfect blend of luxury and functionality for your interior spaces. This sleek and modern door is designed to make a statement in any room, whether it’s a bathroom, kitchen, or any other residential or commercial setting.
Crafted with high-quality carbon steel and tempered glass, this pivot door offers unparalleled durability and style. The black powder-coated finish on the steel provides a sophisticated look while also protecting against wear and tear. The clear, 5mm thick tempered glass allows natural light to flow through, creating an open and airy feel in your space.
One of the standout features of this pivot door is its unique swinging mechanism. Unlike traditional hinged doors, the pivot hinge is hidden within the door and the floor, allowing for a seamless and streamlined appearance. The door can rotate a full 360 degrees, providing a wide, unobstructed opening for easy access.
Measuring 2315mm in height, 930mm in width, and 40mm in thickness, this pivot door is designed to fit a variety of doorways and can be easily customized to suit your specific needs. The hydraulic pressure system ensures smooth, effortless operation, and the door can be opened and closed with just a gentle push.
Ideal for creating a grand entrance or adding a touch of elegance to any room, our Frameless Steel Pivot Door with Glass is a must-have for those who appreciate both form and function. With its durable construction and timeless design, this pivot door is built to last and will continue to impress for years to come.
Upgrade your interior doors with our Frameless Steel Pivot Door with Glass and experience the perfect combination of luxury, performance, and style. Order yours today and transform your space into a true showpiece.



8

9

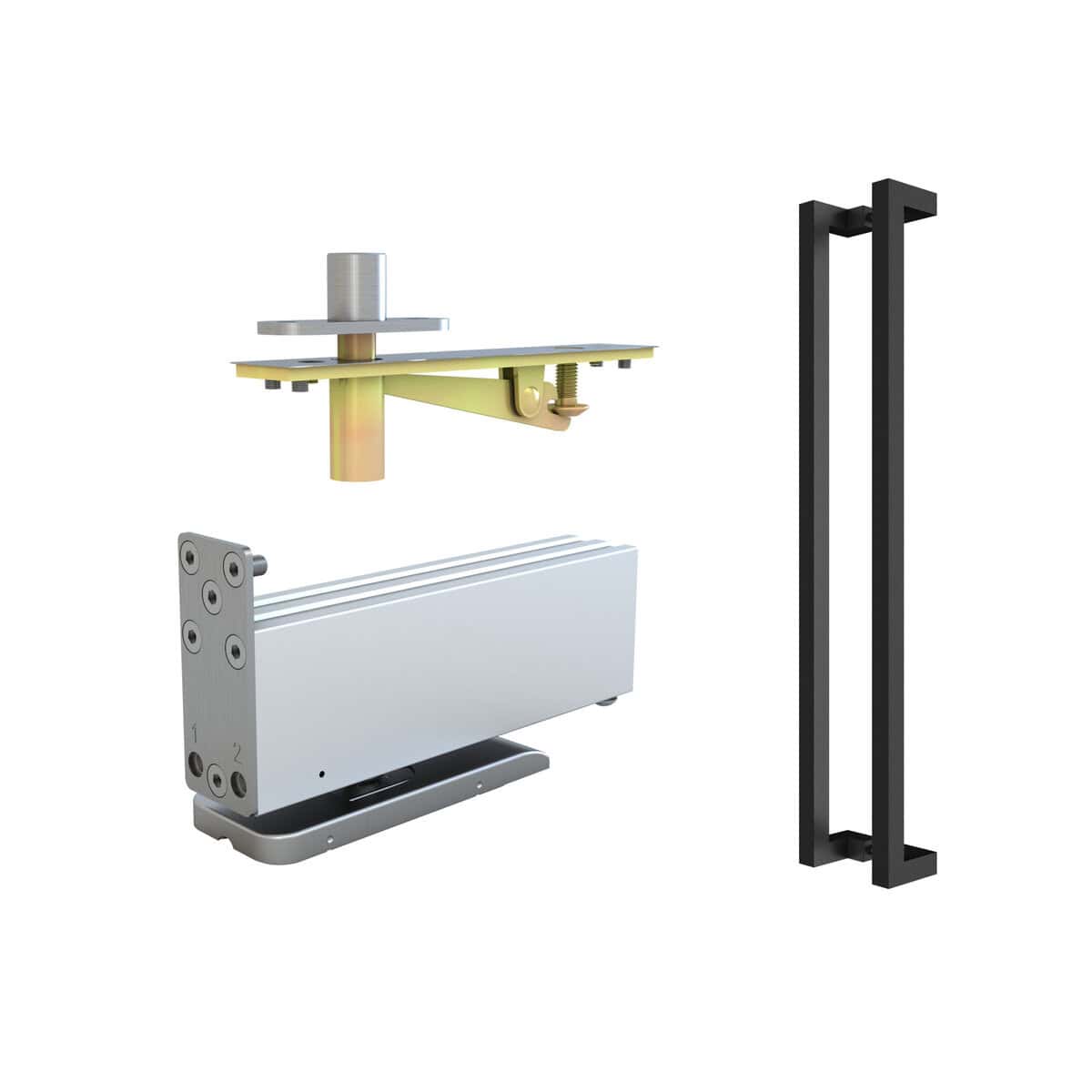

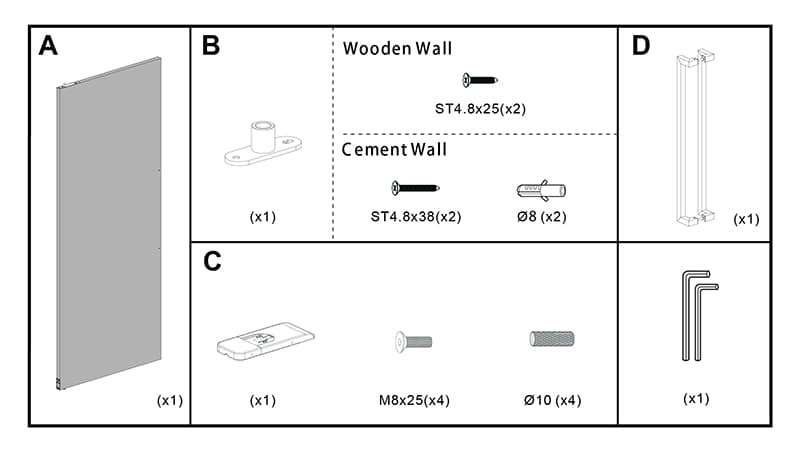

Components List

6

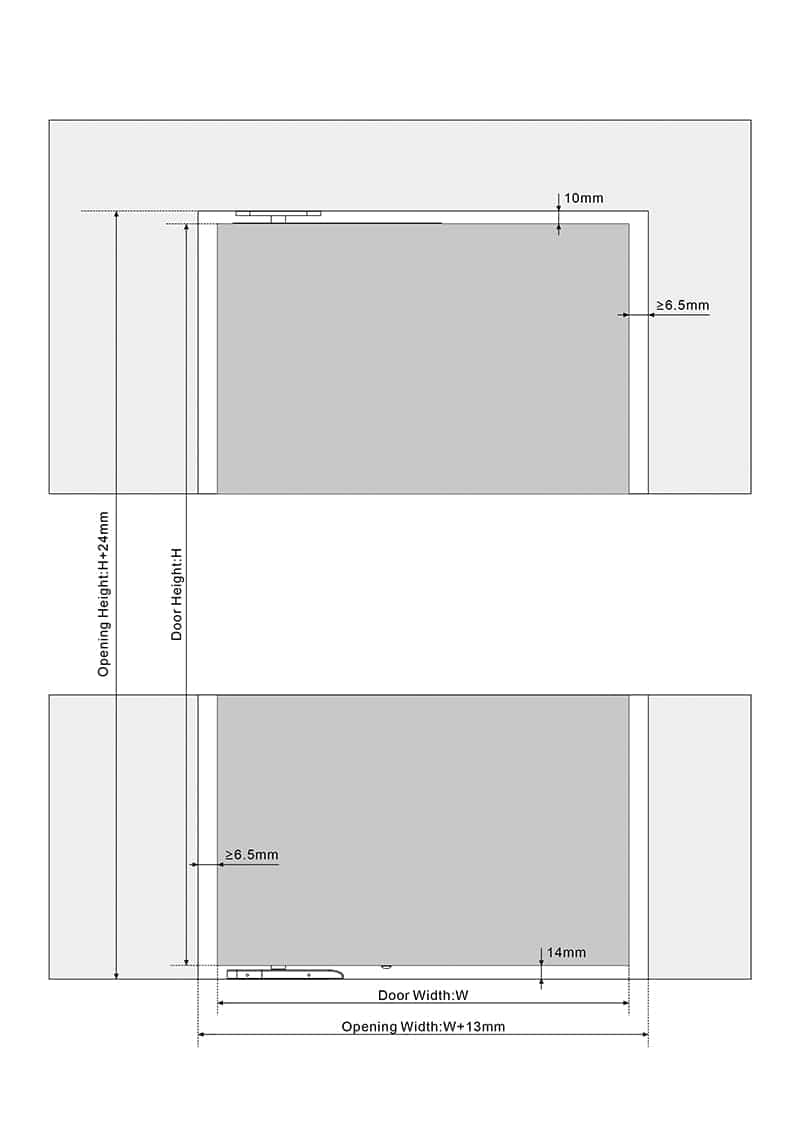

Product Dimensions


Product Package

Packing Method A piece of the full door into a carton, with EPE or equivalent filling material inside the carton, then 13 cartons onto a pallet. The outer carton can be painted company logo or paste the color paper of product info.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2455*1010*90mm
QTY/Pallet 13 Sets/PLT
Pallet Size 2475*1100*1300mm
Loading QTY 88 PCS for 1x20GP and 208 PCS for 1x40HQ
