Stainless Steel Face Mounting Sliding Door System for Wooden Doors Metal Frame Doors

Model NO.: YMXT-YG51
Ref.NO.: 150101-0012
Brief Descritpion: Stainless steel Face mounting sliding door system
Position: For interior door use
Application: Residential
Main Material: Stainless steel
Surface Finish: Brushed stainless steel
Rail Length:  71 3/4inch (1820mm), or to be customized
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors

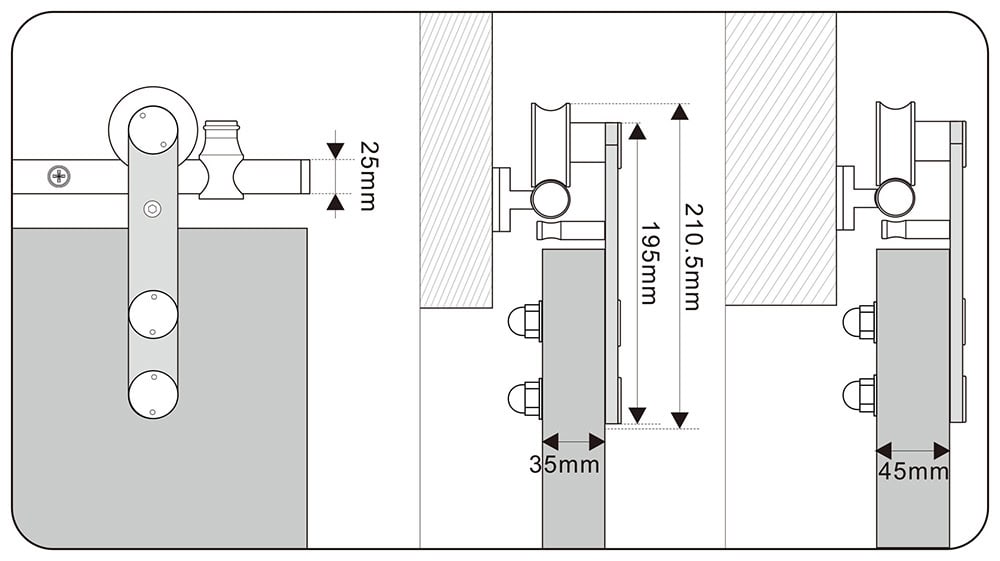

For Door Thickness: 35mm(1-3/8inch) to 45mm(1-3/4inch)
Features: The soft closing function could be optional


More Introduction

The stainless steel sliding track hardware system features a stylish and modern design for hanging sliding glass or wood doors. It is a perfect solution for where space is at a premium and aesthetics are important such as offices, hotel rooms, laundry rooms, closets, bathrooms, and multifamily units. The stainless steel hanger glide along on nylon wheels and its smooth and quiet operation makes it appropriate for shared spaces. Each hanger is equipped with an anti-rise pin to ensure the door can not be lifted off the track. It meets the performance requirement of ANSI/BHMA 156.14.

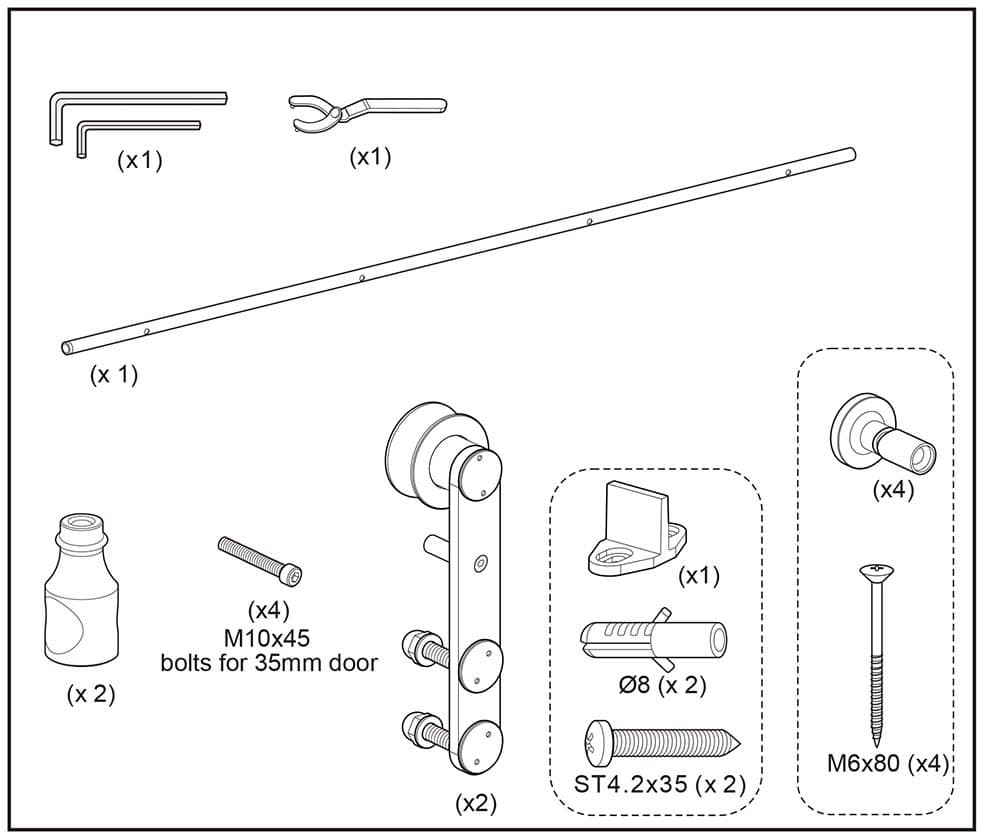

Part assembly

Part assembly

Product Package

Packing Method Components into EPE are then packed in a blister pack, a complete set into a carton, around  60 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1870*125*80MM
QTY/Pallet 60/PLT
Pallet Size 1950*870*1070MM
Loading QTY 720sets/20GP, 1560sets/40GP
