Black Barn Door Hardware, Rhombic Shape, Hanging Style

Presenting our rhombic shape hanging style black barn door hardware, an eye-catching and practical solution for interior door applications in residential and commercial settings.

Model NO.: YMXT-BG10(TSQ08 PYPASS bracket)
Ref.NO.: 150204-1250
Brief Description: Rhombic shape hanging style sliding barn door hardware
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating

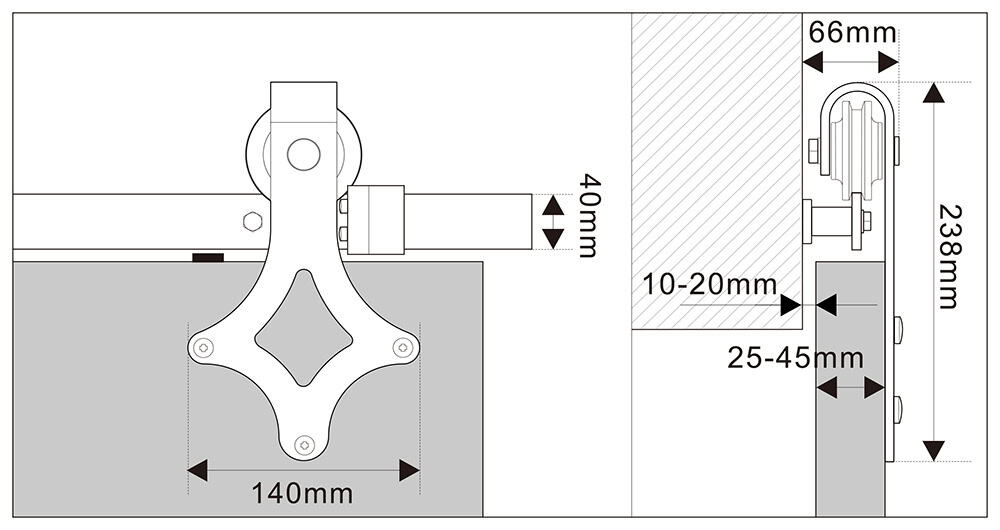

Rail Profile Size: 40x6mm
Rail Length: 1830mm(72inch),2000mm(78-3/4inch),2134mm(84inch),2438mm(96inch)
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional


Constructed from robust carbon steel and finished with a sleek black powder coating, this black barn door hardware is visually appealing and built to last.

Its rail profile measures 40x6mm, and the rail length is available in multiple sizes, including 1830mm (72 inches), 2000mm (78-3/4 inches), 2134mm (84 inches), and 2438mm (96 inches).

Designed to support a maximum loading capacity of 100kg (220 lbs) and withstand 100,000 working cycles, the hardware also guarantees long-lasting performance and reliability.

Suitable for wooden doors and metal frame doors with a thickness of 25mm (1 inch) to 45mm (1-3/4 inches), our black barn door hardware offers versatility for a range of installations. And the optional soft-closing feature enhances your experience by providing a smooth and controlled closing motion.

In addition, originally utilized as warehouse doors on farms, barn doors have since been integrated into interior design and continue to gain popularity worldwide. Their ability to seamlessly blend with various decor styles, including rustic, industrial, Nordic, and modern aesthetics, makes them versatile and attractive for any space.

In conclusion, with its distinctive rhombic-shaped sliding roller, this black barn door hardware caters to a wide range of aesthetic preferences and effortlessly complements various decor styles. Elevate your wholesale inventory with our product.

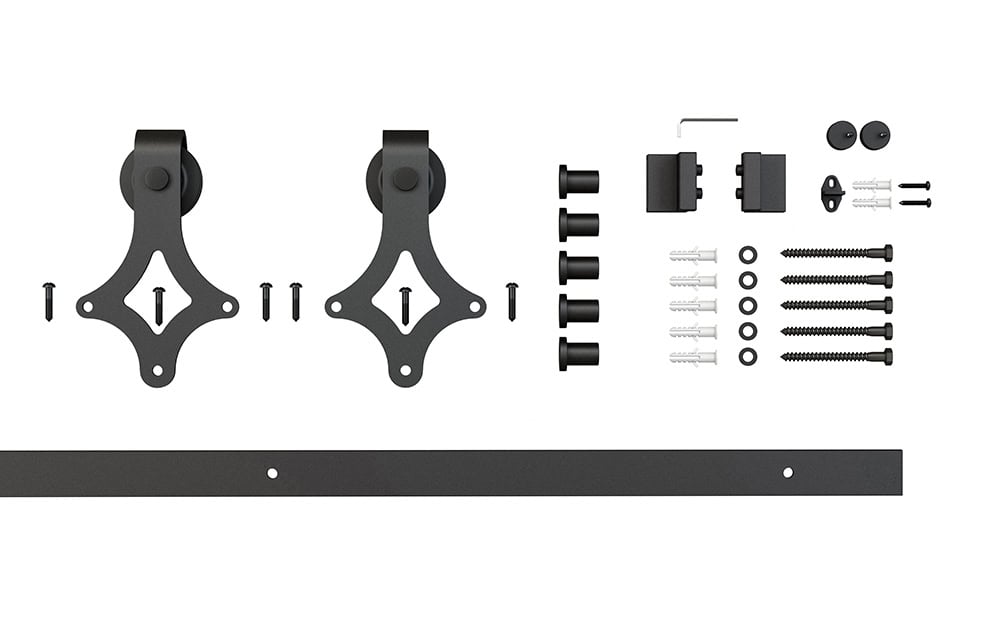

Part assembly

Part assembly

Part assembly

Product Package

Packing Method Components into boxes and a complete set into a carton, around 55sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040x180x80mm
QTY/Pallet 55sets/PLT
Pallet Size 213x102x106cm
Loading QTY 550sets for 1x20GP;1320sets for 1x40HQ
