Top Mounting Stainless Steel Glide Barn Door Hardware

Model NO.: YMXT-YG06
Ref.NO.: 150101-0177
Brief Descritpion: Stainless steel top mounting sliding door system
Position: For interior door use
Application: Residential
Main Material: Stainless steel
Surface Finish: Brushed stainless steel
Rail Length: 2000mm(78-3/4inch),or to be customized
Max Loading: 120kg(264LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 30mm(1-3/16inch) to 55mm(2-11/64inch)
Features: Soft closing function could be optional

Details

More Introduction

The top mounting stainless steel sliding door system makes it needless to drill any holes in the wooden door, and it’s quite flexible to work with a range of door thicknesses. The stainless steel sliding track hardware system features a stylish and modern design for hanging sliding glass or wood doors. It is a perfect solution for where space is at a premium and aesthetics are important such as offices, hotel rooms, laundry rooms, closets, bathrooms, and multifamily units. The stainless steel hanges glide along on nylon wheels and smooth and quiet operation makes it appropriate for shared spaces. Each hanger is equipped with an anti-rise pin to ensure the door can not be lifted off the track. It meets the performance requirement of ANSI/BHMA 156.14.

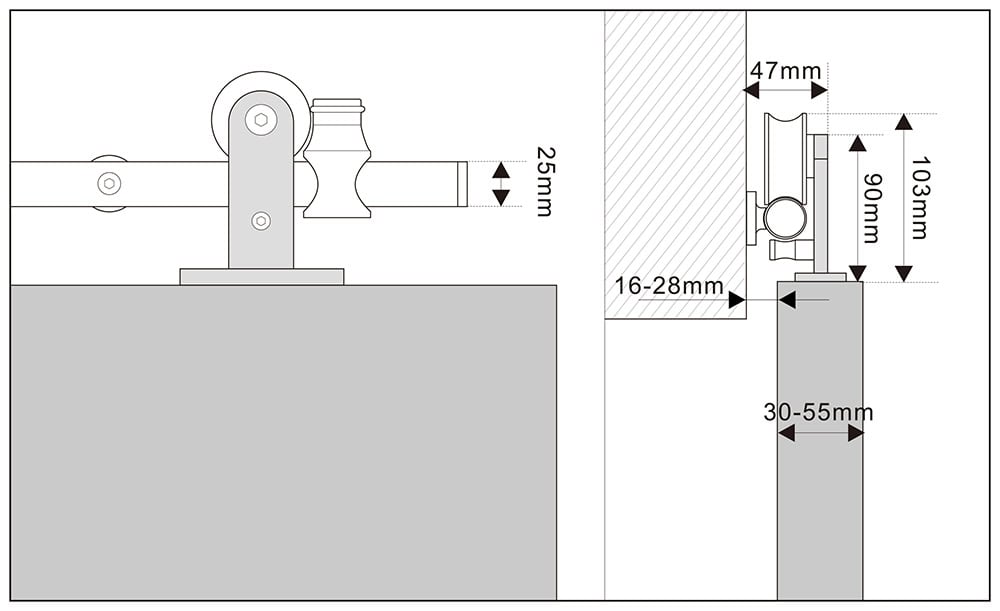

Dimension

Dimension

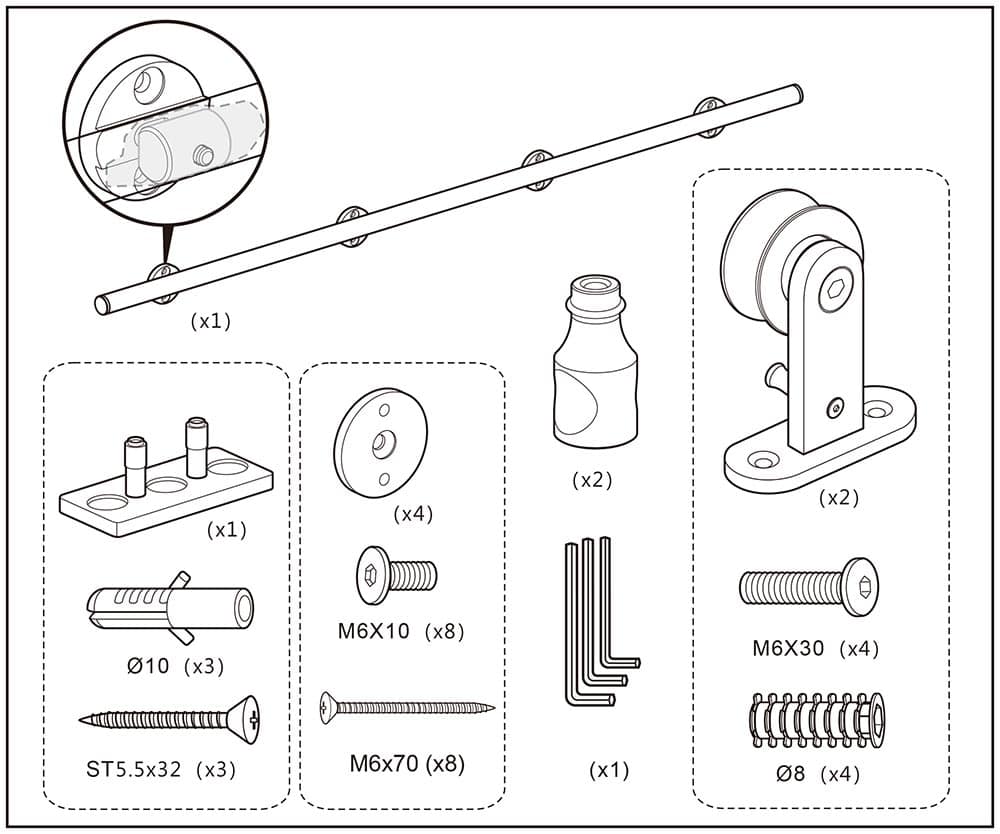

 Part assembly

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 78 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040*145*70 mm
QTY/Pallet 78/PLT
Pallet Size 2120*930*107mm
Loading QTY 936sets/20GP, 1872sets/40GP
