Sliding Wooden Door System with Natural MDF Cover
Model NO.: | YMXT-XC15 |
Ref.NO.: | 150305-0268 |
Brief Description: | Low price sliding wooden door system with Natural MDF cover |
Position: | For interior door use |
Application: | Residential |
Main Material: | Aluminum, MDF |
Surface Finish: | Anodization aluminum and natural MDF |
Cover profile Size: | 90*9mm |
Rail Length: | 2000mm(78-3/4inch),or to be customized |
Max Loading: | 60kg(176LBS) |
Working Cycles: | 30000cycles |
For Door Type: | Wooden doors, Metal frame doors |
For Door Thickness: | 35mm(1-3/8inch) to 45mm(1-3/4inch) |
Soft Closing: | Optional |
Features: | The MDF cover and MDF caps need to be painted or stained by the end users to match the door panel and the furniture |
Others: | FSC is available. |
Details
More Introduction
It’s a hot seller in the European market. The MDF cover and MDF caps make the sliding system quite feasible to match different door finish. With the soft closing, the sliding closing will be quite gentle. Furthermore, the installation of the covers to the rails is an ingenious design, there are the connection parts, they are screwed connection with the MDF cover and then they clip into the rail.

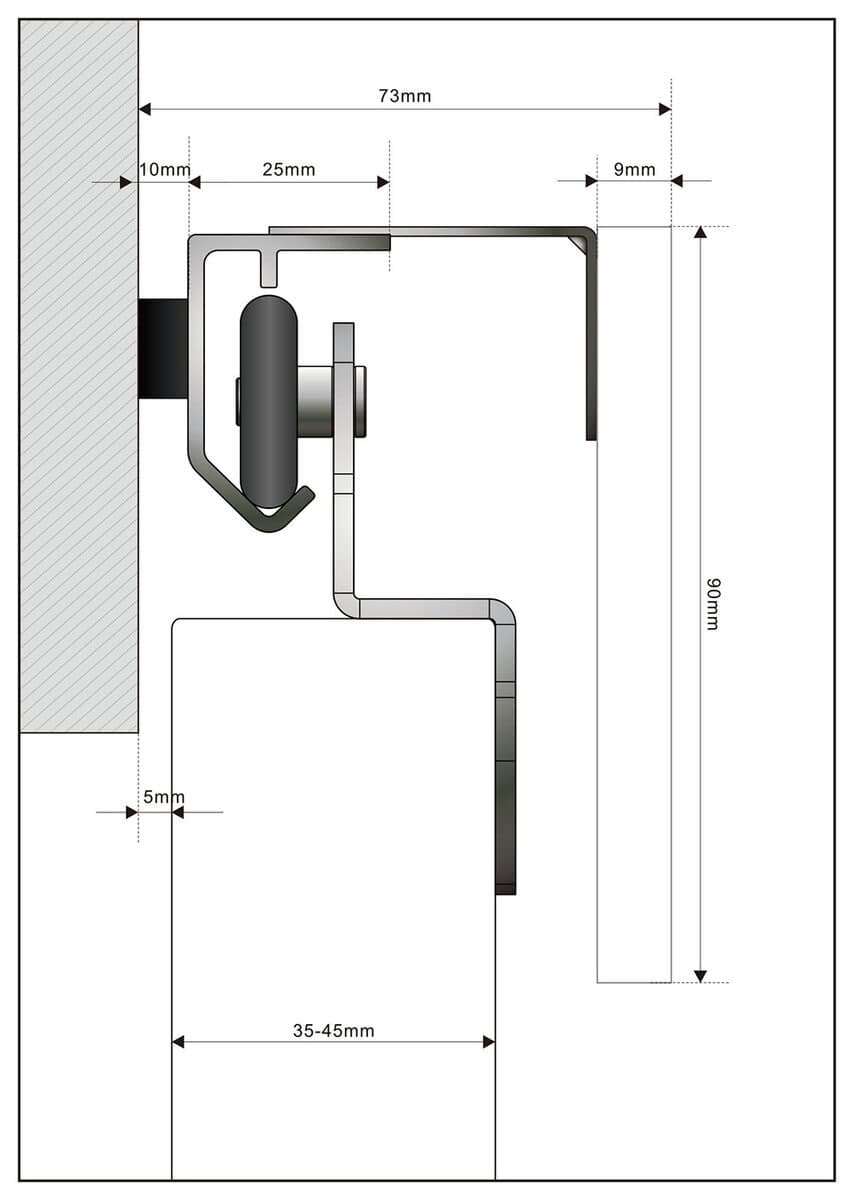

Dimension

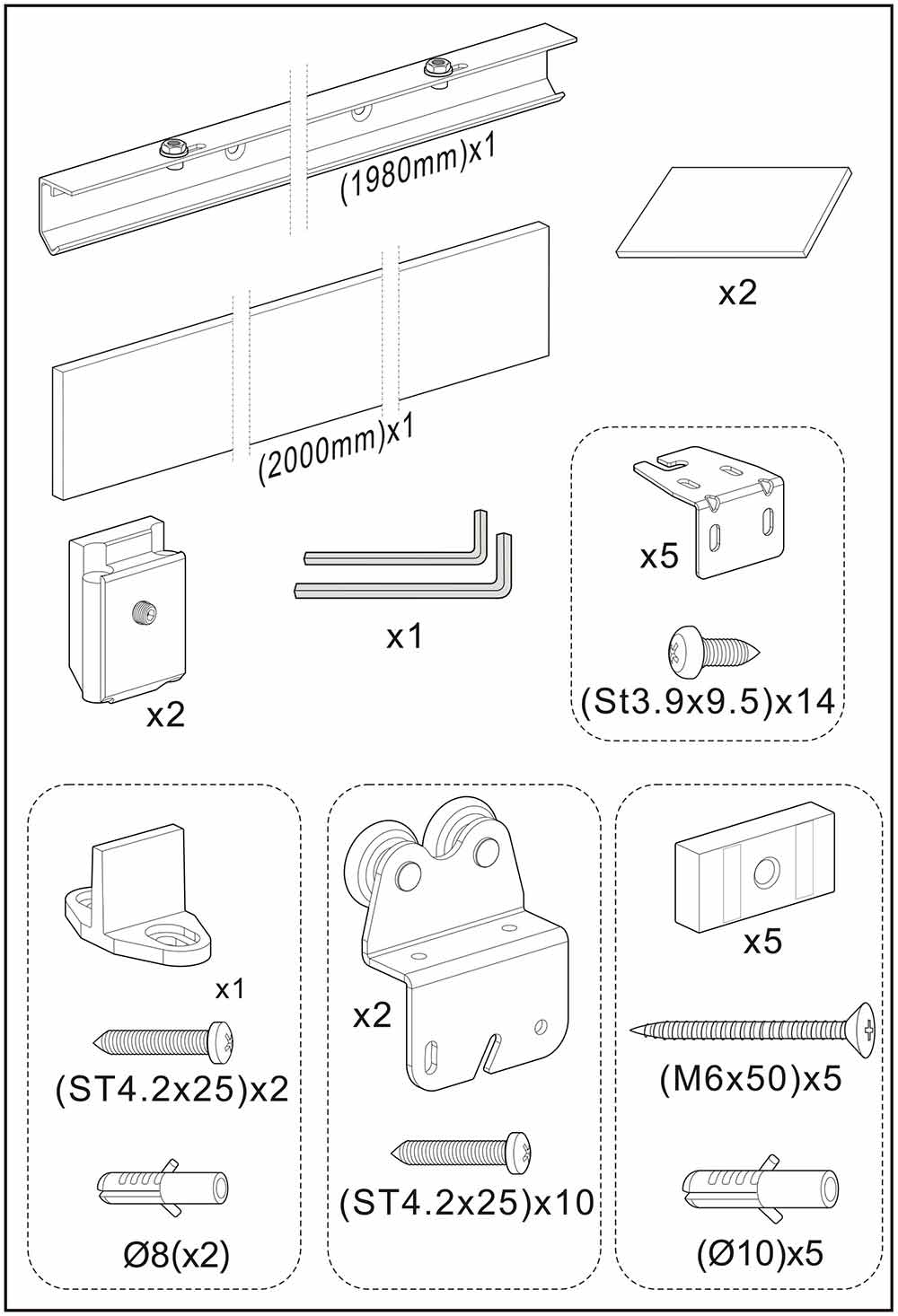

Part assembly
Product Package
Packing Method | Components into boxes and a complete set into a carton, around 104 cartons into a wooden crate. |
Sales Unit Packing Type | Carton |
Sales Unit Packing Size | 2040*135*75mm |
QTY/Pallet | 104/PLT |
Pallet size | 2120*1140*1120mm |
Loading QTY | 1040sets/20GP, 2400/40GP |
