Interior Sliding Barn Door Hardware, U Shape, Double Wheel Roller

Discover our U shape double wheel interior sliding barn door hardware, expertly designed for residential and commercial applications, offering a seamless blend of style, functionality, and durability that complements various decor styles such as rustic, industrial, nordic, and modern.


Model NO.: YMXT-BG06(TSQ06 BYPASS bracket)
Ref.NO.: 150203-0814
Brief Descritpion: U shape double-wheel-roller sliding barn door system
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating

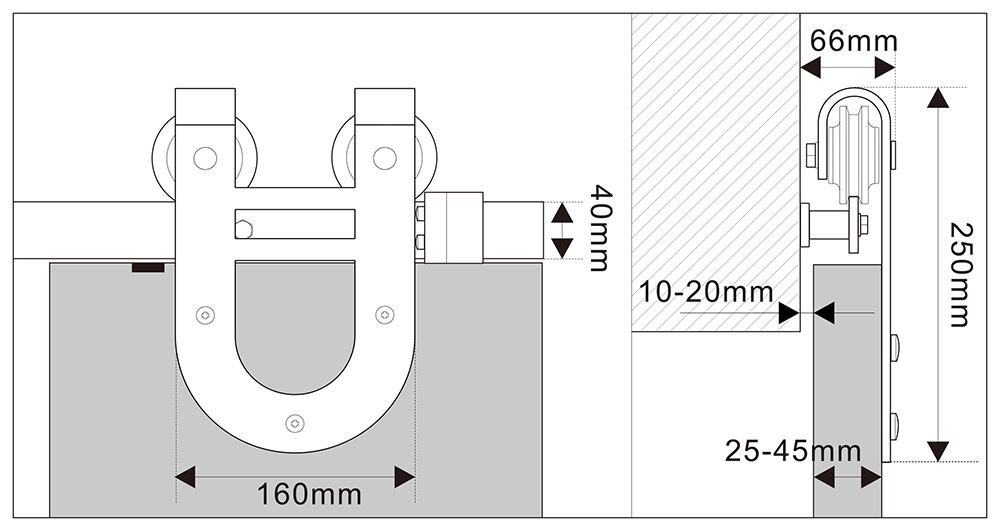

Rail Profile Size: 40x6mm
Rail Length: 1830mm(72inch),2000mm(78-3/4inch),2134mm(84inch),2438mm(96inch)
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional


Once limited to farm warehouse doors, barn doors have been adapted for stylish and functional interior use.

This interior sliding barn door hardware is constructed from premium carbon steel and delivers long-lasting strength and performance. And its elegant black powder coating lends an air of sophistication to any space.

With a rail profile measuring 40x6mm, our versatile interior sliding barn door hardware accommodates a range of rail lengths, making it suitable for various door sizes.

Compatible with wooden doors and metal frame doors, it supports door thicknesses from 25mm (1 inch) to 45mm (1-3/4 inches).

In addition, this sliding barn door hardware features double wheel design for each roller, which bolsters its overall strength and durability.

Boasting a remarkable maximum load capacity of 100kg (220lbs) and up to 100,000 working cycles, it promises enduring performance. Also, the optional soft closing function ensures a smooth and quiet operation.

Overall, elevate your wholesale offerings with our dependable and fashionable interior sliding barn door hardware designed to meet the requirements of contemporary living and working environments.

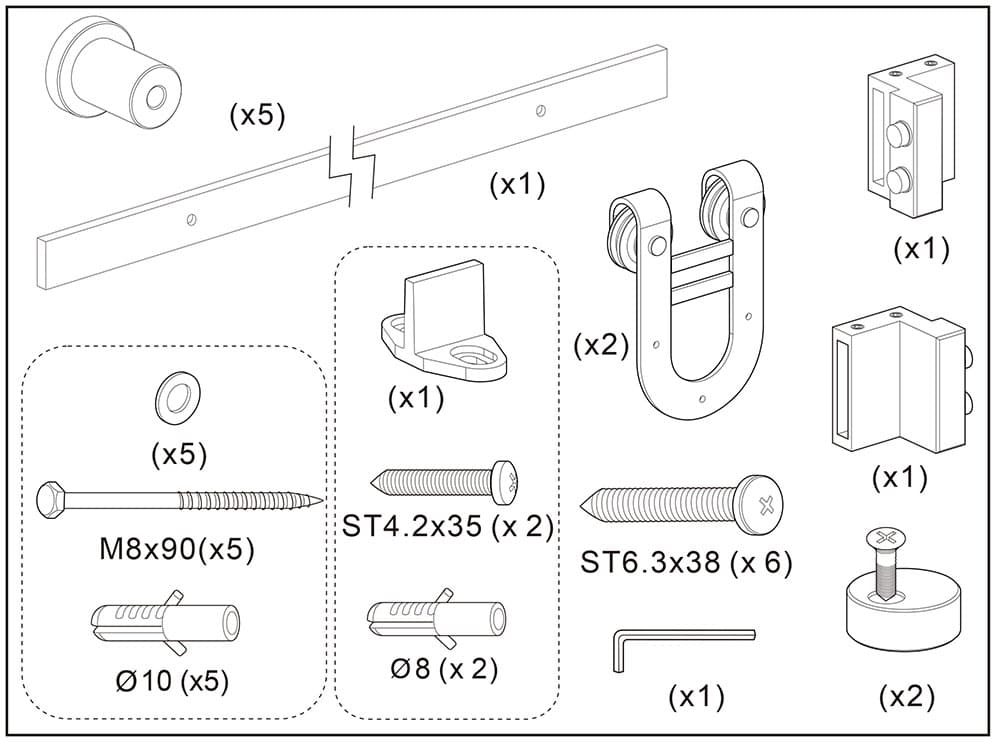

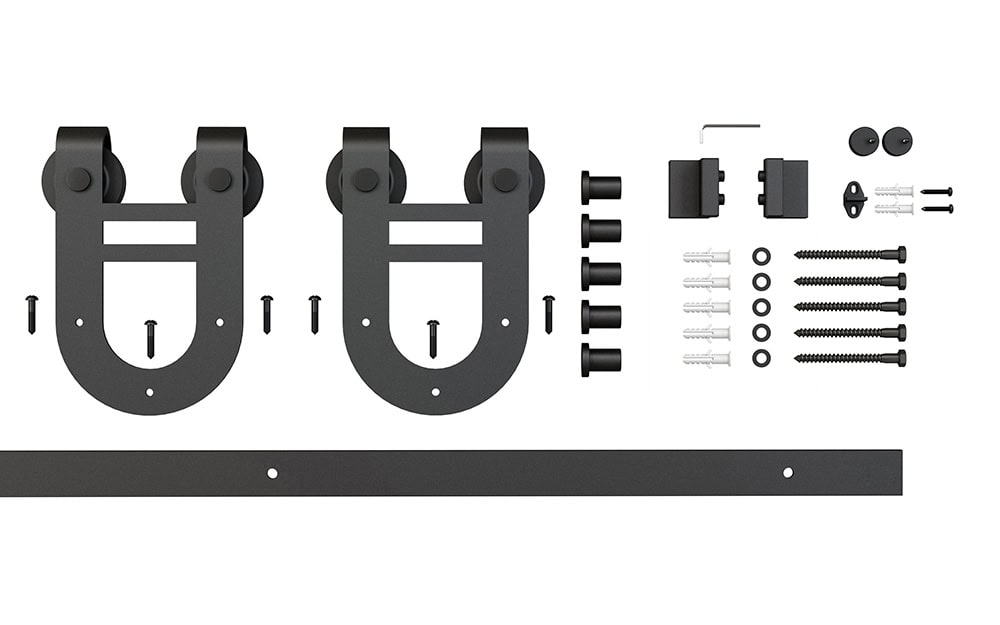

Part assembly

Part assembly

Part assembly

Product Package

Packing Method Components into boxes and a complete set into a carton, around 60sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2030*240*85mm
QTY/Pallet 44sets/PLT
Pallet Size 213x102x110cm
Loading QTY 440sets for 1x20GP;968sets for 1x40HQ
