Top Mount Sliding Door Hardware

Presenting our top mount sliding door hardware, perfectly suited for residential and commercial interior door applications, combines style and functionality.

Model NO.: YMXT-BG05
Ref.NO.: 150204-0012
Brief Descritpion: Top mounting sliding barn door hardware
Position: For interior door use
Application: Both residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating

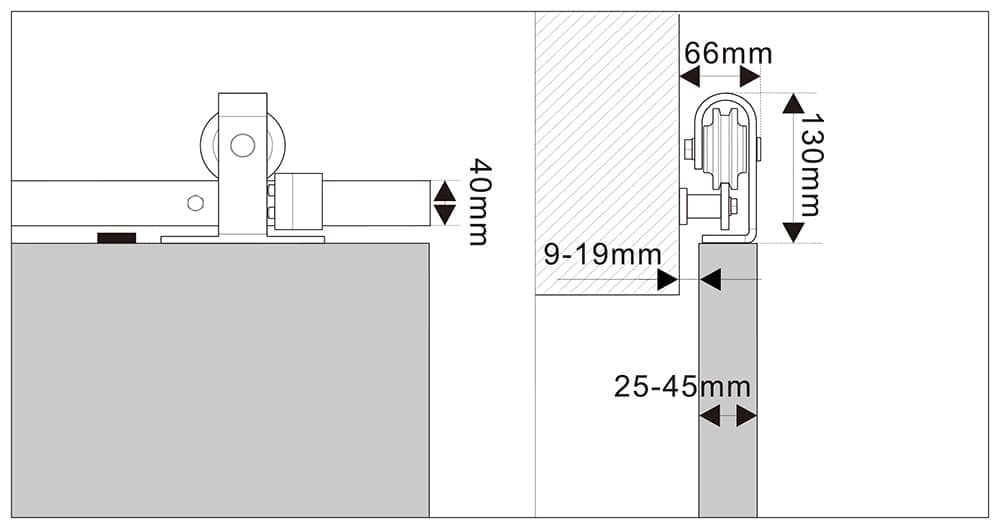

Rail Profile Size: 40x6mm
Rail Length: 1830mm(72inch) or to be customized
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, metal frame doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional


Barn doors have emerged as a popular trend in interior design, infusing spaces with rustic charm, warmth, and depth, even in the most modern settings.

Constructed from robust carbon steel, this top mounting sliding door hardware features a black powder-coated surface finish, offering durability and a sleek, contemporary aesthetic.

Its rail profile size measures 40x6mm, and the rail length can be customized, starting at 1830mm (72 inches) to accommodate various door dimensions.

Designed for compatibility with wooden doors and metal frame doors, our top mounting sliding door hardware supports door thicknesses ranging from 25mm (1 inch) to 45mm (1-3/4 inches).

And with a maximum loading capacity of 100kg (220lbs) and an impressive working cycle count of 100,000, it provides a reliable, long-lasting solution for you.

Additionally, optional soft closing functionality enhances your comfort and convenience, ensuring smooth and quiet door operation.

Hence, elevate your wholesale inventory with this top mounting sliding door hardware, meeting diverse needs.

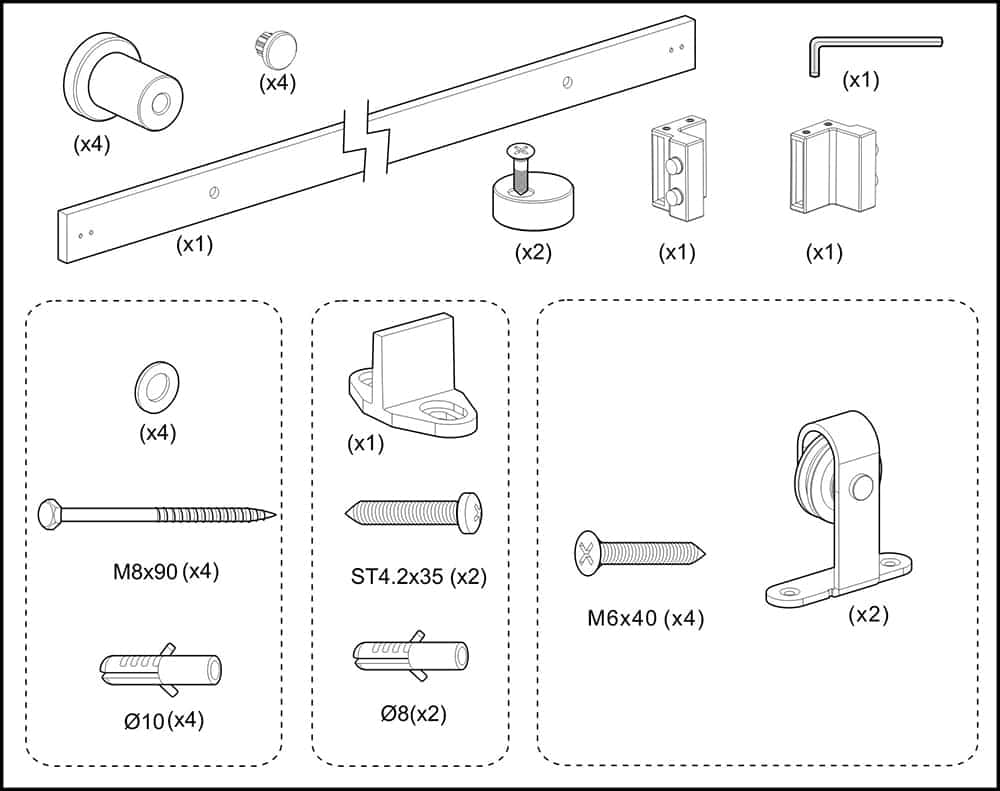

Part assembly

Part assembly

Part assembly

Product Package

Packing Method Each set with EPE is protected into a Blister packaging, then into a Carton as a sales unit, and 45 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1880x190x90mm
QTY/Pallet 45sets/PLT
Pallet Size 195x104x98cm
Loading QTY 450sets for 1x20GP;990sets for 1x40GP
