Horseshoe Barn Door Hardware

Model NO.: YMXT-BG24
Ref.NO.: Ref 150204-1246
Brief Descritpion: Horseshoe barn door hardware
Position: For interior door use
Application: Both residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile Size: 40x6mm
Rail Length: 2000mm(78-3/4inch)
Max Loading: 100 kg(220 LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional

Details

More Introduction

This is a quite typical style of barn door hardware. The big wheel sliding roller meets many customers’ aesthetic preferences. The barn door was originally used as a warehouse door on the farm. It was later incorporated into interior use with an improved design. Because the sliding barn doors are perfect for a variety of decor styles, such as rustic style, Industrial style, Nordic, modern style, etc., it becomes a choice for more and more households globally.

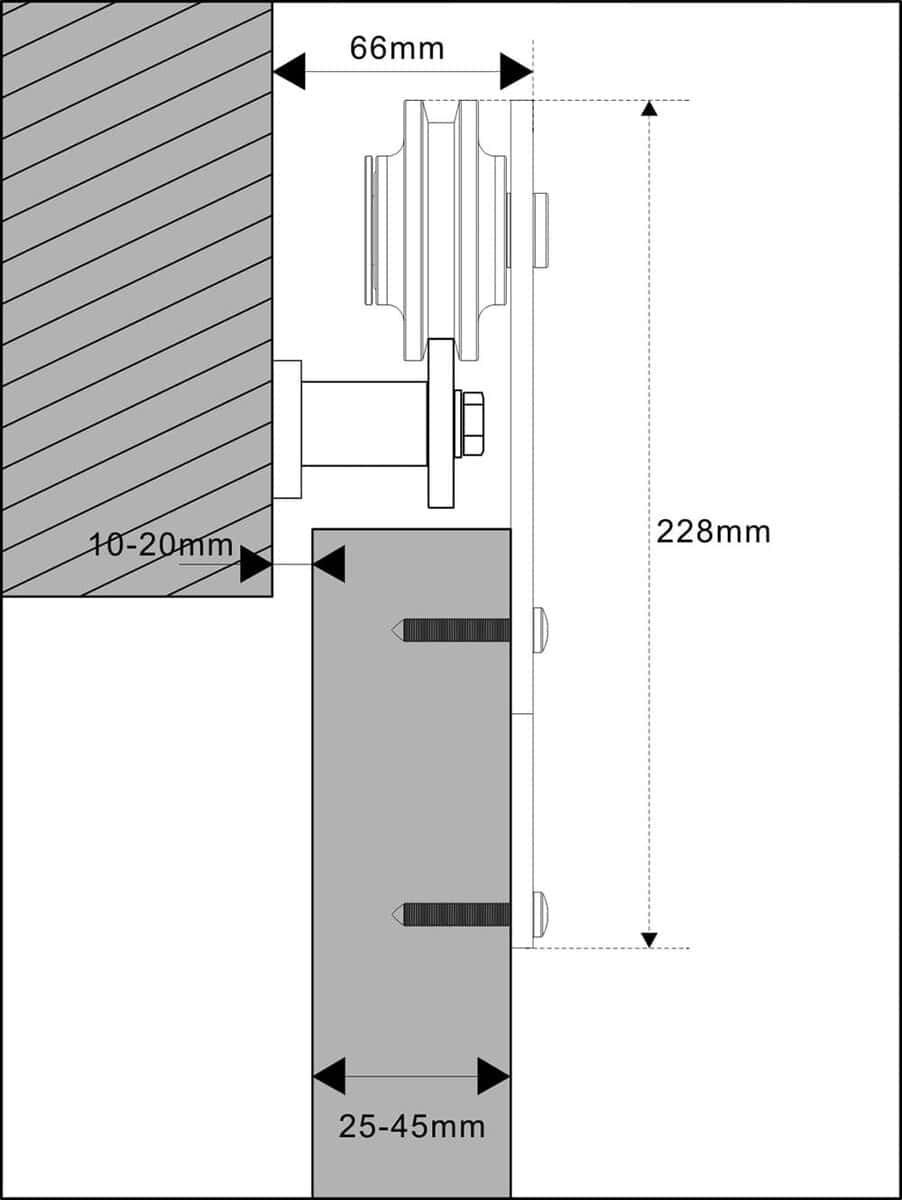

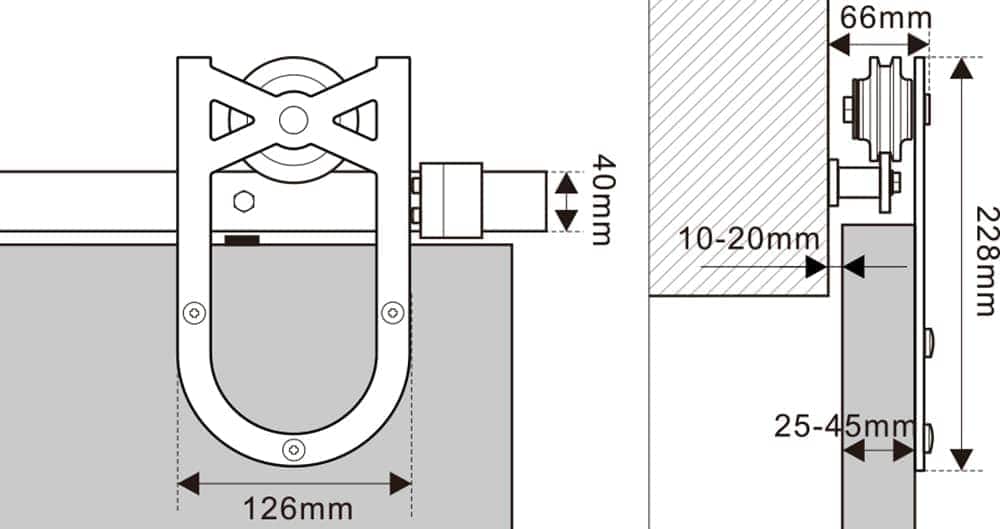

Dimension

Dimension

Dimension

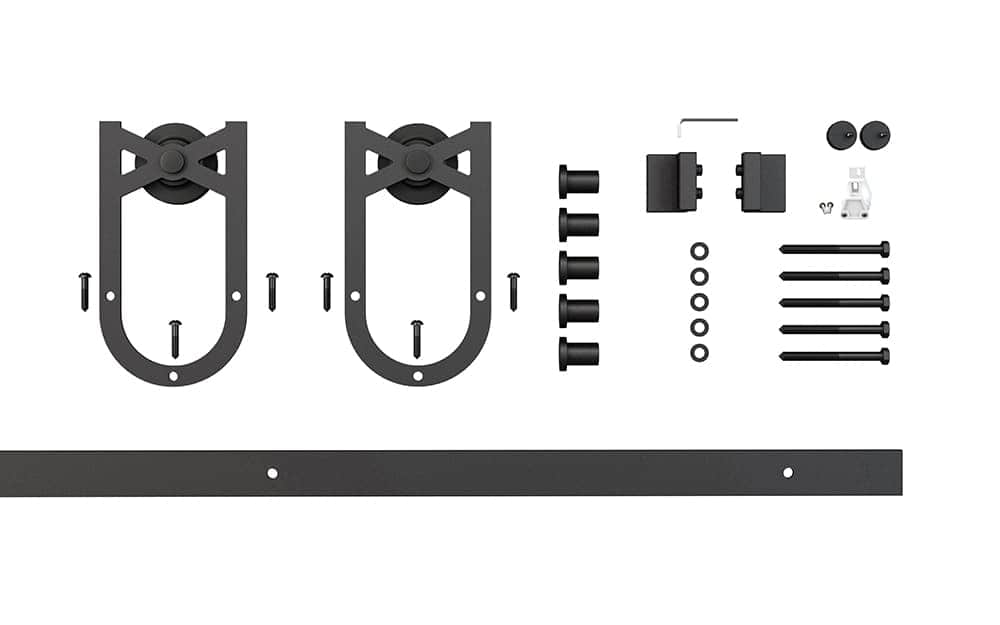

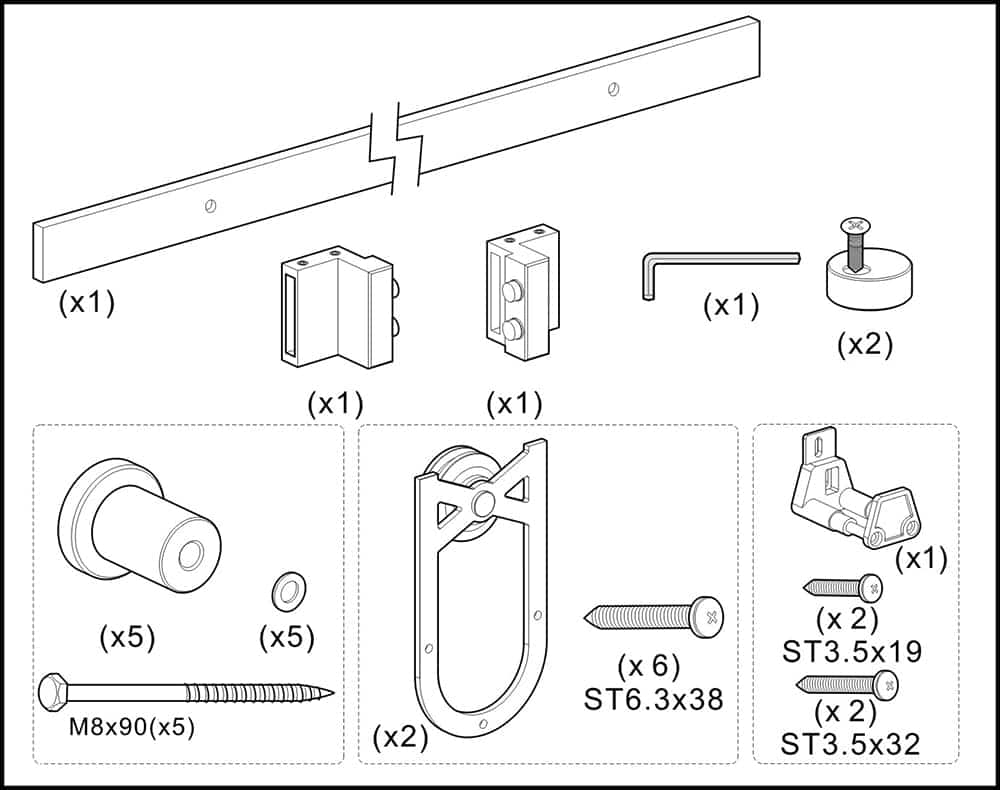

Part assembly

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 48 or 66 sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040x160x80mm
QTY/Pallet 48 or 66 sets/PLT
Pallet Size 213x111x107cm or 213x111x82cm
Loading QTY 660sets for 1x20GP;1440 sets for 1x40HQ
