Residential Barn Door Hardware, Hanging Style

Our wholesale hanging style sliding stall residential barn door hardware is a premium solution for residential and commercial interior door applications.

Model NO.: TSQ04
Ref.NO.: 150204-0911
Brief Description: Hanging style sliding door system
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile size: 40x6mm
Rail Length: 1830mm(72inch), 2000mm(78-3/4inch), 2134mm(84inch), 2438mm(96inch)
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional


This residential barn door hardware is crafted from high-quality carbon steel with a sleek black powder coating, creating a stunning and durable finish.

Its rail profile size measures 40x6mm, while the rail length is available in a variety of options, including 1830mm (72 inches), 2000mm (78-3/4 inches), 2134mm (84 inches), and 2438mm (96 inches).

With a maximum loading capacity of 100kg (220 lbs) and designed for 100,000 working cycles, the residential barn door hardware ensures long-lasting performance and reliability.

It is compatible with wooden doors and metal frame doors with a thickness ranging from 25mm (1 inch) to 45mm (1-3/4 inches), offering flexibility for various installations. Also, the optional soft-closing feature provides a smooth and controlled closing motion, enhancing your overall experience.

Moreover, originally utilized as warehouse doors on farms, barn doors have since been incorporated into interior design, becoming increasingly popular among households worldwide. This is due to their ability to effortlessly blend with various decor styles, including rustic, industrial, Nordic, and modern aesthetics.

Consequently, elevate your wholesale inventory with our residential barn door hardware, a versatile and stylish option for you seeking a practical and attractive interior door solution.

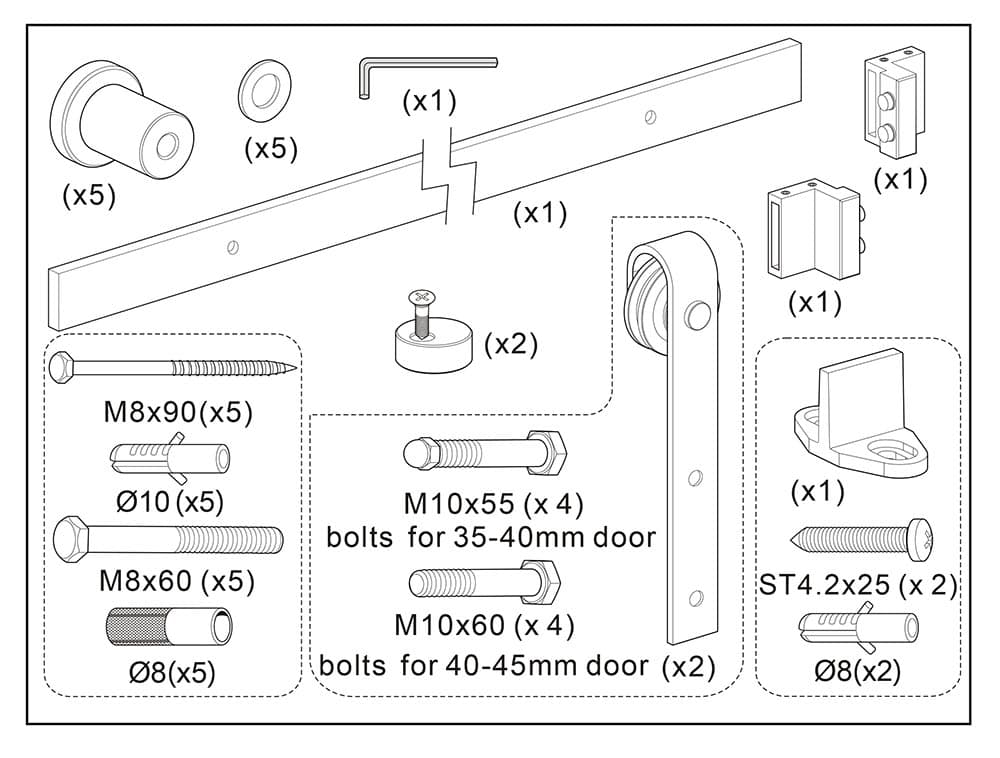

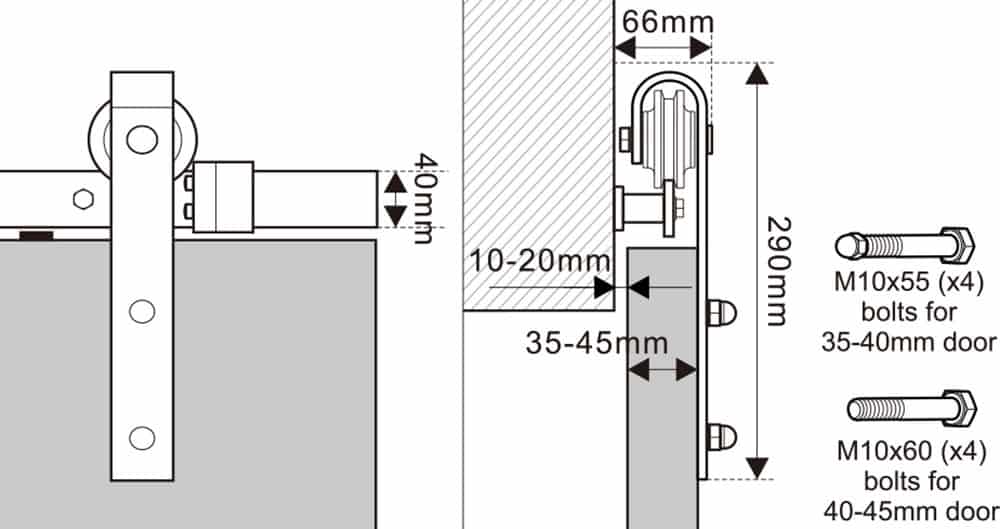

Part assembly

Part assembly

Product Package

Packing Method Components into boxes and a complete set into a carton, around 88sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040x135x80mm
QTY/Pallet 88sets/PLT
Pallet size 213x111x106cm
Loading QTY 880sets for 1x20GP; 1920sets for 1x40HQ
