150204-1260 Barn Door Hardware Low-price Steel Sheet Version

Model NO.: YMXT-YX01
Ref.NO.: 150204-1260
Brief Descritpion: Barn door hardware low-price steel sheet version
Position: For interior door use
Application: Residential
Main Material: Steel
Surface Finish: Black powder coating
Rail Length: 2000mm
Max Loading: 40kg(88LBS)
Working Cycles: 50000cycles
For track Type: Flat tracks
For Door Thickness: 35-40mm
Soft Closing: Optional

Details

More Introduction

This is the low-price barn door hardware. Unlike the main material of a solid bar with a profile size of 40x6mm for normal barn door hardware, this version is mainly based on steel sheet with a thickness of 1.2mm, you can enjoy the favorite price if your door is less than 40kg, door thickness 35-40mm.

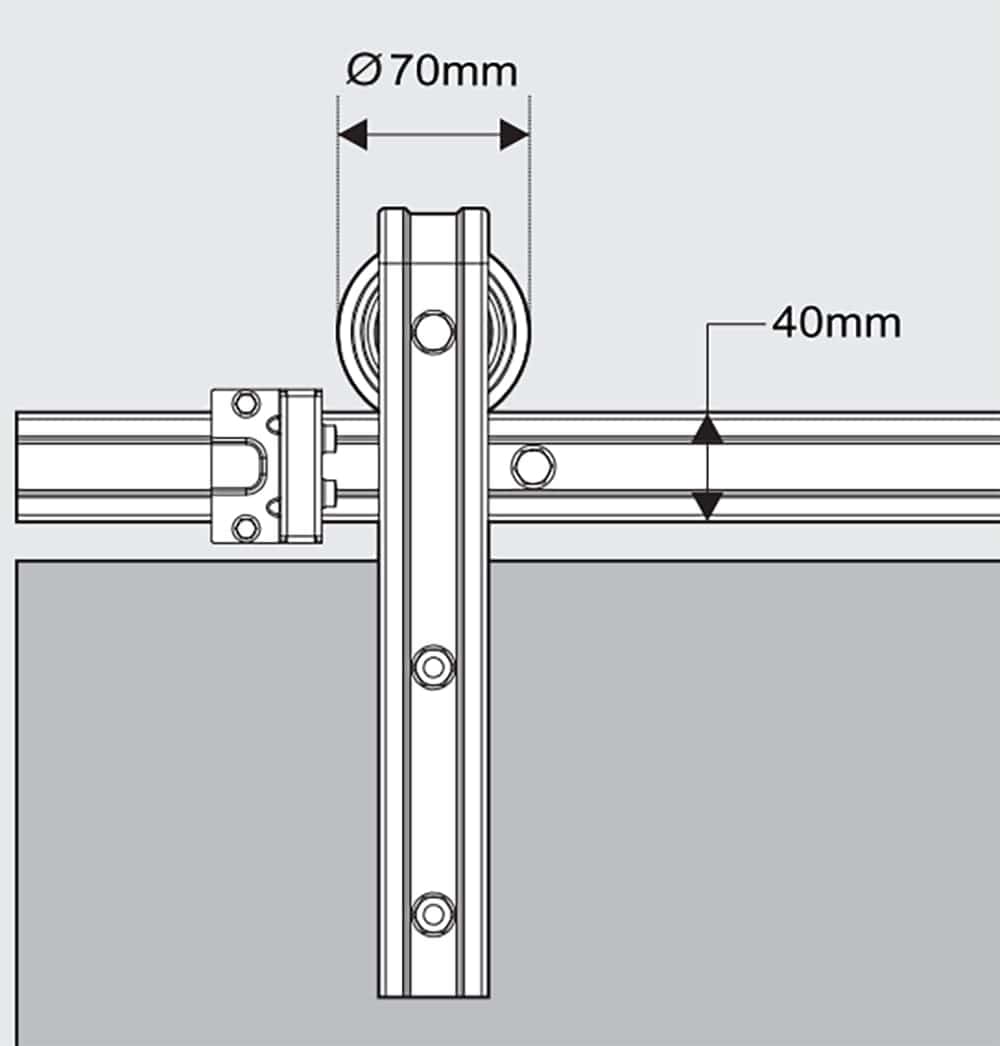

Dimension

Dimension

Dimension


Product Package

Packing Method Components into boxes and a complete set into a carton
Sales Unit Packing Type Carton
Sales Unit Packing Size 1080*195*85mm
QTY/Pallet 110pcs/carton
Pallet Size 2250*1080*1070mm
Loading QTY 1100pcs/20GP,2420pcs/40GP
