Natural MDF Cover Sliding Wooden Door System

Model NO.: YMXT-XC06
Ref.NO.: 150305-0132
Brief Description: Natural MDF cover sliding wooden door system
Position: For interior door use
Application: Residential
Main Material: Aluminum, MDF
Surface Finish: Anodization aluminum and natural MDF
Cover profile Size: 90*12mm
Rail Length: 2000mm(78-3/4inch),or to be customized
Max Loading: 60kg(176LBS)
Working Cycles: 30000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 35mm(1-3/8inch) to 45mm(1-3/4inch)
Soft Closing: Optional
Features: The MDF cover and MDF caps need to be painted or stained by the end users to match the door panel and the furniture
Others: FSC is available.

Details

More Introduction

It’s a hot seller in the European market. The MDF cover and MDF caps make the sliding system quite feasible to match different door finish. With the soft closing, the sliding closing will be quite gentle. Furthermore, the installation of the covers to the rails is an ingenious design, there are the connection parts, they are screwed connection with the MDF cover and then they clip into the rail.

Dimension

Dimension

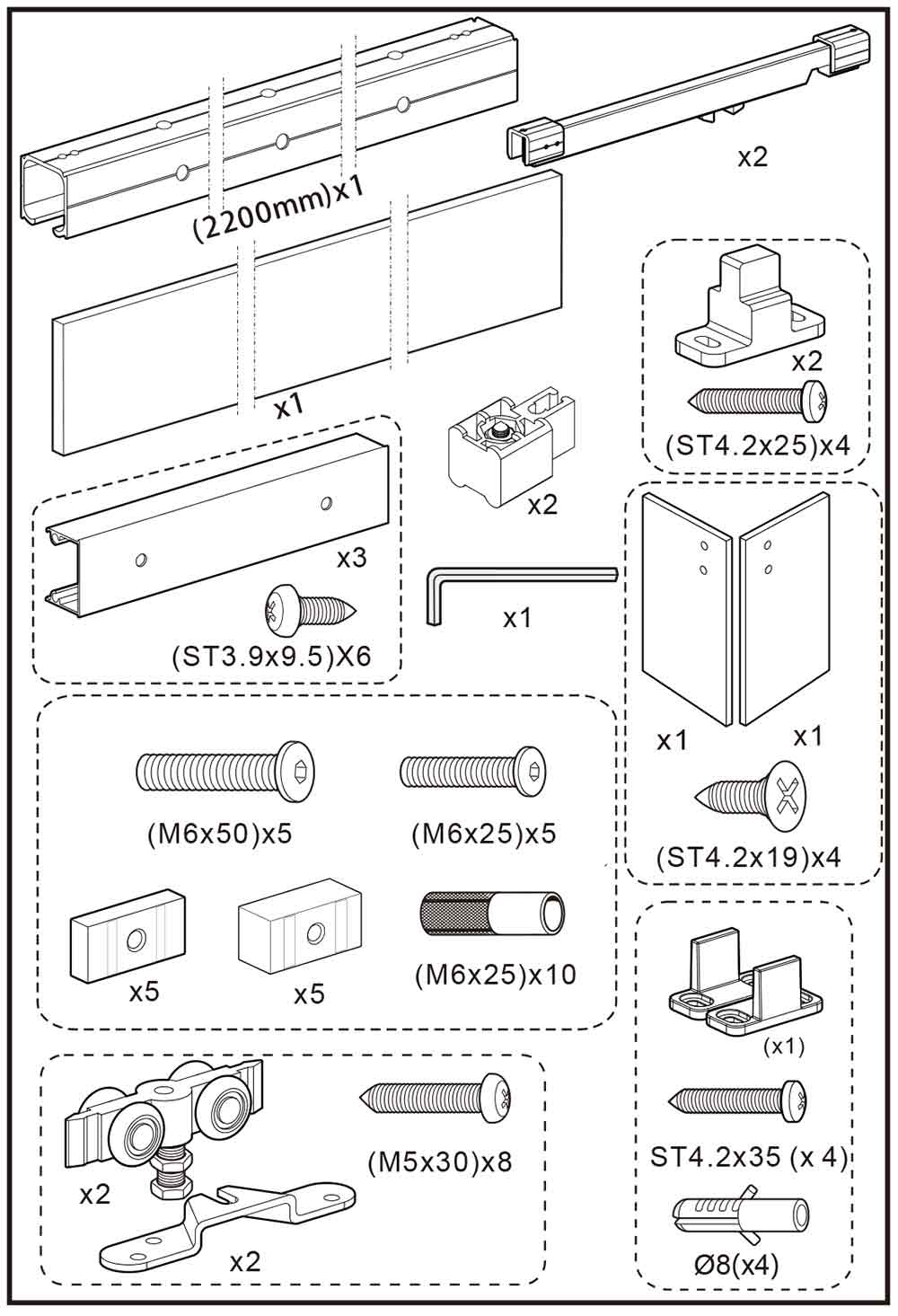

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 104 cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040*135*75mm
QTY/Pallet 104/PLT
Pallet Size 2120*1140*1120mm
Loading QTY 1040sets/20GP, 2400/40GP
