Tempered Glass Shower Door, Frameless, Modern Bypass Sliding Style

Model NO.: LYF-LHJ01
Ref. NO.: 150402-0046&159900-6605
Brief Description: Modern Bypass Frameless Tempered Glass Shower Room Sliding Glass Doors
Position: For Bathroom use
Opening Style: Sliding opening
Application: Both Residential and commercial use
Main Material: Stainless steel SS304, Aluminium polished, Tempered glass
Surface Finish: Polished stainless steel, clear glass
Shower size: L=1524mm(60inch), H=1981m(78inch), or to be customized
Glass thickness: 10mm

Details

This bypass shower style is quite popular in North America, especially for a number of distinguished hotels like Marriot, Hilton, IHG, etc. it with aluminum alloy frame and stainless hardware are highly rust resistant and will never tarnish, it can be installed on either left or right side。

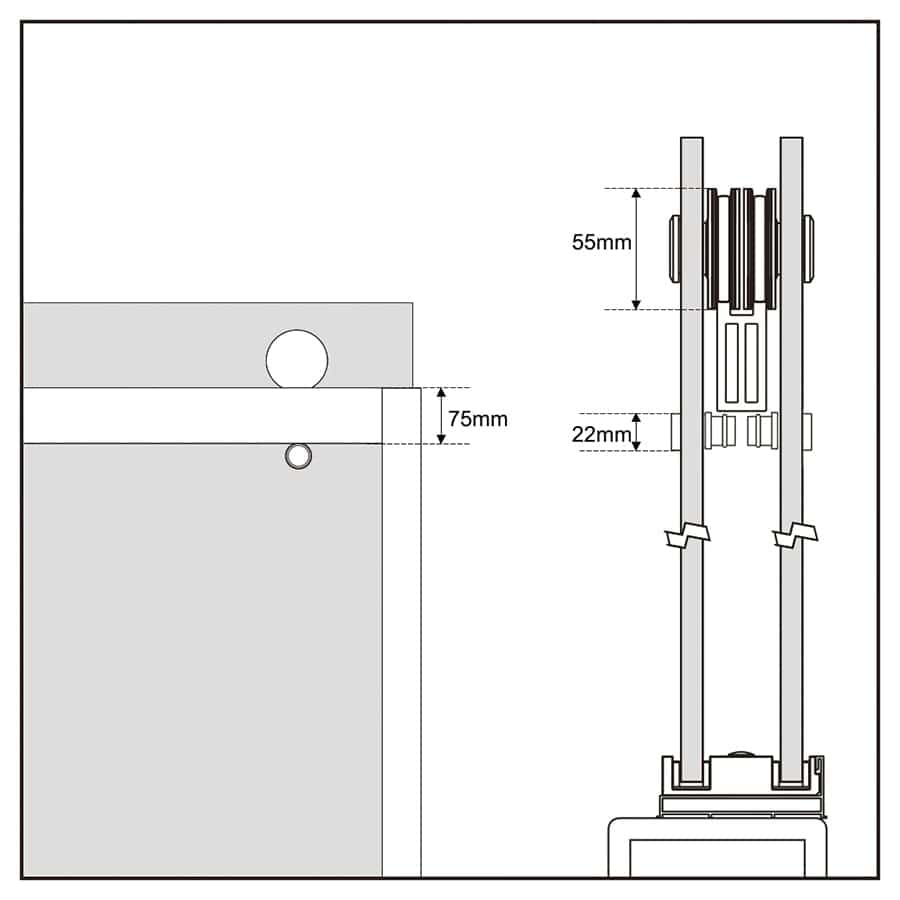

Technical drawing of a Tempered Glass Shower Door, Frameless, Modern Bypass Sliding Style with side and front views, showing detailed measurements such as 55mm, 75mm, and 22mm.

Dimension

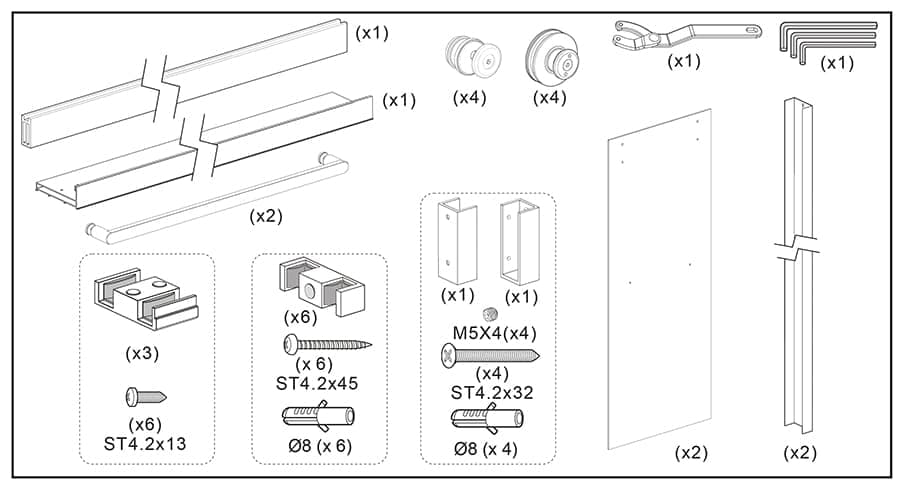

Illustration of various unassembled furniture parts including screws, panels, and tempered glass shower door fittings with quantity labels.

Part assembly


Product Package

Packing Method 2pcs glass will be into a carton, and hardware will be into a carton 12cartons hardware and glass into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size of glass 1985*790*35mm
Sales Unit Packing Size of hardware 1940*180*85 mm
Pallet Size
2035*840*940mm
QTY/PLT 12sets
Loading QTY 168sets for 1x20GP
