A modern sliding barn door with Flat Track Sliding Door Hardware, 35mm×5mm mounted on a beige wall.

Various unassembled Flat Track Sliding Door Hardware, 35mm×5mm parts laid out on a white background, including rails, rollers, screws, and brackets.

Flat Track Sliding Door Hardware, 35mm×5mm

Presenting this flat track sliding door hardware, designed for interior use, is suitable for residential and commercial applications.

Model NO.:	YMXT-BG17
Ref.NO.:	150204-1215
Brief Descritpion:	Flat track profile size 35×5 in Two-piece Barn Door Kit
Position:	Interior
Application:	Both Residential and commercial use
Main Material:	Carbon steel
Surface Finish:	Black powder coating
Rail Profile Size:	5X35MM
Rail Length:	1830mm(72inch) or to be customized
Max Loading:	60kg(132LBS)
Working Cycles:	50000cycles
For Door Type:	Wooden doors, Metal frame doors
For Door Thickness:	25mm(1inch) to 45mm(1-3/4inch)
Soft Closing:	Optional

Details

Made from durable carbon steel, our flat track sliding door hardware features a black powder-coated surface finish for a sleek and modern appearance.

Its rail profile size measures 5x35mm, and the rail length can be customized, starting at 1830mm (72 inches) to accommodate various door sizes.

Compatible with wooden and metal frame doors, this flat track sliding door hardware supports door thicknesses ranging from 25mm (1 inch) to 45mm (1-3/4 inches). Besides, with a maximum loading capacity of 60kg (132 lbs) and a working cycle count of 50,000, it offers an affordable yet reliable solution for your customers.

In addition, the kit provides optional soft closing functionality for an enhanced experience, ensuring smooth and quiet door operation.

And it includes all mounting hardware and components required to hang one barn door, accommodating openings of up to 36 inches.

Consequently, upgrade your wholesale inventory with our flat track sliding door hardware, meeting diverse needs.

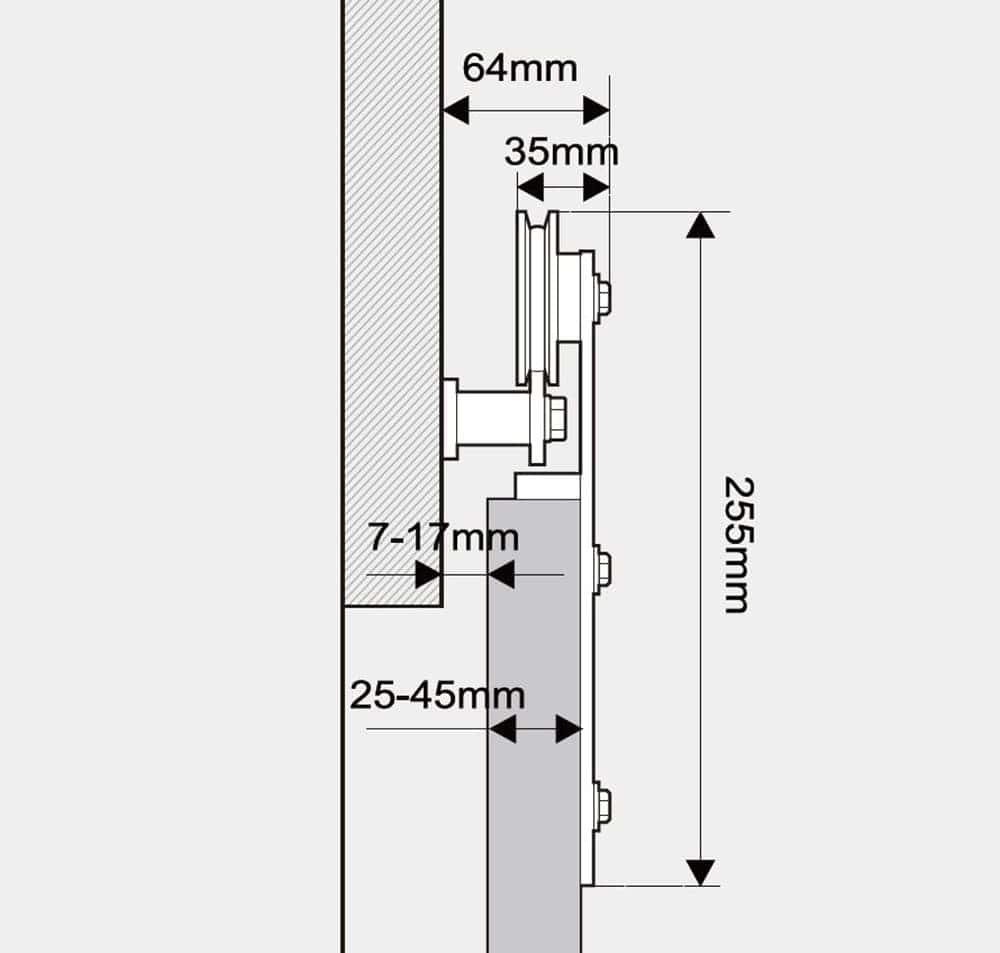

Dimension

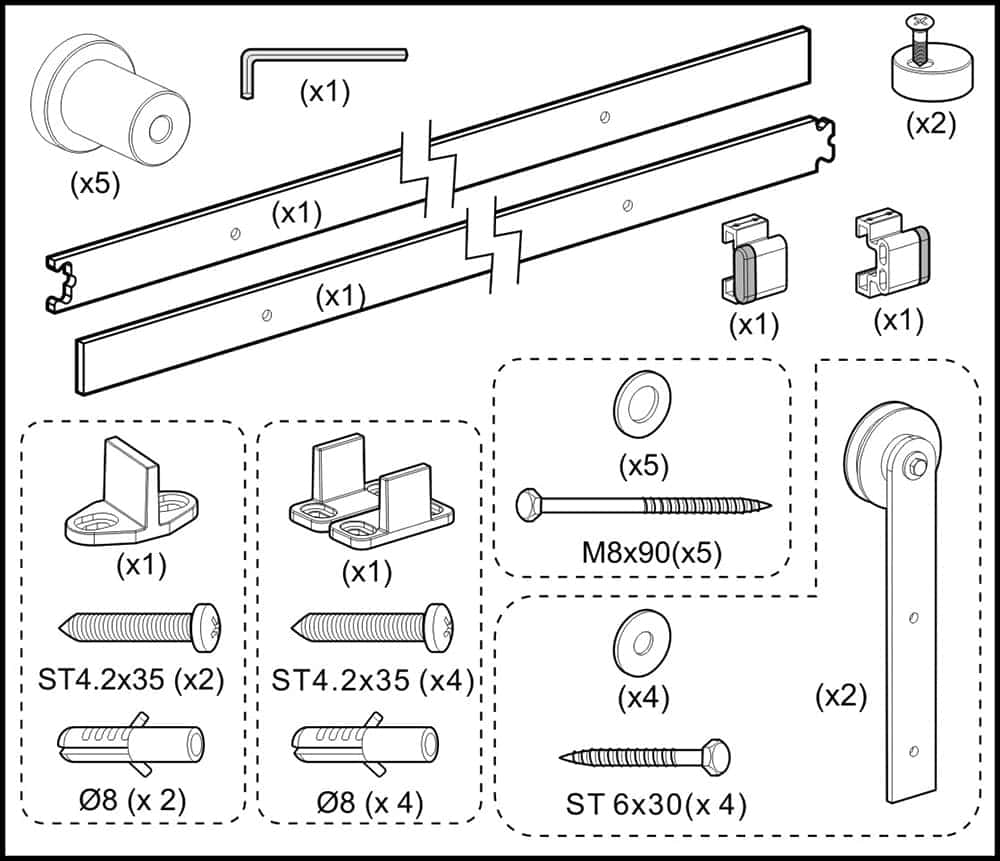

Part assembly

Product Package

Packing Method	Each set into a carton as a sales unit, 72cartons into a wooden crate.
Sales Unit Packing Type	Carton
Sales Unit Packing Size	105.5x84x80cm
QTY/Pallet	72sets/PLT
Pallet size	105.5x84x80cm
Loading QTY	2016sets for 1x20GP; 4032sets for 1x40GP
