Frameless Glass Shower Ddoor with Stainless Steel Barn Door Hardware

Model NO.: LYF-YG01(TY-6601)
Ref. NO.: 150401-0190
Brief Description: Frameless glass shower door with Stainless steel barn door hardware
Position: For interior use
Opening Style: Sliding opening
Application: Both Residential and commercial use
Main Material: Stainless steel SS304, tempered glass
Surface Finish: Brushed stainless steel, clear glass
Shower size: L=1524mm(60inch) H=1905m(75inch) or to be customized
Glass thickness: 8mm to 12mm

Details

More Introduction

This shower style is quite popular in North America. The hardwares are all made of high-grade stainless steel SS304, which make the shower sturdy and durable. Plus the frameless glass, it brings a modern aesthetic look towards the bathroom. Therefore, this shower is adopted by a number of distinguished hotels like Marriot, Hilton, IHG, etc.

Dimension

Dimension

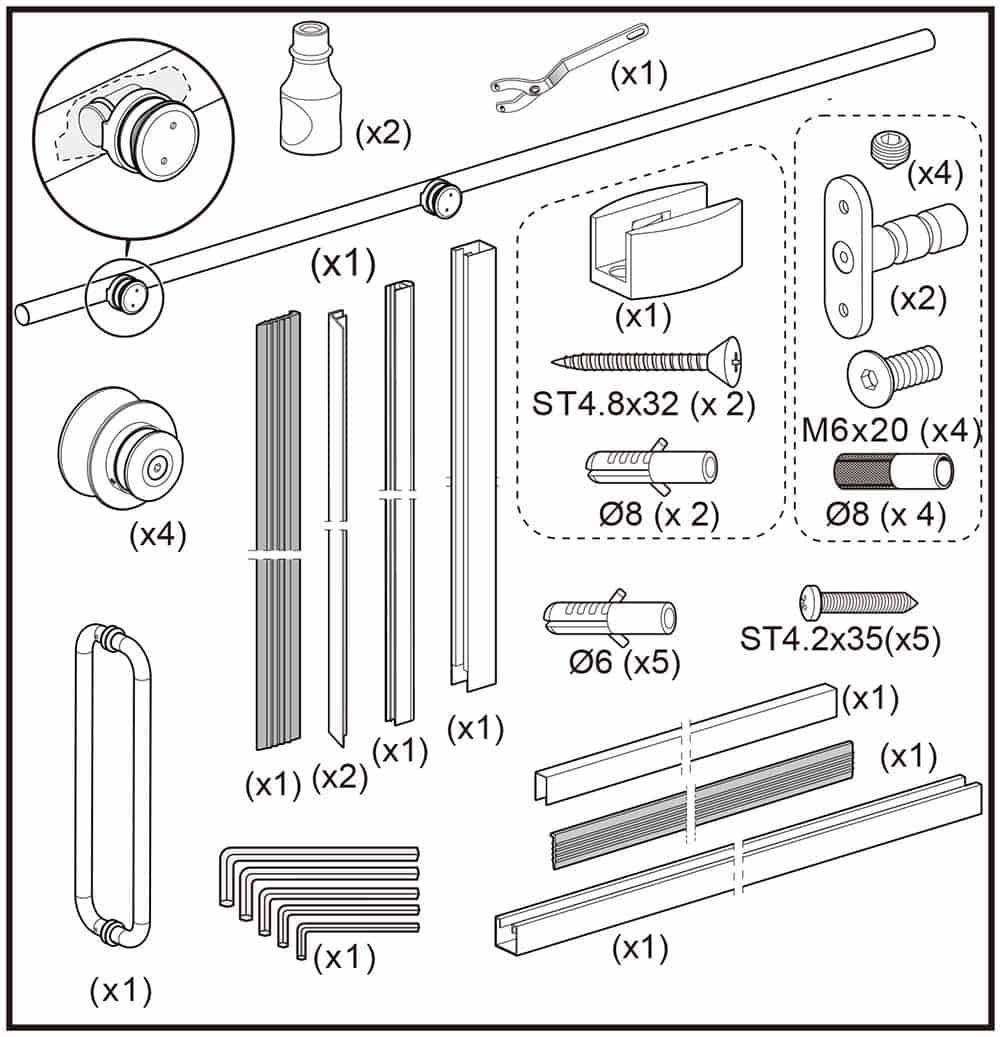

Part assembly

Part assembly


Product Package

Packing Method A full set (incl.Glass and the brackets) into a carton, with EPE or equivalent filling material inside the carton. 12cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1500*980*73mm
QTY/Pallet 12sets/CTN
Pallet size 1555*1035*1097mm
Loading QTY 168sets for 1x20GP and 336sets for 1x40GP
