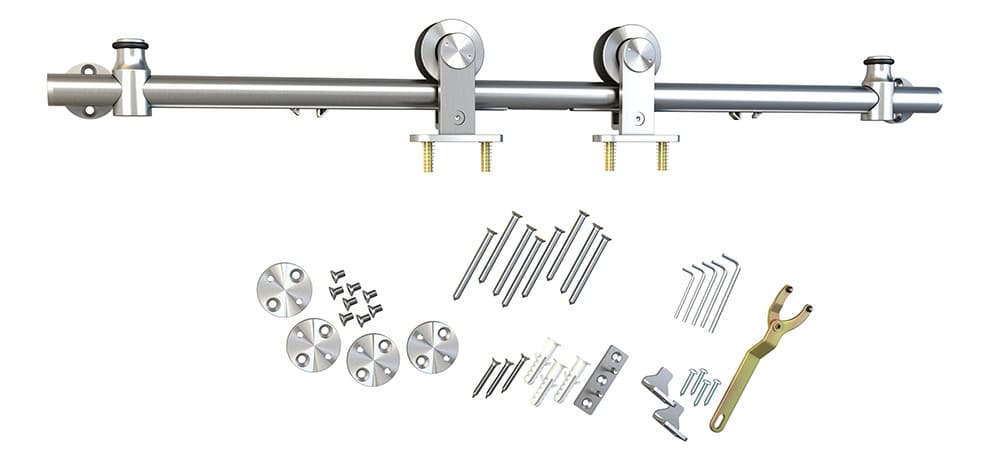

Wall Mount Architectural Sliding Round Barn Door Track Hardware

Model NO.:	YMXT-YG14
Ref.NO.:	150101-0175
Brief Descritpion:	Stainless steel top mounting sliding door system with soft closing
Position:	For interior door use
Application:	For both residential&commercial
Main Material:	Stainless steel
Surface Finish:	Brushed stainless steel
Rail Length:	2000mm(78-3/4inch),or to be customized
Max Loading:	80kg(176LBS) with soft closing
Working Cycles:	100000cycles
For Door Type:	Wooden doors
For Door Thickness:	30mm(1-3/16inch) to 55mm(2-11/64inch)
Features:	Soft closing function could be optional

Details

This round barn door track is quite suitable for commercial use. Firstly it’s durable as it’s sustainable for up to 100000working cycles with softing closing max loading of 80kg. It’s an ideal solution as a sliding door for entry into the bathroom. The top mounting stainless steel sliding door system makes it needless to drill any holes in the wooden door, and it’s quite flexible to work with a range of door thicknesses. The stainless steel sliding track hardware system features a stylish and modern design for hanging sliding glass or wood doors. It is a perfect solution for where space is at a premium and aesthetics are important such as offices, hotel rooms, laundry rooms, closets, bathrooms, and multifamily units. The stainless steel hinges glide along on nylon wheels and its smooth and quiet operation makes it appropriate for shared spaces. Each hanger is equipped with an anti-rise pin to ensure the door can not be lifted off the track. It meets the performance requirement of ANSI/BHMA 156.14.

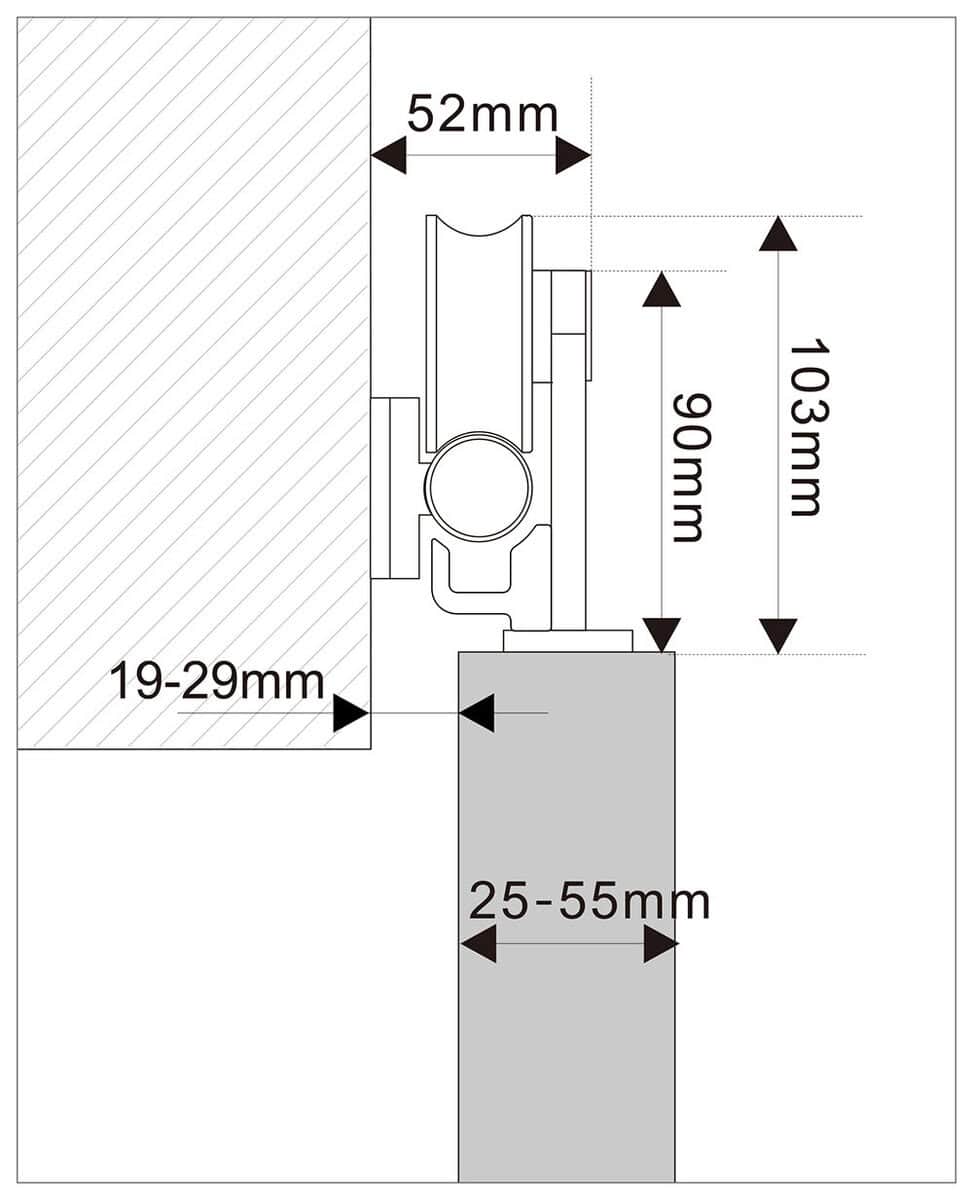

Dimension

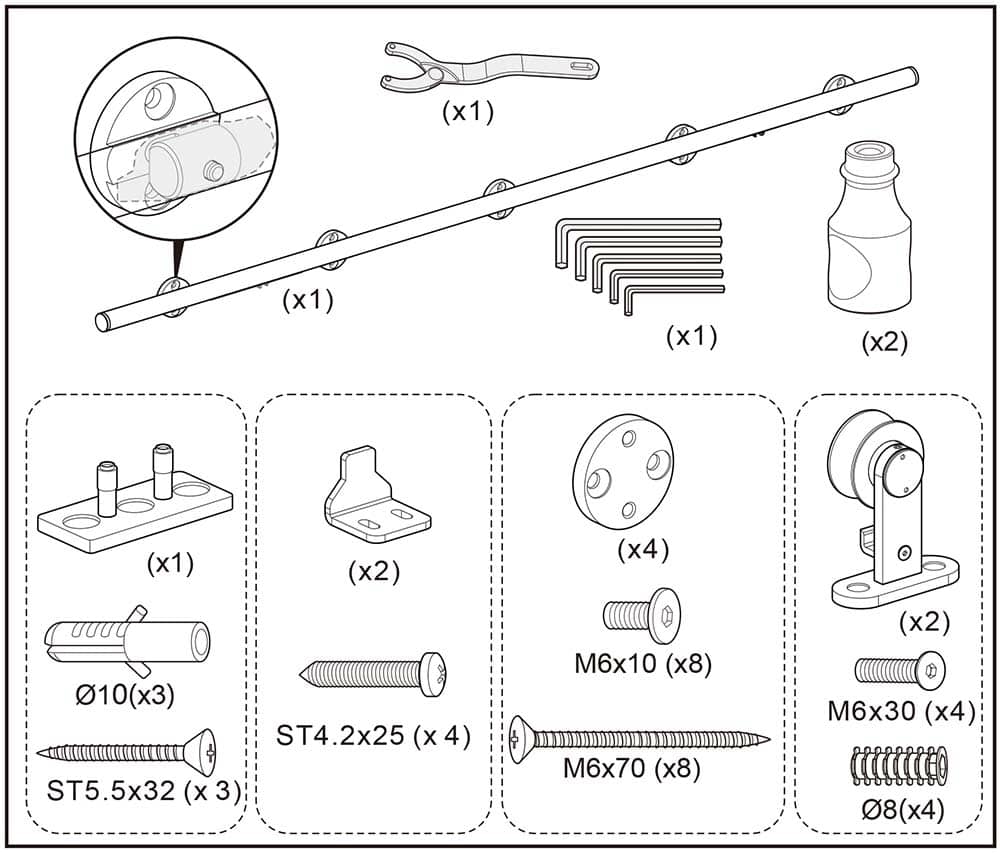

Part assembly

Product Package

Packing Method	Components into boxes and a complete set into a carton, around 78 cartons into a wooden crate.
Sales Unit Packing Type	Carton
Sales Unit Packing Size	204014570 mm
QTY/Pallet	78/PLT
Pallet Size	2120930107mm
Loading QTY	936sets/20GP, 1872sets/40GP
