Close-up of a modern sliding barn door with Stainless Steel Sliding Barn Door Hardware, Top Mounted mounted on a gray wall.

Face mounted stainless steel sliding barn door hardware

Sliding Bathroom Door Hardware, Face Mounted, Stainless Steel

Discover our face mounted stainless steel sliding barn door hardware, a perfect solution for sliding bathroom door hardware in residential and commercial settings.

Model NO.:	YMXT-YG48
Ref.NO.:	150101-0135
Brief Descritpion:	Face-mounted stainless steel sliding barn door hardware
Position:	For interior door use
Application:	Residential & Commercial
Main Material:	SS304
Surface Finish:	Satin
Rail Profile Size:	diameter 25mm
Rail Length:	1830mm(72inch), 2000mm(78-3/4inch), 2134mm(84inch), 2438mm(96inch)
Max Loading:	100kg(220LBS)
Working Cycles:	100000cycles
For Door Type:	Wooden doors, Metal frame doors
For Door Thickness:	35mm(1 1/4inch) to 45mm(1-3/4inch)
Soft Closing:	Optional

Details

Our sliding bathroom door hardware is made from premium SS304 steel, guaranteeing sturdiness and dependability. Thanks to its silky surface treatment, any interior door will look more elegant and sophisticated.

Also, the rail profile can be customized to meet your unique needs and is available in a variety of lengths, including 1830mm (72in), 2000mm (78-3/4in), 2134mm (84in), and 2438mm (96in).

Our sliding bathroom door hardware is made to accommodate doors with a thickness ranging from 35mm (1 1/4in) to 45mm (1-3/4in) and has a maximum weight capacity of 100kg (220 lbs).

And it has a working cycle of 100,000 cycles. Besides, you can upgrade to the soft-closing feature, improving your experience.

Overall, our sliding bathroom door hardware provides an inside door solution that is room-saving, fashionable, and practical. Its timeless style melds beautifully with home decor, boosting the room’s overall attractiveness.

Please contact us immediately if you have any questions about this excellent product or how it might help your wholesale business.

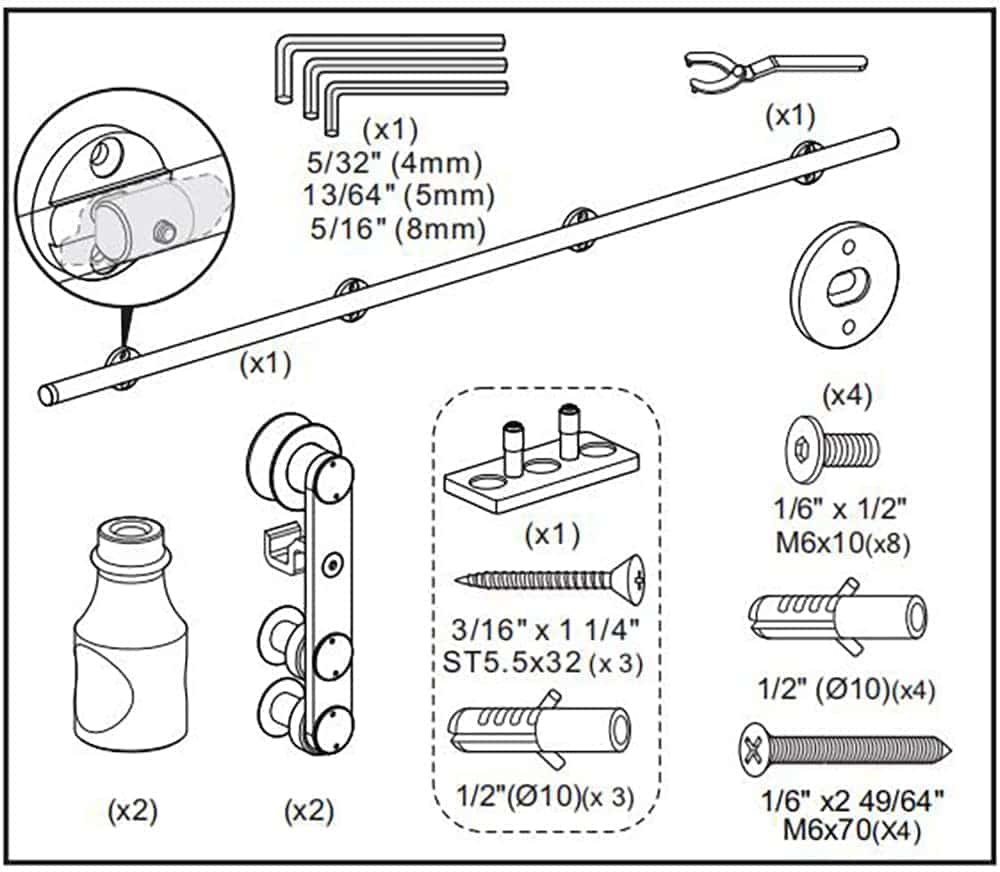

Part assembly

Product Package

Packing Method	Components into boxes and a complete set into a carton, around 72sets cartons into a wooden crate.
Sales Unit Packing Type	Carton
Sales Unit Packing Size	2040x130x75mm
QTY/Pallet	72sets/PLT
Pallet size	21309001000mm
Loading QTY	864sets for 1x20GP;2028sets for 1x40HQ
