Cabinet Sliding Door Hardware Kit, Face Mounted

Would you like to offer a unique and attractive solution for residential interiors? Look no further than the 150204-0020 cabinet sliding door hardware kit, face mounted, developed and exported by Tengyu, a leading developer of hanging sliding doors in China.



Model NO.: YMXT-CG02
Ref.NO.: 150204-0020
Brief Descritpion: Mini face mounted sliding hardware for cabinet
Position: For interior door use
Application: Residential use
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile Size: 25x3mm
Rail Length: 1830mm(72inch)
Max Loading: 25 kg(11 LBS)
Working Cycles: 50000cycles
For Door Type: Wooden doors
For Door Thickness: 25mm(1inch) to 30mm(1-1/5inch)
Soft Closing: Optional

Details

Crafted from high-quality carbon steel with a sleek black powder coating finish, this cabinet sliding door hardware kit is designed to support wooden doors with a thickness of 25mm to 30mm (1-1/5 inches).

Featuring a rail length of 1830mm (72 inches) and a maximum loading capacity of 25kg (11 lbs), our cabinet sliding door hardware kit is built to last with a working cycle of 50,000. And its optional soft closing feature ensures a smooth and quiet operation, enhancing user experience and safety.

It also perfectly complements the American Practical Unique Mini Solid Wooden Interior Sliding Barn Door, adding warmth and charm to any cupboard or interior space.

Additionally, with the increasing popularity of sliding barn doors in various decor styles, such as rustic, industrial, Nordic, and modern, this cabinet sliding door hardware kit is an excellent choice for homeowners looking to add a touch of uniqueness to their homes.

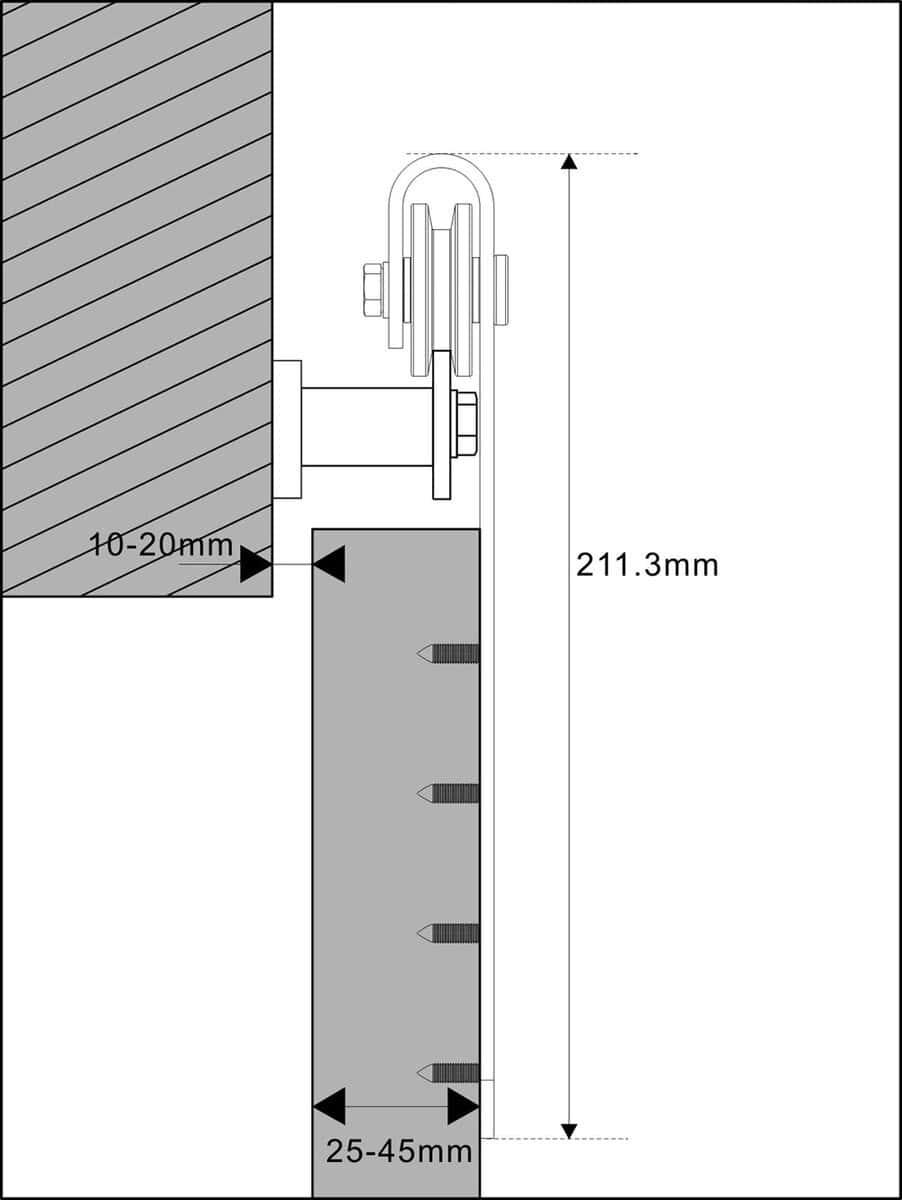

Dimension

Dimension

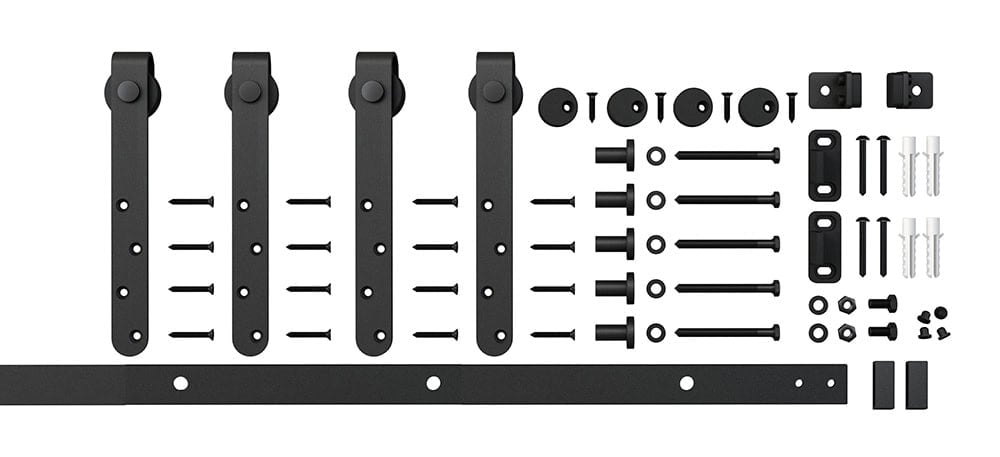

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton, around 156 or 216 sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1870x75x50mm
QTY/Pallet 156 or 216 sets/PLT
Pallet Size 198x111x85cm or 198x111x112cm
Loading QTY 2160sets for 1x20GP; 4680 sets for 1x40HQ
