Mini Sliding Barn Door Hardware for Cabinet

The 150701-0004 mini sliding barn door hardware for cabinet by Tengyu, China’s renowned developer and exporter of hanging sliding doors. This distinct product provides a stylish, high-quality, versatile option for residential and commercial environments.



Model NO.: YMXT-CG22
Ref.NO.: 150701-0004
Brief Descritpion: Mini sliding barn door system for cabinet
Position: For interior door use
Application: Both residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile Size: 25x3mm
Rail Length: 1219mm (48inch) or to be customized
Max Loading: 40kg(88LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors
For Door Thickness: 25mm(1inch)
Soft Closing: Optional

Details

Crafted explicitly for interior doors, our mini sliding barn door hardware showcases a space-efficient sliding opening feature, adding rustic and contemporary charm to any room. And barn doors have been reimagined for interior use with a refined design, making them a sought-after choice for various decor styles such as rustic, industrial, Nordic, and modern.

This mini sliding barn door hardware is made of robust carbon steel, finished with a sleek black powder coating, and boasts a remarkable working cycle of 100,000 cycles. Engineered for wooden doors and designed to accommodate door thicknesses of 25mm (1 inch), it perfectly balances form and function. Additionally, the soft closing feature, available as an option, enhances the convenience and functionality of this exceptional product.

Featuring a rail profile size of 25x3mm and a customizable rail length of 1219mm (48 inches), the mini sliding barn door hardware ensures a stable and smooth sliding experience. Its max loading capacity of 40kg (88 lbs) supports various cabinet door sizes and weights.

Thus, by providing this unique solution, you can help transform interiors with a harmonious fusion of rustic allure and modern sophistication. Contact us today!

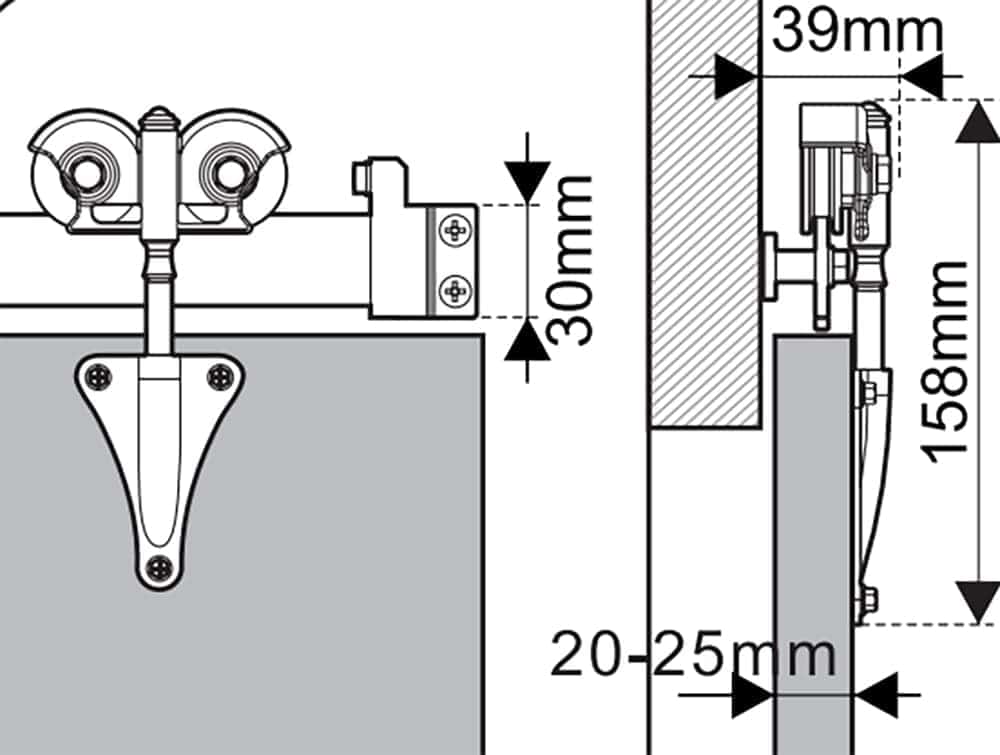

Dimension

Dimension

Part assembly

Part assembly


Product Package

Packing Method Components into boxes and a complete set into a carton around set cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1260x125x65mm
QTY/Pallet 84sets/PLT
Pallet Size 134x100x100cm
Loading QTY 1344sets for 1x20GP;2856sets for 1x40HQ
