Mini Barn Door Hardware Kit, for Cabinet, Face Mounting Style

For small TV stands, wardrobe cabinets, and mini doors, the face-mounting style mini barn door hardware kit for cabinet is the ideal solution. With this adaptable product, you can offer an innovative and helpful option that accommodates residential and commercial settings.


Model NO.: YMXT-CG04
Ref.NO.: 150204-0664
Brief Descritpion: Mini face mounting style sliding barn door system for cabinet
Position: For small TV stands, wardrobe cabinets, mini doors
Application: Both residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating

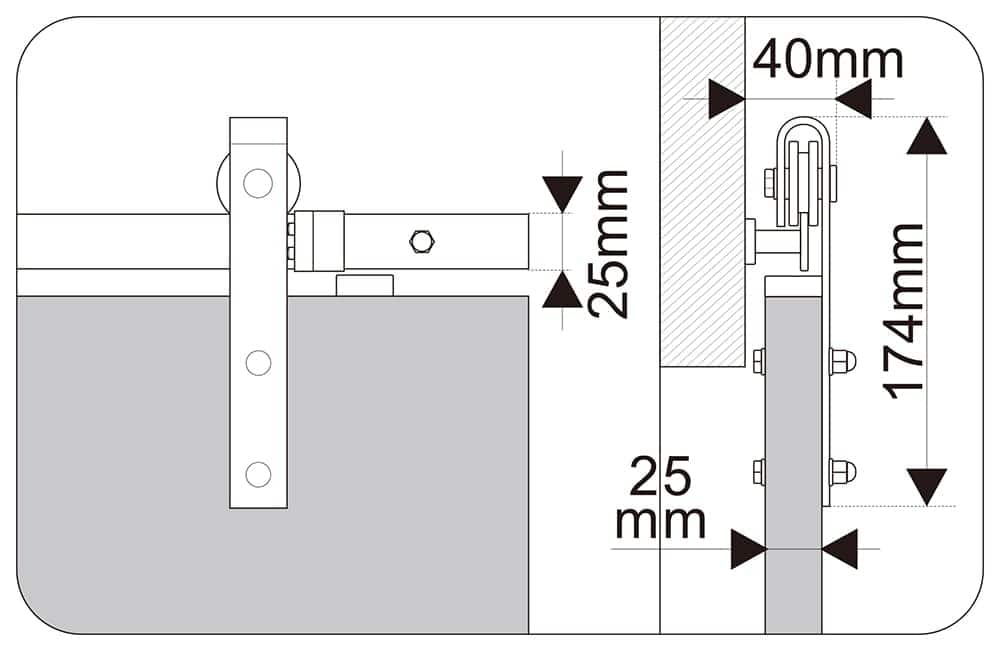

Rail Profile Size: 25x3mm
Rail Length: 2000mm (6.6FT) or to be customized
Max Loading: 40kg(88LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors
For Door Thickness: 25mm(1inch)
Soft Closing: Optional


This mini barn door hardware kit has a sleek black powder coating over strong carbon steel to provide durability and a striking appearance.

A stable and seamless sliding experience is guaranteed by the 25x3mm rail profile and a rail length that can be customized up to 2000mm (6.6FT). With a 40kg maximum loading capacity,  it can also support a variety of wooden cabinet doors (88 lbs).

Our mini barn door hardware kit includes an optional soft closing mechanism for added user convenience and is designed to work with 25mm (1 inch) thick doors. And it is easy to achieve the desired aesthetic thanks to the decorative bent strap’s modern, rustic appeal created by the matte black finish and finish.

Additionally, its various track lengths are appropriate for single or double mini doors up to 12″ in width. This versatile mini barn door hardware kit offers an ideal blend of style and functionality with its space-saving sliding opening design and compatibility with a wide range of applications.

Hence, by incorporating this unique and high-quality product into your range, you can assist in transforming interior spaces with a mix of rustic allure and modern design.

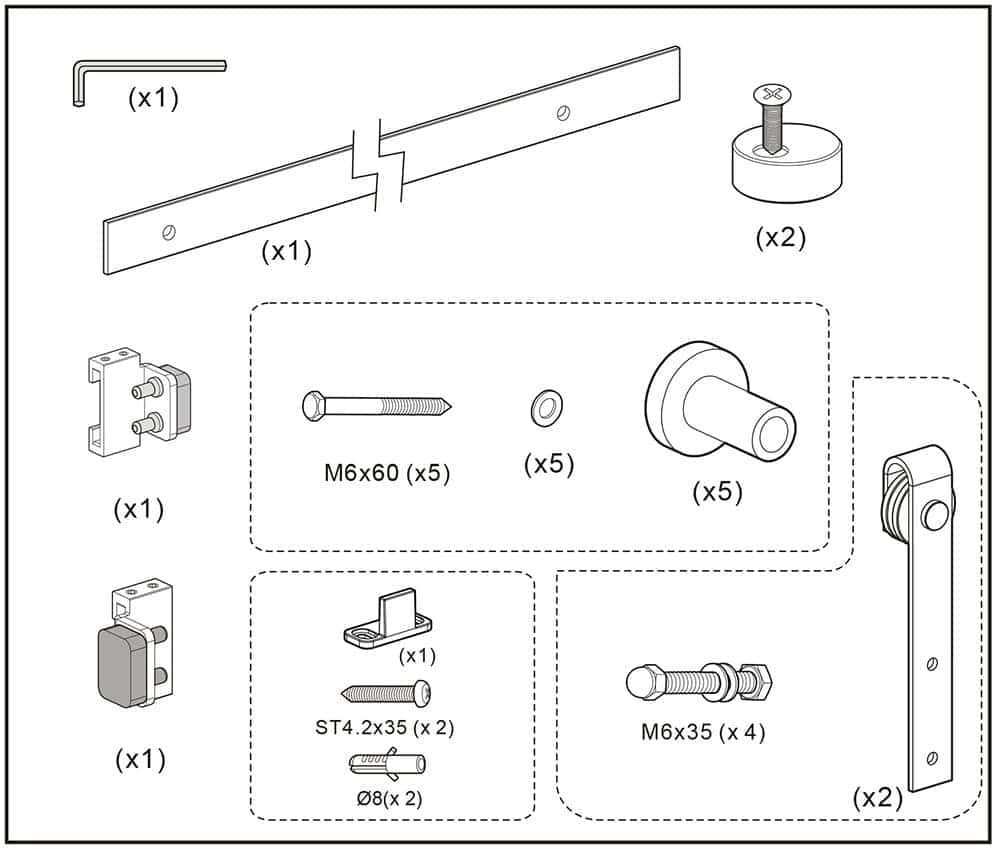

Part assembly

Part assembly

Product Package

Packing Method A complete set into a carton, around 130 sets onto a pallet.
Sales Unit Packing Type Carton
Sales Unit Packing Size 2040*70*50MM
QTY/Pallet 130 sets/PLT
Pallet Size 2060*1040*700MM
Loading QTY 1950 sets for 1x20GP;4290 sets for 1x40GP;5148 SETS FOR 1×40’HQ
