Cabinet Sliding Door Hardware, Top Mounting

A mini top mounting style sliding barn door system designed specifically for cabinets, model number 150204-1593 cabinet sliding door hardware. This ground-breaking item provides the ideal fusion of functionality, elegance, and adaptability, making it the perfect option for offering a distinctive solution for residential and commercial spaces.


Model NO.: YMXT-CG01
Ref.NO.: 150204-1593
Brief Descritpion: Mini top mounting style sliding barn door system for cabinet
Position: For interior door use
Application: Both Residential and commercial use
Main Material: Carbon steel
Surface Finish: Black powder coating
Rail Profile Size: 2000*25*3mm
Rail Length: 2000mm(78inch)
Max Loading: 25kgs(55lbs)
Working Cycles: 100,000cycles
For Door Type: Wooden doors
For Door thickness: 20-25mm(25/32in to 63/64in)
Soft Closing: Optional


This cabinet sliding door hardware, which is intended for internal doors, adds a touch of rustic and modern style to any area while providing a space-saving sliding opening mechanism. It is a seamless addition to any cabinet.

Besides, the barn door, originally used as a warehouse entrance on farms, has been upgraded and modified for interior usage, making it a popular option for various decor types, including rustic, industrial, Nordic, and modern.

Our cabinet sliding door hardware is made to last, with a working cycle of 100,000 cycles and a stylish black powder finish. It is made of tough carbon steel. It is also made with both form and function in mind, working with wooden doors and supporting door thicknesses of 20 to 25 mm. The optional soft closing feature adds an extra layer of convenience and functionality to this already amazing product.

In addition to its robust design, it features a rail profile size of 2000253mm and a rail length of 2000mm (78 inches), providing a stable and smooth sliding experience. With a max loading capacity of 25kgs (55lbs), it is capable of supporting a wide range of cabinet door sizes and weights.

Elevate your product offerings with our cabinet sliding door hardware, and help transform interior spaces with a blend of rustic charm and modern design.

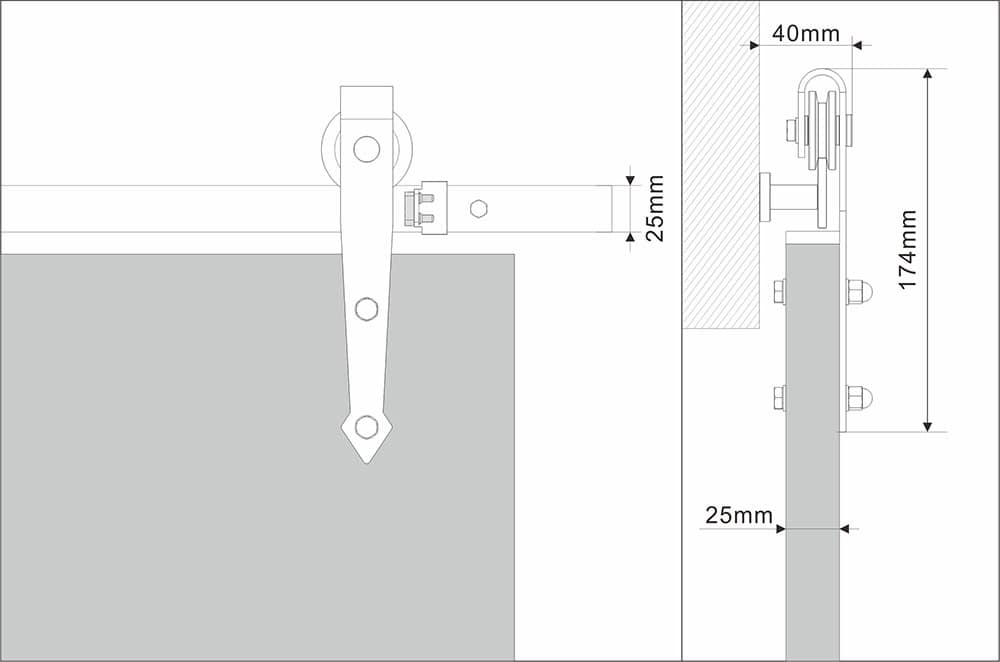

Part assembly

Part assembly

Product Package

Packing Method Components into boxes and a complete set into a carton, around 98sets cartons into a wooden crate.
Sales Unit Packing Type Carton
Sales Unit Packing Size 1060*120*55mm
QTY/Pallet 98sets/PLT
Pallet Size 1140x940x980mm
Loading QTY 1960sets for 1x20GP;5880sets for 1x40HQ
