Sliding Cabinet Door Hardware, Mini Top Mounting Style

Elevate your wholesale offerings with the 150204-0860 rolling sliding cabinet door hardware, a versatile and stylish mini top mounting solution for residential and commercial interiors. This durable and space-saving hardware adds a modern, rustic touch to any space.

Model NO.: YMXT-CG21
Ref.NO.: 150204-0860
Brief Descritpion: Mini top mounting style rolling barn door hardware for cabinet
Position: For interior door use
Application: Both residential and commercial use
Main Material: Aluminum & Steel
Surface Finish: Black powder coating
Rail Shape: C-shape
Rail Length: 915mm (36inch) or to be customized
Max Loading: 40kg(88LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors
For Door Thickness: 25mm(1inch)

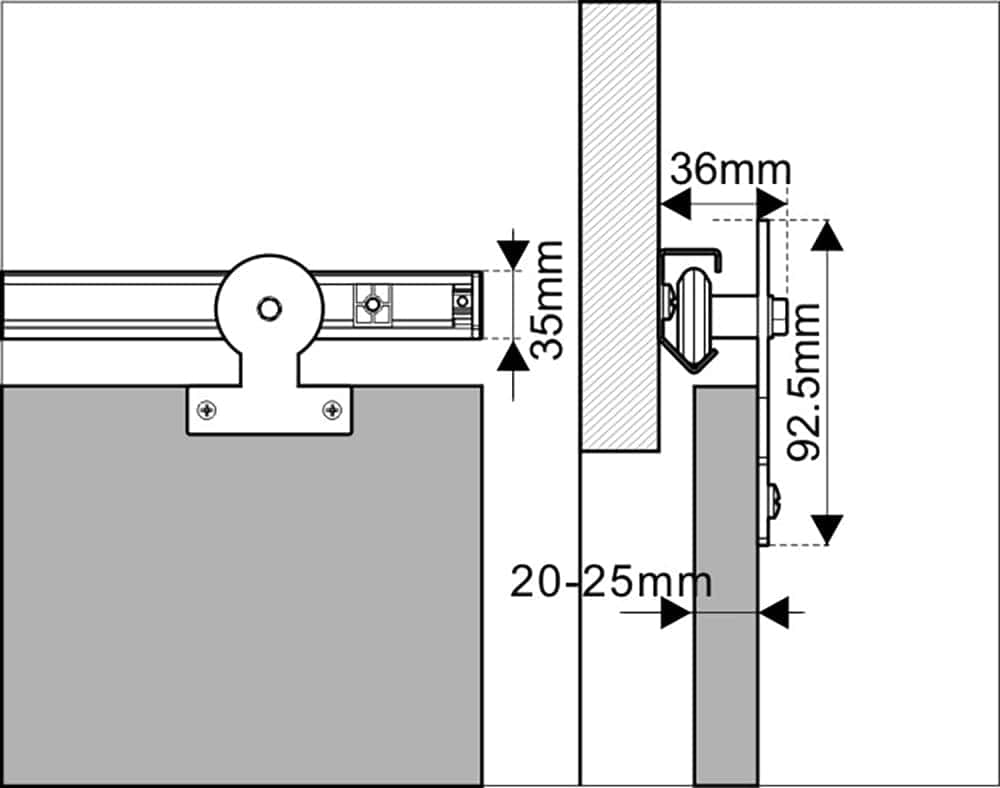

Our sliding cabinet door hardware is designed for wooden doors with a thickness of 25mm (1 inch) and features a C-shaped rail with a black powder-coated finish.

Boasting a rail length of 915mm (36 inches) or customizable options, it can support a maximum loading capacity of 40kg (88 lbs) and withstand up to 100,000 working cycles, ensuring durability and long-lasting performance.

Moreover, sliding barn doors have gained global popularity among households thanks to their space-saving design and unique appeal that complements various decor styles, such as rustic, industrial, Nordic, and modern. With their origins in warehouses and farm buildings, these doors blend rustic charm with modern aesthetics, making them a versatile choice for today’s homes.

In short, elevate your wholesale offerings with this innovative and stylish rolling sliding cabinet door hardware, blending form and function perfectly.

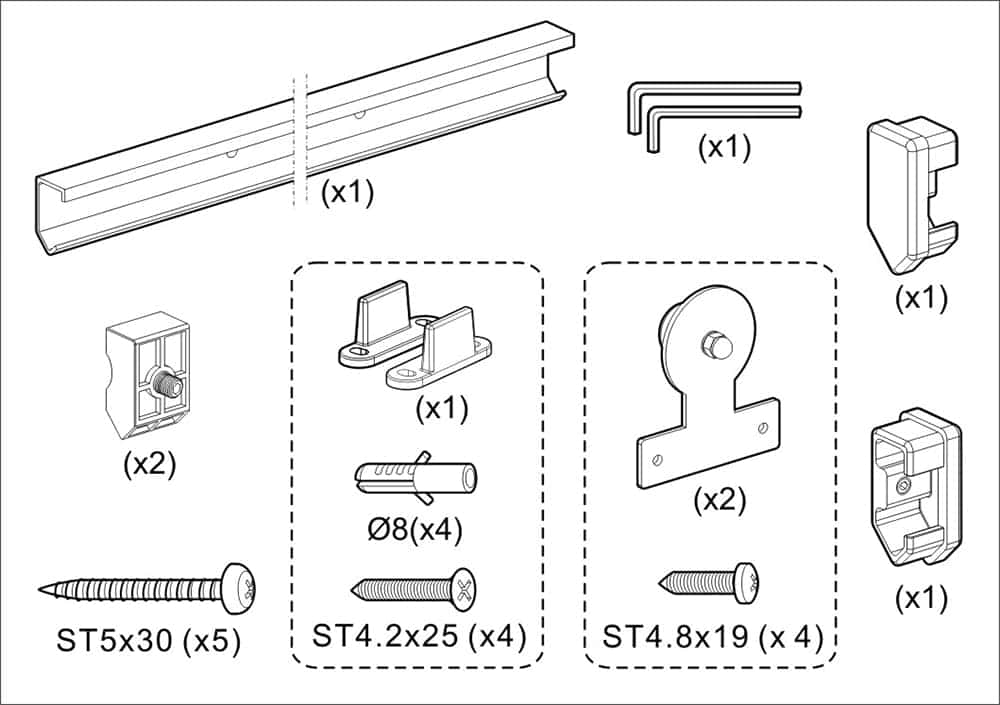

Part assembly

Part assembly

Product Package

Packing Method A complete set into a carton, around 96 sets onto a pallet.
Sales Unit Packing Type Carton
Sales Unit Packing Size 960x135x70mm
QTY/Pallet 96sets/PLT
Pallet Size 110x100x100cm
Loading QTY 1960sets for 1x20GP;4224sets for 1x40HQ
