150305-4332 Pocket Door Track and Hardware Sets

Model NO.: YMXT-XC39
Ref.NO.: 150305-4332
Brief Descritpion: Pocket door track and hardware sets
Position: For interior door use
Application: Both residential and commercial use
Main Material: Aluminum, Carbon steel
Surface Finish: Anodization
Rail Profile Size: 45x3mm
Rail Length: 1746mm(68.5inch)
Max Loading: 100kg(220LBS)
Working Cycles: 100000cycles
For Door Type: Wooden doors, Metal frame doors
For Door Thickness: 25mm(1inch) to 45mm(1-3/4inch)
Soft Closing: Optional

Details

More Introduction

Sliding pocket door systerm. Top hung pocket door hardware with solid nylon wheels. Self adjusting floor brackets,dry wall screws and jamb screws are included. Less than 5lbs force is required to move the door. Anti-jump three wheel hangers with high quality ball bearing insdie allow smooth and quiet door operation. Quick release locking tab of the door clamp fixing could make remove the door without tearing apart the wall.

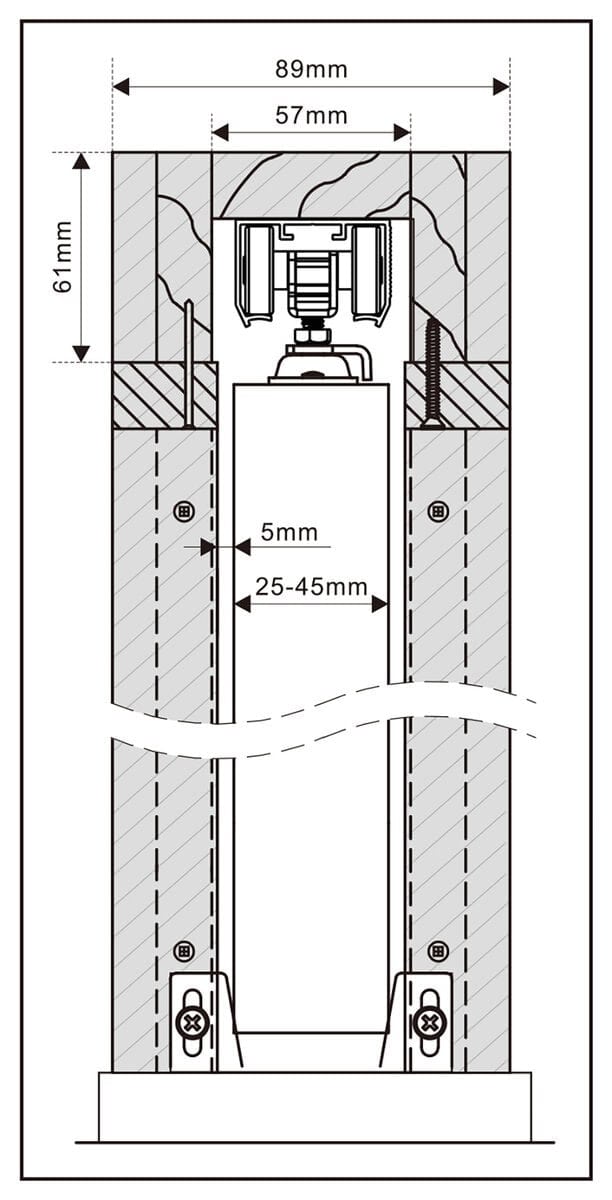

Dimension

Dimension

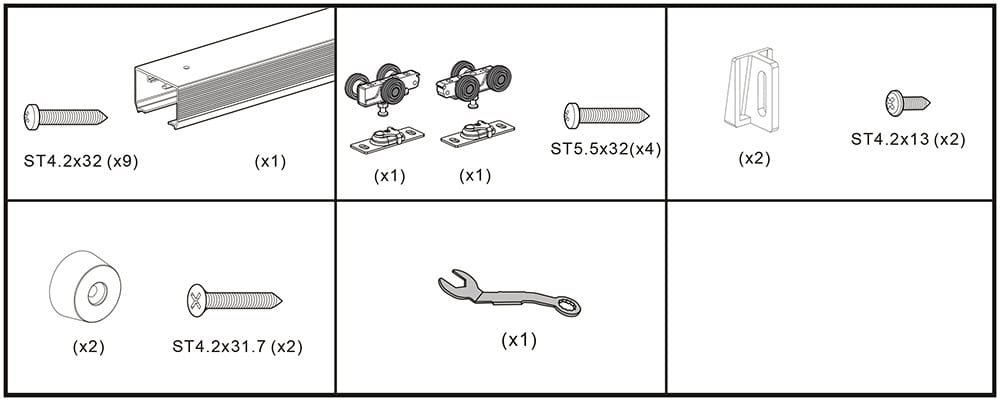

Part assembly

Part assembly


Product Package

Packing Method Each set shink wrapped completly, around 225 sets into a wooden crate.
Sales Unit Packing Type Shrink wrapped
Sales Unit Packing Size 1750x550x650mm
QTY/Pallet 225/PLT
Pallet Size 1750*825*825mm
Loading QTY 2700/20GP, 5400/40GP
